Allied Telesis 10 / 100 FO PCIe AT-2712FX / SC
 Allied Telesis 10 / 100 FO PCIe AT-2712FX / SC PN kód: AT-2712FX/SC

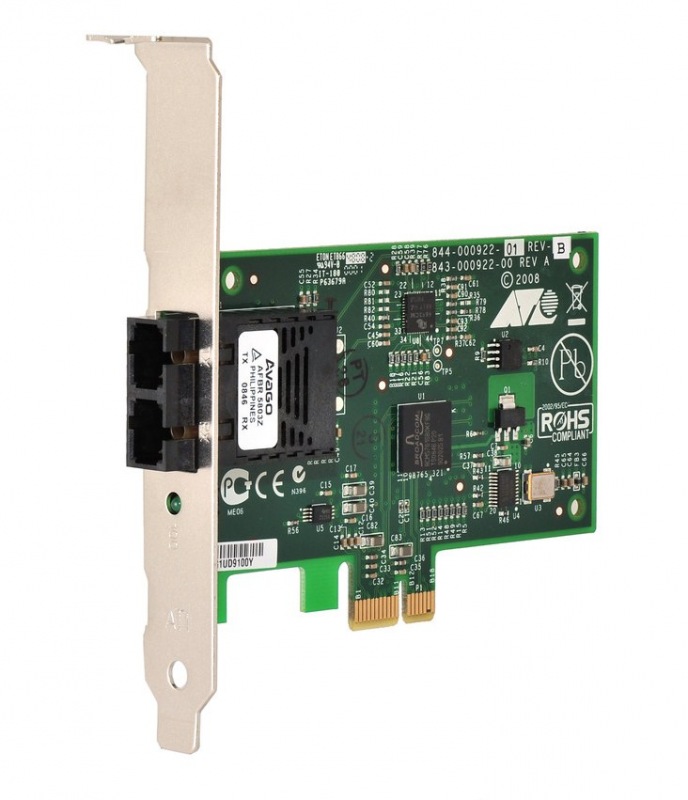

AT-2712FX/ SC-001Secure, PCI-e (x1) Fast Ethernet Fiber (SC) Adapter, includes both standard and low profile brackets; single pack
OVERVIEW The AT-2712FX Network Interface Card is an ideal fit for fiber to the desktop networks that depend on secure and reliable systems. With a small form factor PCIe x 1 Bus the AT-2712FX is an ideal fit for government, education or other networks dependent on highly secure capabilities. KEY FEATURES • Advanced centralized power management • Secure data transmission • NDIS 6 IPSec task offload compliant (Vista logo compliant) • 32 security associations • DASH manageability compliant with v1.1 as defined by the desktop and mobile workgroup • IPv4 and IPv6 Large Send Offload and Checksum Offload (LSO/ TCO) • Wake-on-LAN (WoL) support, meeting ACPI requirements (enabled by default, utility to disable available in firmware) • Statistics for SNMP MIB II • Standard and low-profile brackets provided SPECIFICATIONS Bus Type • PCIe x 1 v2.0 Interface Standards • IEEE 802.3u 100FX • IEEE 802.3x Flow control auto-negotiation • DASH v1.1.0 Data Encryption • IPSec task offload v2 • 32 Security Associations (SA) • AH transport for both IPv4 and IPv6 (AES-GMAC) • ESP transport for both IPv4 and IPv6 (AES-GMAC) (AES-GCM) Drivers • Windows 7, 64-bit • Windows 7, 32-bit • Windows Vista, 64-bit • Windows Vista, 32-bit • Windows XP, 32-bit • Windows 2003 • Linux Optical Specifications • Output Optical Power: -19 (Min) -14 (Max) dBM • Optical Receive Power: -33.9 (Min) -14 (Max) dBM • Wavelength: 1310 nm Connectors • SC, MT Status Indicators LED • On: link up • Off: link down • Blink: activity Power • Power consumption: 760ma • Signaling voltage: 3.3V Environmental Specifications • Operating temperature: 0oC to 45oC • Relative humidity: 5% to 90% (non-condensing) • Storage temperature: -20oC to 70oC • Operating/ storage altitude: Up to 3, 048 m • MTBF: 3, 600, 000 hr Physical Characteristics • Dimensions (W x H): 10.7 cm x 5.6 cm • Weight: 40 g Dokumenty: Najpredávanejší tovar s podobnou cenou: Sieťové LAN, Wi-Fi prvky - Sieťové karty s podobnou cenou ± 20%Cenovo podobné Allied Telesis 10 / 100 FO PCIe AT-2712FX / SC[najžiadanejšie 1]Recenzie Allied Telesis 10Allied Telesis 10 / 100 FO PCIe AT-2712FX / SCZaradenie tovaru v katalógu:Ďalšie podkategórie v skupine Sieťové LAN, Wi-Fi prvky:
| ||||||||||||||||||
