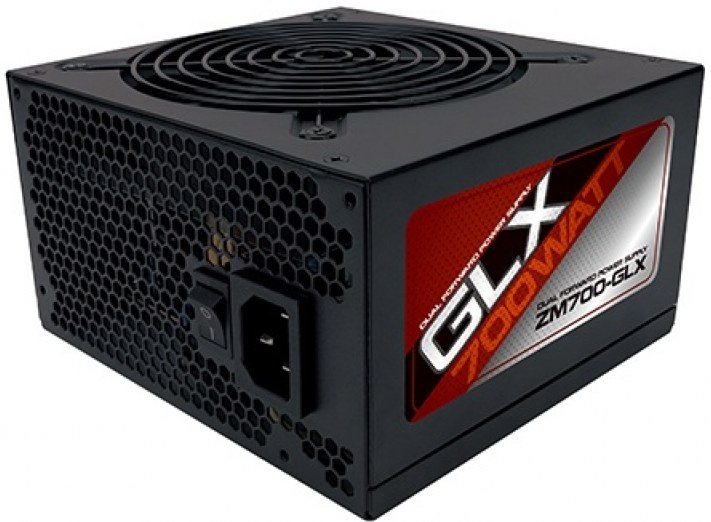

Zalman ZM700-GLX, 700W, 80+ | ZM700-GLX

AC Input Range Voltage 115 ~ 230VAC ± 10% Vout Output Load Rating Combined

Power
Frequency 50 ~ 60Hz ± 3 Imin Imax Ipeak
AC Input Current
(Rated)

115VAC
10A +3.3V 0.1A 22A 130W 700W

230VAC
+5V 0.2A 22A
PFC Type Active PFC +12V 0.6A 52.5A 55A 630W
Power Factor Max 99%
-12V 0.0A 0.3A 3.6W
Inrush Current Limit
(@ Cold start at 25°C) 115VAC - +5VSB 0.0A 2.5A 3.5A 12.5W
230VAC Max 150A Ambient Temperature
Efficiency Max 87% @ 230VAC, Typical load Operation 0 ~ 40°C
DC Output
Voltage Regulations Vout Regulation Range At Full
Load Storage -20 ~ 70°C
+3.3VDC ±5% +3.14 ~ +3.47V Ambient Humidity
+5VDC ±5% +4.75 ~ +5.25V Operation 5% ~ 95%RH
+12VDC ±5% +11.4 ~ +12.6V Storage 5% ~ 95%RH
-12VDC ±10% -10.8 ~ -13.0V Protection Features
+5VSB ±5% +4.75 ~ +5.25V
DC Output
Ripple & Noise Vout Standard Range At Full
Load Over Voltage Protection(OVP)
+3.3VDC 50mV Under Voltage Protection(UVP)
+5VDC 50mV Short Circuit Protection(SCP)
+12VDC 120mV Over Power Protection(OPP)
-12VDC 120mV Rozmery 140(L) x 150(W) x 86(H) mm
+5VSB 50mV Weight 2.23kg (Full Package)
