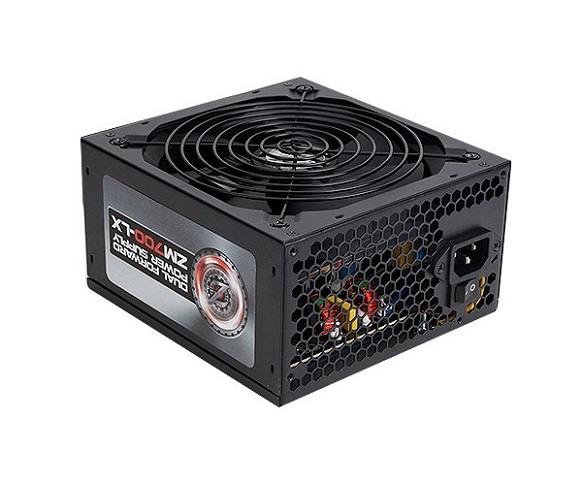

Zdroj Zalman ZM700-LX 700W 80+ ATX12V 2.3 , aPFC 14cm fan | ZM700-LX

Electrical & Physical Characteristics

AC Input Range Voltage 200 ~ 240VAC ± 10% Vout Output Load Rating Combined
Power
Frequency 50 ~ 60Hz ± 3 Imin Imax Ipeak
AC Input Current
(Rated) Voltage 200 ~ 240VAC +3.3V 0.1A 20A 140W 700W
Current 8A +5V 0.2A 20A
PFC Type Active PFC +12V 0.1A 58A 60A 696W
Power Factor Max 99%
-12V 0.0A 0.3A 3.6W
Inrush Current Limit
(@ Cold start at 25°C) 115VAC - +5VSB 0.0A 2.5A 3.5A 12.5W
230VAC Max 100A Ambient Temperature
Efficiency Max 87% @ 230VAC, Typical load Operation 0 ~ 40°C
DC Output
Voltage Regulations Vout Regulation Range At Full
Load Storage -20 ~ 70°C
+3.3VDC ±5% +3.14 ~ +3.47V Ambient Humidity
+5VDC ±5% +4.75 ~ +5.25V Operation 5% ~ 95%RH
+12VDC ±5% +11.4 ~ +12.6V Storage 5% ~ 95%RH
-12VDC ±10% -10.8 ~ -13.0V Protection Features
+5VSB ±5% +4.75 ~ +5.25V Over Voltage Protection(OVP)
DC Output
Ripple & Noise Vout Standard Range At Full
Load Under Voltage Protection(UVP)
+3.3VDC 50mV
+5VDC 50mV Short Circuit Protection(SCP)
+12VDC 120mV Over Power Protection(OPP)
-12VDC 120mV Dimensions 157(L) x 150(W) x 86(H) mm
+5VSB 50mV Weight 2.2kg
