ASRock Z270M-ITX / ac | Z270M-ITX/ac

CPU - Supports 7th and 6th Generation Intel® CoreTM i7/i5/i3/Pentium®/Celeron® Processors (Socket 1151)

- Digi Power design
- 6 Power Phase design
Chipset Intel® Z270 Chipset
Memory - Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 3733+(OC)*/3600(OC)/3200(OC)/2933(OC)/2800(OC)/2400**/2133 non-ECC, un-buffered memory
Onboard Graphics Outputs - Three graphics output options: D-Sub, DVI-D and HDMI
- Supports Triple Monitor
- Supports HDMI s max. resolution až do 4K x 2K (4096x2160) @ 24Hz /(3840x2160) @ 30Hz
- Supports DVI-D s max. resolution až do 1920x1200 @ 60Hz
Maximum shared memory of 1024MB
PCI Slots - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)
Storage 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10,Intel Rapid Storage Technology 15 and Intel Smart Response Technology), NCQ,AHCI and Hot Plug*
If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
- 1 x Ultra M.2 Socket, supports type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module až do Gen3 x4 (32 Gb/s)**
** Supports Intel® OptaneTM Technology
** Supports NVMe SSD as boot disks

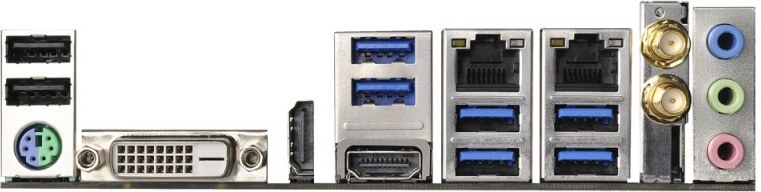

USB Rear Panel:
- 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 6 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
On Board:
- 1 x USB 2.0 Headers (Support 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x USB 3.0 Headers (Support 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
Audio - 7.1 CH HD Audio s Content Protection (Realtek ALC892 Audio Codec)
To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
- Premium Blu-ray Audio support
- Supports Surge Protection (ASRock Full Spike Protection)
- Nichicon Fine Gold Series Audio Caps
LAN Intel® I219-V Gigabit LAN
WiFi / Bluetooth Intel® 802.11ac WiFi Module
- Supports IEEE 802.11a/b/g/n/ac
- Supports Dual-Band (2.4/5 GHz)
- Supports high speed Bezdrôtová connections až do 433Mbps
- Supports Bluetooth 4.0 / 3.0 + High speed class II
Form Factor Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
