Firewall, 20xIPSec, 12xSSL(2), 6xGiga(2xWAN), 802.11a / n, 2xUSB, Fanless, WiFi Contr.-10A | USG60W-EU0101F

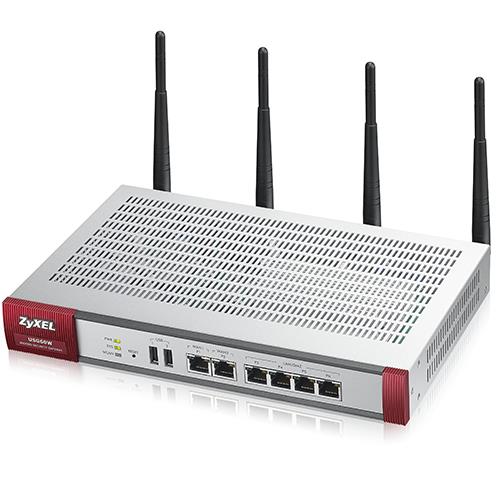

ZYWALLUSG60W Security Firewall, VPN: 20x IPSec/ 12x SSL (2 default ), 6x 1Gbps (4x LAN/ DMZ, 2x WAN, 802.11a/ n (300Mbps)), 2x USB, Fanless, Wireless Controller for až do 10 (default 2) NWA3000-N/ 5000-N series of APs, Optional: IDP, Antivir, Antispam, Content Filtering, rack mounted


Model USG60W
Hardware Specifications
10/ 100/ 1000 Mbps RJ-45 ports 4 x LAN/ DMZ, 2 x WAN

USB ports 2
Console port Yes (DB9)
Rack-mountable Yes
System Capacity & Performance*1
SPI firewall throughput (Mbps)*2 1
VPN throughput (Mbps)*3 180
IDP throughput (Mbps)*4 120
AV throughput (Mbps)*4 90
UTM throughput (AV and IDP)*4 90
Unlimited user licenses Yes
Max. TCP concurrent sessions*5 40
New TCP session rate 3
Max. UTM (AV & IDP) concurrent sessions*5 40
Max. concurrent IPsec VPN tunnels 20
Max. concurrent SSL VPN users 12
Included SSL VPN user no. 2
Customizable zones Yes
IPv6 support Yes
VLAN interface 16
WLAN Management
AP Controller (APC) ver. 1.0
Managed AP number (default/ max.) 2.10
Wireless Specifications
Standard compliance 802.11 a/ b/ g/ n
Wireless frequency Concurrent 2.4 & 5 GHz
Radio 2
SSID number 16
Maximum 24.3 dBm, 2 antennas
transmit power 25.8 dBm, 2 antennas
(Max. total 17 dBm, 2 antennas
channel) 25.6 dBm, 2 antennas
No. of antenna 2.4 GHz: 2T2R MIMO
5 GHz: 2T2R MIMO
(Detachable, SMA-R)
Antenna gain 3 dBi
Data rate 802.11 b/ g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 and 54 Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps
802.11n: až do 300 Mbps in MCS15 (40 MHz; GI = 400 ns)

Receive 2.4 GHz:
sensitivity 11 Mbps ? -87 dBm
54 Mbps ? -77 dBm
HT20 ? -71 dBm
HT40 ? -68 dBm
5 GHz:
54 Mbps ? -75 dBm
HT20, MCS15 ? -71 dBm
HT40, MCS15 ? -69 dBm
Key Software Features
Virtual Private Network (VPN) Yes (IPSec, SSL, L2TP over IPSec)
Firewall Yes
Anti-Virus (AV) Yes
Anti-spam Yes
Content Filtering (CF) Yes
Application intelligence and Yes
optimization
Intrusion Detection and Prevention Yes
(IDP)
Single Sign-On (SSO) Yes
Power Requirements
Power input 12 V DC, 3.0 A max.
Max. power consumption (watt) 28.0
Others
MTBF (hr) 497, 644
Physical Specifications
Item Rozmery (WxDxH)(mm/ in.) 272 x 186 x 36/
10.7 x 7.32 x 1.42
Item weight (kg/ lb.) 1.43/ 3.15
