Firew., 10xIPSec, 7xSSL(2), 4xGiga(1xWAN), 802.11a / n, 1xOPT, 1xUSB, Fanl., WiFi Cont.-10 | USG40W-EU0101F

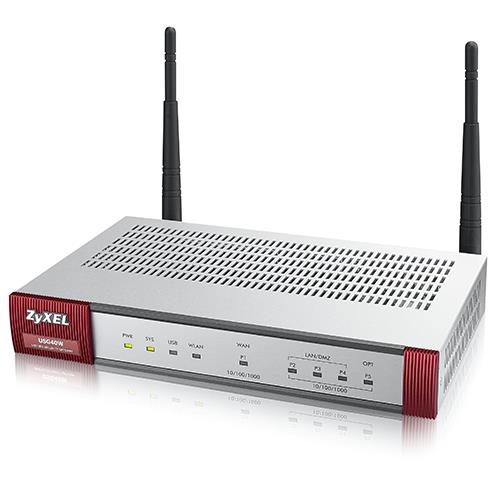

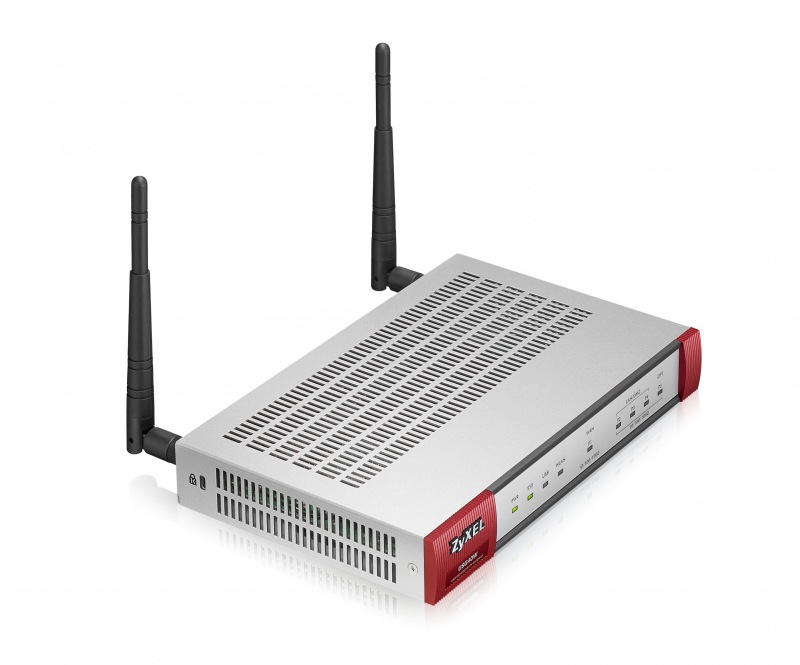

ZYWALLUSG40W Security Firewall, VPN: 10x IPSec/ 7x SSL (2 default ), 4x 1Gbps (3x LAN/ DMZ, 1x WAN, 802.11n (300Mbps)), 1x OPT, 1x USB, Fanless, Wireless Controller for až do 10 (default 2) NWA3000-N/ 5000-N series of APs, Optional: IDP, Antivir, Antispam, Content Filtering, no rack mount


Model USG40W
Hardware Specifications
10/ 100/ 1000 Mbps RJ-45 ports 3 x LAN/ DMZ,
1 x WAN, 1 x OPT
USB ports 1
Console port Yes (RJ-45)
Rack-mountable -
System Capacity & Performance*1
SPI firewall throughput (Mbps)*2 400
VPN throughput (Mbps)*3 100
IDP throughput (Mbps)*4 55
AV throughput (Mbps)*4 50
UTM throughput (AV and IDP)*4 50
Unlimited user licenses Yes
Max. TCP concurrent sessions*5 20
New TCP session rate 3
Max. UTM (AV & IDP) concurrent sessions*5 20
Max. concurrent IPsec VPN tunnels 10
Max. concurrent SSL VPN users 7
Included SSL VPN user no. 2
Customizable zones Yes
IPv6 support Yes
VLAN interface 8
WLAN Management
AP Controller (APC) ver. 1.0
Managed AP number (default/ max.) 2.10
Wireless Specifications
Standard compliance 802.11 b/ g/ n
Wireless frequency 2.4 GHz
Radio 1
SSID number 8
Maximum 24.3 dBm, 2 antennas
transmit power -
(Max. total 17 dBm, 2 antennas
channel) -
No. of antenna 2.4 GHz: 2T2R MIMO
(Detachable, SMA-R)

Antenna gain 3 dBi
Data rate 802.11 b/ g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 and 54 Mbps
802.11n: až do 300 Mbps in MCS15 (40 MHz; GI = 400 ns)



Receive 2.4 GHz:
sensitivity 11 Mbps ? -87 dBm
54 Mbps ? -77 dBm
HT20, MCS15 ? -71 dBm
HT40, MCS15 ? -68 dBm
-




Key Software Features
Virtual Private Network (VPN) Yes (IPSec, SSL, L2TP over IPSec)
Firewall Yes
Anti-Virus (AV) Yes
Anti-spam Yes
Content Filtering (CF) Yes
Application intelligence and Yes
optimization
Intrusion Detection and Prevention Yes
(IDP)
Single Sign-On (SSO) Yes
Power Requirements
Power input 12 V DC, 2.0 A max.
Max. power consumption (watt) 17.0
Others
MTBF (hr) 386, 931.7
Physical Specifications
Item Rozmery (WxDxH)(mm/ in.) 216 x 143 x 33/
8.50 x 5.63 x 1.30
Item weight (kg/ lb.) 0.91/ 2
