TP-Link TL-SG1016DE, switch, 16x,1Gb/s | TL-SG1016DE

PCkonfig.sk » Sieťové LAN, Wi-Fi prvky » Prepínače - switche » TP-LINK

TP-Link TL-SG1016DE, switch, 16x,1Gb/s

16-portový inteligentný switch s prenosovou rýchlosťou 1Gb/s
sieťový switch 16x LAN konektor, rýchlosť 1000 Mb/s napájenie kábel 230V, chladenie pasívne, rack 1U zobraziť ďalšie detaily

	Tovar aktuálne nie je možné objednať.
Do zostavy


Záruka 5 rokov	Kód: 340398
Výrobca:	TP-LINK

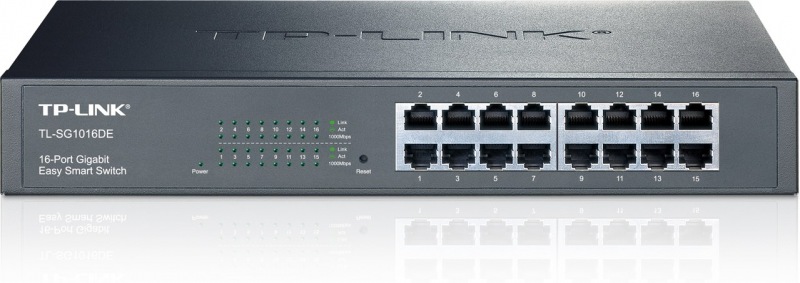

Obrázok TP-Link TL-SG1016DE - TL-SG1016DE

Popis a parametre
Podobné modely (5)
Recenzie (0)

TP-Link TL-SG1016DE, switch, 16x,1Gb/s

Výrobca: TP-LINK
PN kód: TL-SG1016DE

16-Port Gigabit Easy Smart Switch

Parametre

? typ zariadenia	Typ zariadenia:	sieťový switch
? prevedenie	Prevedenie:
? LAN porty RJ45 (výstup) Slúžia na pripojenie drôtovej siete Ethernet počítača alebo tlačiarni , slúž aj na zdieľanie pripojenia na Internet, alebo oboje.	LAN porty RJ45 (výstup):	16x LAN konektor
? rýchlosť LAN	Rýchlosť LAN:	1000 Mb/s
? napájanie	Napájanie:	napájenie kábel 230V
? chladenie	Chladenie:	pasívne
? podpora napájania PoE	Podpora napájania PoE:	nie
? manažovateľný	Manažovateľný:	nie
? uchytenie do racku	Uchytenie do racku:	rack 1U

zobraziť všetky parametre

TL-SG1016DE

OVERVIEW
The TL-SG1016DE 16-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network management. Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention and Cable Diagnostics features. To optimize traffic on your business network, TL-SG1016DE offers both port and tag based QoS to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, s its innovative energy-efficient technology, the TL-SG1016DE can save až do 40% of power consumption, making it an eco-friendly solution for your business network.

HARDWARE FEATURES
Standards and Protocols
• IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface
• 16 10/ 100/ 1000Mbps RJ45 Ports
• AUTO Negotiation/ AUTO MDI/ MDIX

Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/ TIA-568 100? STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/ TIA-568 100? STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/ TIA-568 100? STP (maximum 100m)

Rozmery (W X D X H)
• 294*180*44 mm

Fan Quantity
• Fanless

Power Supply
• 100-240VAC, 50/ 60Hz

PERFORMANCE
Switching Capacity
• 32Gbps

MAC Address Table
• 8K

Packet Buffer Memory
• 512KB

Packet Forwarding Rate
• 23.8Mpps

Jumbo Frame
• 10240Bytes

SOFTWARE FEATURES
Quality of Service
• Support Port Based/ 802.1p Based priority
• Support 4 priority queues
• Rate Limit
• Storm Control

L2 Features
• IGMP Snooping
• Link Aggregation
• Port Mirroring
• Cable Diagnostics
• Loop Prevention

VLAN
• Supports až do 32 VLANs simultaneously (out of 4K VLAN IDs)
• MTU/ Port/ Tag VLAN

Transmission Method
• Store-And-Forward

OTHERS
Certification
• FCC, CE

Package Contents

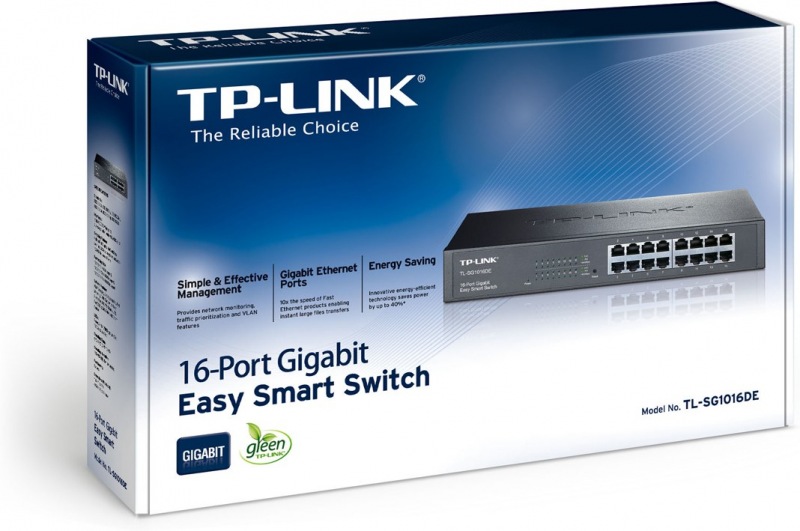

• TL-SG1016DE, Power Cord, Installation Guide, Resource CD, Rackmount Kit, Rubber Feet

System Requirements
• Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux.

Environment
• Operating Temperature: 0?~40?
• Storage Temperature: -40?~70?
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
