Micronet Giga SM Media Converter SC 20km SP364-20 | SP364-20

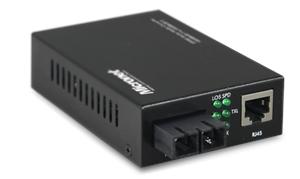

Gigabit Media Converter SP364-20


OVERVIEW
SP364 series Gigabit media converters extends legacy twisted-pair network via fiber-optic cable s no performance degradation, and provides higher bandwidth demand. The multi-mode fiber model (SP364) supports wiring distance až do 550m, suitable for connection extension in backbone. The single-mode fiber mode (SP364-10/ 20) has the capability až do 20km, suitable for wiring over longer distance.

• Compliant s IEEE802.3ab 1000BASE-T standards for TP connection and IEEE802.3z 1000BASE-SX/ LX standards for Fiber connection
• Extend the Ethernet distance by converting TP to Fiber-Optic
• Provide 1000Mbps port s RJ-45 connector
• Provide Fiber-optic port s SC connector
• Support auto uplink (auto MDI/ MDI-X) in TP port, no more cross-over cable
• Extend fiber-optic distance až do 20km s single-mode fiber
• Mountable in SP382A converter chassis

SPECIFICATION
Standard
• IEEE802.3ab, 1000BASE-T;IEEE802.3ab, 1000BASE-T IEEE802.3z, 1000BASE-SX;IEEE802.3z, 1000BASE-LX

Interface
• 1 x 10/ 100/ 1000M port, RJ-45 1 x 1000M fiber port, SC connector

Environment
• Operating temperature: 0 ~ 40

Power
• DC 5V, 2A External power supply

Rozmery, W x D x H
• 94 x 70.3 x 26.5 mm

Emission
• FCC Class A, CE

Dokumenty:

• Odkaz na Micronet [url]
• Datasheet [pdf]
