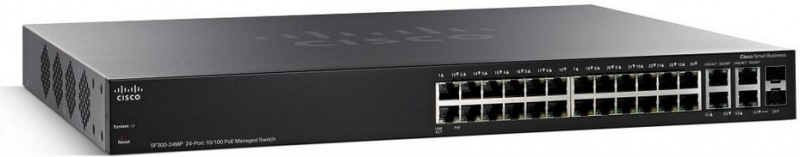

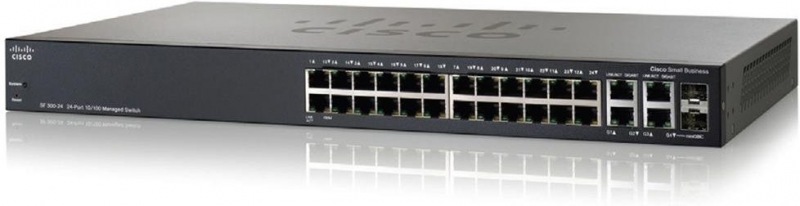

Cisco SF300-24MP, switch, PoE
Cisco SF300-24MP, switch, PoEOVERVIEW
Parametre
The Cisco 300 Series is broad portfolio of fixed-configuration managed Ethernet switches. Models are available s 8 to 48 ports of Fast Ethernet and 10 to 52 ports of Gigabit Ethernet connectivity, providing optimal flexibility to create exactly the right network foundation for your business. However, unlike other small business switching solutions that provide managed network capabilities only in the costliest models, all Cisco 300 Series Switches support the advanced security management capabilities and network features you need to support business-class data, voice, security, and Bezdrôtová technologies. At the same time, these switches are simple to deploy and configure, allowing you to take advantage of the managed network services your business needs. SPECIFICATIONS Switching Capacity in Gigabits per Second (Gbps) · 12.8 Jumbo frames · Frame sizes až do 9K (9216) bytes supported on 10/ 100 and Gigabit interfaces MAC table · až do16K (16384) MAC addresses Power Dedicated to PoE · 375W (PoE+ supported) Number of Ports That Support PoE · 24 Power Savings Mode · Energy Detect Short Reach System Power Consumption · 110V=37.7W · 220V=38.0W Power Consumption: Case (s PoE) · 110V=441W · 220V=431W Heat Dissipation Worst Case (BTU/ hr) · 1504.69 Total System Ports · 24 Fast Ethernet + 4 Gigabit Ethernet RJ-45 Ports · 24 Fast Ethernet + 2 Gigabit Ethernet Combo Ports (RJ-45 + SFP) · 2 Gigabit Ethernet combo Buttons · Reset button Cabling type · Unshielded twisted pair (UTP) Category 5 or better for 10BASE-T/ 100BASE-TX; UTP Category 5 Ethernet or better for 1000BASE-T LEDs · System, Link/ Act, PoE, Speed, LED power saving option Flash · 16 MB CPU memory · 128 MB Packet Buffer · 8 Mb Rozmery (W x H x D) · 440 x 44.45 x 350 mm Unit weight · 5.08 kg Power · 100-240V 50-60 Hz, internal, universal Certification · UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A Operating temperature · 0° to 40°C Storage temperature · -20° to 70°C Operating humidity · 10% to 90%, relative, noncondensing Storage humidity · 10% to 90%, relative, noncondensing FAN (Number) · 4 pcs Acoustic Noise · 41.6dB at 30C 53.9dB at 50C MTBF @40C (hr) · 135, 669.9 (at 50C) Package Contents · Cisco 300-series Ethernet Switch · Power Cord (Power Adapter for Desktop SKUs) · Mounting Kit included in all SKUs, including Desktop models · Serial Cable · CD-ROM s user documentation (PDF) included · Quick Start Guide Minimum Requirements · Web browser: Mozilla Firefox version 8 or later; Microsoft Internet Explorer version 7 or later, Safari, Chrome · Category 5 Ethernet network cable · TCP/ IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in the network Dokumenty: Najpredávanejší tovar s podobnou cenou: Sieťové LAN, Wi-Fi prvky - Prepínače - switche s podobnou cenou ± 20%Cenovo podobné Cisco SF300-24MP, switch, PoE[najžiadanejšie 5]
