D-Link GO-SW-8E, switch, 8x | GO-SW-8E/E

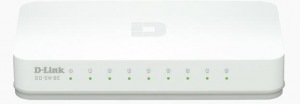

D-Link GO-SW-8E

8-Port Fast Ethernet Easy Desktop Switch

OVERVIEW
The dlinkgo GO-SW-8E 8-Port Fast Ethernet Easy Desktop Switch allows you to quickly set up a fast, reliable, and efficient wired network in your home or office. The GO-SW-8E is an unmanaged 10/ 100Mbps switch designed to enhance small workgroup performance while providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands. Connect the GO-SW-8E to multiple computers to share files and folders, or connect it to a router to share an Internet connection.

SPECIFICATIONS
Device Interfaces
• Eight 10/ 100 Fast Ethernet LAN ports

Advanced Features
• Green Ethernet
• 1.6 Gbps switching fabric
• Auto MDI/ MDIX crossover for all ports
• Secure store-and-forward switching scheme
• Compliance s IEEE802.3az EEE power saving
• Full/ half-duplex for Ethernet/ Fast Ethernet speeds
• IEEE 802.3x Flow Control
• Plug-and-play installation
• RoHS compliant
• Supports 2048-byte Jumbo Frames

Protocol
• CSMA/ CD

Data Transfer
• Rates Ethernet:
o 10 Mbps (half duplex)
o 20 Mbps (full duplex)
• Fast Ethernet:
o 100 Mbps (half duplex)
o 200 Mbps (full duplex)

Transmission Method
• Store-and-forward

MAC Address Table
• 2K

MAC Address Learning
• Automatic Update

Packet Filtering/ Forwarding Rates
• Ethernet: 14, 880 pps per port
• Fast Ethernet: 148, 800 pps per port

RAM Buffer
• 128 KB per device

LED Indicators
• Per port: Link/ Activity
• Per device: Power

Media Interface Exchange
• Auto MDI/ MDIX adjustment for all ports

Rozmery
• 130.04 x 79.2 x 22.8 mm

Power
• 5 V/ 1 A Power Adapter

Heat Dissipation
• Power On (Standby): AC input:2.0472 Btu/ h
• Maximum: AC input:7.47228 Btu/ h

Power Consumption
• Power On (Standby): DC input: 0.36 watts, AC input: 0.6 watts
• Maximum: DC input: 1.78 watts, AC input: 2.19 watts
• Link Up: EEE mode: DC input: 0.75 watts AC input: 1.1. watts

Temperature
• Operating: 0 to 50 °C
• Storage: -10 to 70 °C

Humidity
• Operating: 10% to 90% non-condensing
• Storage: 5% to 90% non-condensing

MTBF
• 2, 137, 319 hours

Certifications
• CE class B
• ICES-003 Class B
• C-Tick Class B
• FCC class B
• cUL/ UL
• CCC
• Anatel
• CB
• VCCI Class B
