D-Link GO-SW-5E, switch, 5x | GO-SW-5E/E

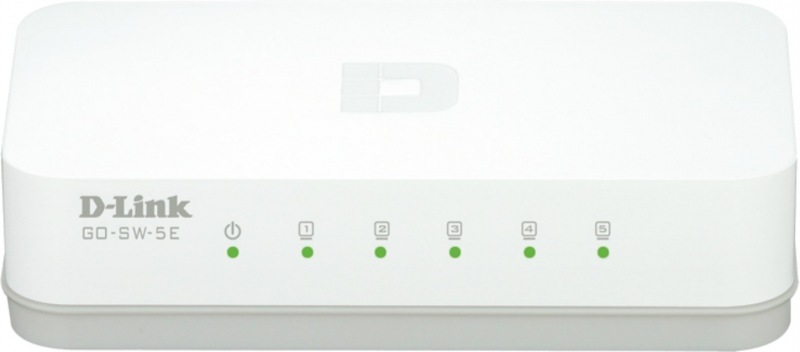

D-Link GO-SW-5E

5-Port Fast Ethernet Easy Desktop Switch

OVERVIEW
The dlinkgo GO-SW-5E 5-Port Fast Ethernet Easy Desktop Switch allows you to quickly set up a fast, reliable, and efficient wired network in your home or office. The GO-SW-5E is an unmanaged 10/ 100Mbps switch designed to enhance small workgroup performance while providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands. Connect the GO-SW-5E to multiple computers to share files and folders, or connect it to a router to share an Internet connection.

SPECIFICATIONS
Standards
• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• ANSI/ IEEE 802.3 NWay auto-negotiation
• IEEE 802.3x flow control IEEE 802.3u
• 100BASE-TX Fast Ethernet (twisted-pair copper)
• IEEE 802.3az EEE power saving

Switching Fabric
• 1 Gbps switching fabric

Topology
• Star

Protocol
• CSMA/ CD

Data Transfer Rates
• Ethernet
o 10 Mbps (half duplex)
o 20 Mbps (full duplex)
• Fast Ethernet
o 100 Mbps (half duplex)
o 200 Mbps (full duplex)

Media Interface Exchange
• Auto MDI/ MDIX adjustment for all ports

Network Cables
• 10BASE-T:
o UTP CAT 3/ 4/ 5/ 5e (100 m max.)
o EIA/ TIA-586 100-ohm STP (100 m max.)
• 100BASE-TX
o UTP CAT 5/ 5e (100 m max.)
o EIA/ TIA-568 100-ohm STP (100 m max.)

LED Indicators
• Per port: Link/ Activity
• Per device: Power

Transmission Method
• Store-and-forward

MAC Address Table
• 2K entries per device

MAC Address Learning
• Automatic update

Packet Filtering/ Forwarding Rates
• Ethernet: 14, 880 pps per port
• Fast Ethernet: 148, 800 pps per port

RAM Buffer
• 48 KB per device

Rozmery
• 87 x 47.85 x 21.7mm

DC Input
• External 5V/ 0.55A power adapter

Power Consumption
• Power On (Standby):
o DC input: 0.1 watts
o AC input: 0.69 watts
• Maximum:
o DC input: 0.9 watts
o AC input: 1.6 watts

Heat Dissipation
• Power On (Standby)
o AC input: 2.355 BTU/ h Maximum
o AC input: 5.461 BTU/ h

Temperature
• Operating: 0 to 40 °C
• Storage: -10 to 70 °C

Humidity
• Operating: 10% to 90% RH non-condensing
• Storage: 5% to 90% RH non-condensing

Certifications
• FCC Class B
• CE Class B
• UL
• C-Tick Class B
• CB
