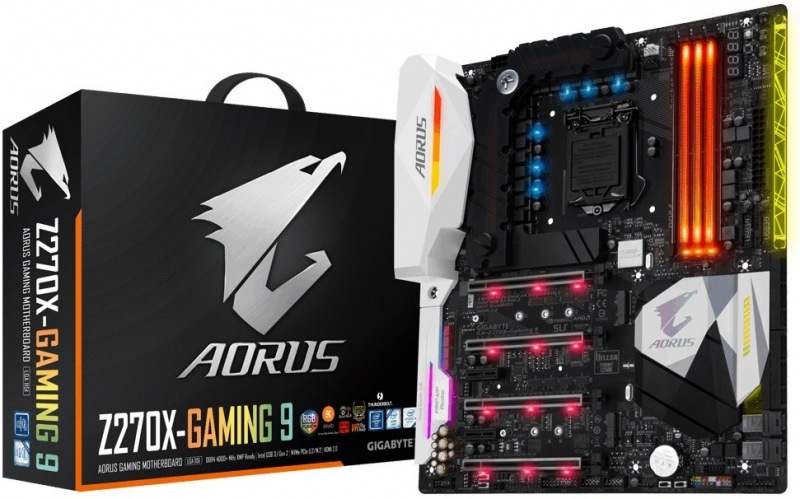

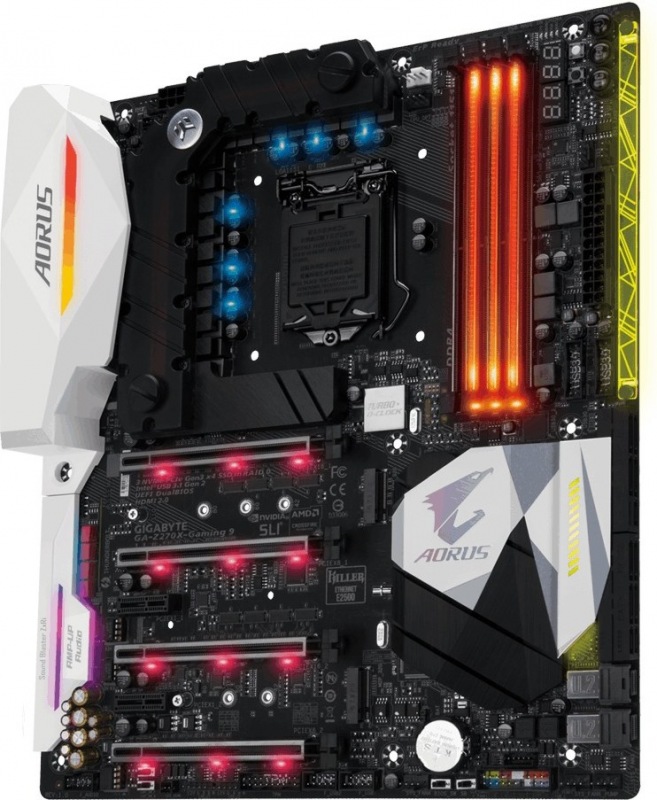

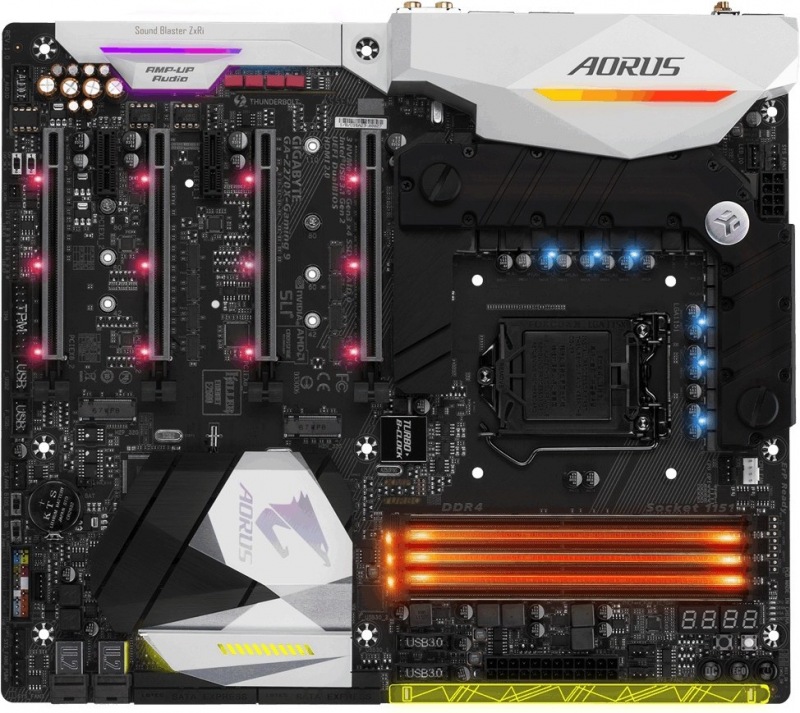

GIGABYTE AORUS Z270X-Gaming 9 (rev. 1.0) | GA-Z270X-Gaming_9

Chipset: Intel® Z270 Express Chipset

Revize: 1.0

Rozměrový formát: E-ATX Form Factor; 30.5cm x 26.4cm
Podpora pro procesory: 7th and 6th generation Intel® Core™ i7 processors/ Intel® Core™ i5 processors/ Intel® Core™ i3 processors/ Intel® Pentium® processors/ Intel® Celeron® processors
Patice procesoruLGA1151

Sloty na paměti: 4 x DDR4 DIMM, Dual channel memory architecture
Podpora pro paměti: DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz memory modules
Max.velikost operační paměti: 64 GB
Podpora pro paměti typu: XMP, ECC, non-ECC

Grafická karta: Dle závislosti na CPU, Maximální sdílená pamäť 1 GB
1 x Intel® Thunderbolt™ 3 connector, supporting DisplayPort and Thunderbolt™ video outputs and a maximální rozlíšenieof 4096x2304@60 Hz
1 x DisplayPort, supporting a maximální rozlíšenieof 4096x2304@60 Hz (podpora DisplayPort 1.2 version)
1 x HDMI port, maximální rozlíšenie 4096x2160@60 Hz

Podpora externí grafické karty:
NVIDIA® Quad-GPU SLI™ and 4-Way/ 3-Way/ 2-Way NVIDIA® SLI™ technologies
AMD Quad-GPU CrossFireX™ and 4-Way/ 3-Way/ 2-Way AMD CrossFire™ technologies

Zvuková karta: Creative® Sound Core 3D chip, 2/ 5.1-channel(podpora S/ PDIF Out)
Síťová karta:
2 x Killer™ E2500 LAN chips (10/ 100/ 1000 Mbit)
Wi-Fi 802.11 a/ b/ g/ n/ ac, supporting 2.4/ 5 GHz Dual-Band
Bluetooth 4.1

Rozšiřující sloty:
2 x PCI Express x16 slots, running at x16 (PCI Express 3.0 standard)
2 x PCI Express x16 slots, running at x8 (PCI Express 3.0 standard)
2 x PCI Express x1 slots (PCI Express 2.0 standard.)
RAID řadič: RAID 0, RAID 1, RAID 5, and RAID 10

SATA:
3 x SATA Express connectors
6 x SATA 6Gb/ s connectors (SATA3 0~5)
2 x SATA 6Gb/ s connectors (SATA3 6, 7), supporting AHCI mode only
Firewire: Ne
USB:
Chipset+Intel® Thunderbolt™ 3 Controller:
1 x USB Type-C™ port na zadním panelu, s USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red) na zadním panelu
Chipset+Realtek® USB 3.1 Gen 1 Hub:
4 x USB 3.1 Gen 1 ports přes interní USB konektor
Chipset:
5 x USB 3.1 Gen 1 ports na zadním panelu
4 x USB 2.0/ 1.1 ports přes interní USB konektor

Interní porty:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/ water cooling pump headers
1 x I/ O shield audio LED power connector
2 x RGB (RGBW) LED strip extension cable headers
3 x SATA Express connectors
8 x SATA 6Gb/ s connectors
2 x M.2 Socket 3 connectors
2 x U.2 connectors
1 x front panel header
1 x front panel audio header
2 x USB 3.1 Gen 1 headers
2 x USB 2.0/ 1.1 headers
1 x Trusted Platform Module (TPM) header
1 x Thunderbolt™ add-in card connector
1 x Clear CMOS jumper
2 x temperature sensor headers
1 x power button
1 x reset button
1 x Clear CMOS button
1 x ECO button
1 x OC button
2 x audio gain control switches
2 x BIOS switches
Voltage Measurement Points

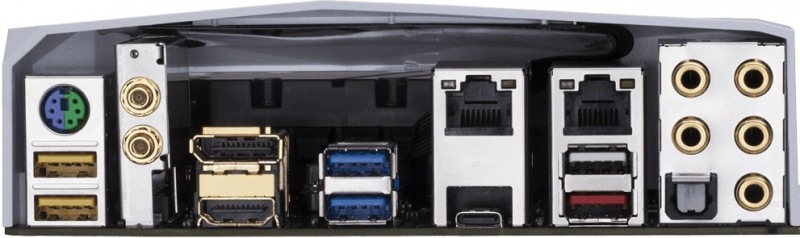

Externí porty:
1 x PS/ 2 keyboard/ mouse port
2 x MMCX antenna connectors (2T2R)
1 x HDMI port
1 x DisplayPort
1 x Thunderbolt™ 3 connector (USB Type-C™ port, s USB 3.1 Gen 2 support)
1 x USB 3.1 Gen 2 Type-A port (red)
5 x USB 3.1 Gen 1 ports
2 x RJ-45 ports
1 x optical S/ PDIF Out connector
5 x audio jacks (Center/ Subwoofer Speaker Out, Rear Speaker Out, Line In/ Mic In, Line Out, Headphone)

BIOS: AMI UEFI BIOS, 2 x 128 Mbit flash, (podpora DualBIOS™)
