D-Link DHP-W310AV, powerLine | DHP-W310AV/E

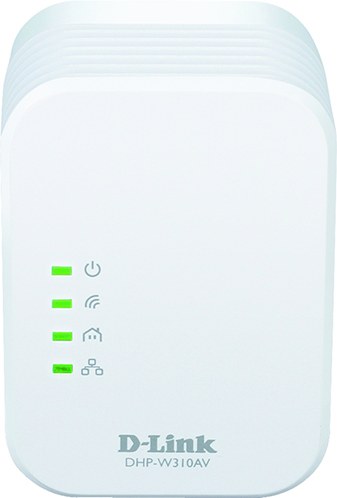

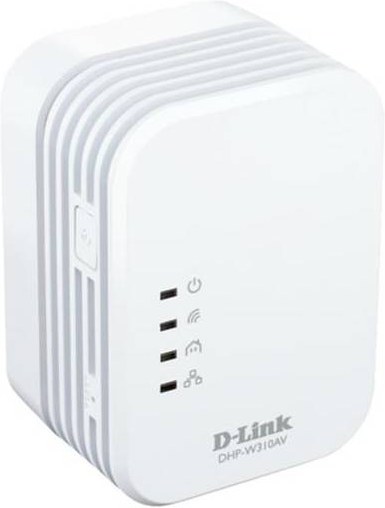

D-Link DHP-W310AV PowerLine AV 500 Wireless N Mini Extender


OVERVIEW
The DHP-W311AV PowerLine AV 500 Wireless N Mini Starter Kit allows you to extend your existing home network to enjoy high-speed and reliable connectivity throughout your home. The PowerLine AV 500 Wireless N Mini Extender features both Bezdrôtová and PowerLine. This allows you to benefit from PowerLine networking, compliant s the HomePlug AV standard that uses your existing home electrical wiring to extend your home network. The Bezdrôtová ability allows you to increase the area in your home where you can use your Bezdrôtová devices.

FEATURES
• Converts any power socket into a network connection point
• až do500 Mbps speeds over your existing electrical wiring
• až do300 Mbps Bezdrôtová speeds
• Improved resistance to electrical interference
• D-Link Green™: energy-saving design

SPECIFICATIONS
Standards
• IEEE 802.3
• IEEE 802.3u
• HomePlug AV
• IEEE 1901

PowerLine interface
• Power plug (country-dependent)

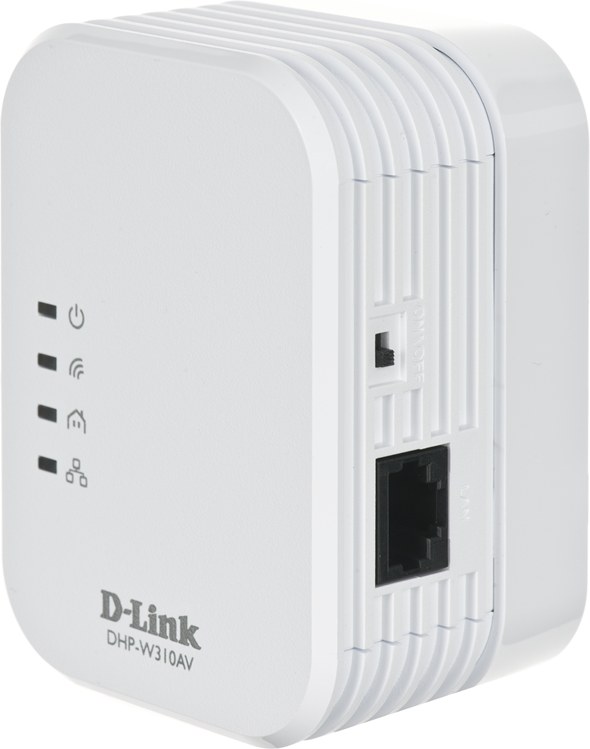

Ethernet interface
• 10/ 100BASE-TX Ethernet port s Auto MDI/ MDIX
• RJ-45 connector

Input Power
• 100V ~ 240V, 50/ 60 Hz
• 6 W maximum

PowerLine modulation scheme
• OFDM symbol modulation

PowerLine frequency band
• 2 MHz to 30 MHz

Data rates
• PowerLine: až do 500 Mbps (PHY rate)
• Ethernet: 10/ 100 Mbps (auto negotiation)

Security
• 128-bit AES link encryption

Minimum system requirements (For PC Utility Software)
• Windows 7/ Vista/ XP SP3
• Ethernet interface (100 Mbps)

LEDs
• Power
• PowerLine
• Ethernet

Rozmery (H x L x W)
• 90 x 65 x 50 mm (each adapter)

Váha
• 174.8 g (EU, DHP-W310AV)

Operating temperature
• 0 to 40 oC

Operating humidity
• 10% to 90% non-condensing

Certifications
• FCC
• CE EMC Class B
• UL
• CE LVD
