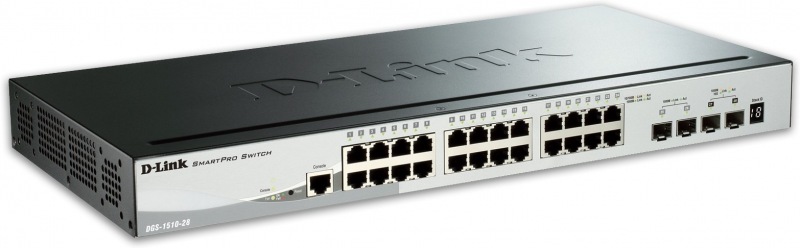

D-Link DGS-1510-28, switch, 1Gb/s, 24x
D-Link DGS-1510-28, switch, 1Gb/s, 24xVýrobca: D-LINK
PN kód: DGS-1510-28 D-Link DGS-1510-28
Parametre

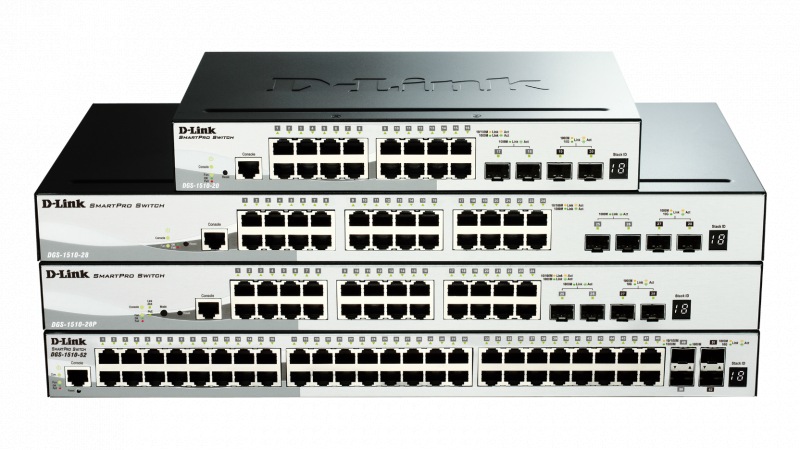

OVERVIEW The DGS-1510 Series is D-Link’s latest generation of SmartPro switches s 10G port connectivity, making them ideal for deployment in SME/ SMB core environments. The DGS-1510 Series provides a reliable, scalable, and modular interconnection between core switches and edge switches s rich capabilities and simplified flexibility. Available in 16, 24 or 48 10/ 100/ 1000 Mbps port models, these switches also include 2 Gigabit SFP ports and 2 10G SFP+ ports. SPECIFICATIONS GENERAL Port Standards & Functions • IEEE 802.3 10BASE-T Ethernet • IEEE 802.3u 100BASE-TX Fast Ethernet • IEEE 802.3ab 1000BASE-T Gigabit Ethernet • 802.3ae 10 GbE, • IEEE 802.3x Flow Control for Full-Duplex Mode, • Auto-negotiation Number of Ports • 24 10/ 100/ 1000 Mbps, 2 Gigabit SFP, 2 10G SFP+ Network Cables • UTP Cat. 5, Cat. 5e (100 m max.) EIA/ TIA-568 100-ohm STP (100 m max.) Full/ Half Duplex • Full/ half duplex for 10/ 100 Mbps and Gigabit speed Media Interface Exchange • Auto or configurable MDI/ MDIX PERFORMANCE Switching Capacity • 92 Gbps Transmission Method • Store-and-forward MAC Address Table • 16, 000 entries per device MAC Address Update • až do512 static MAC entries, • Enable/ disable auto-learning of MAC addresses Maximum 64 bytes Packet Forwarding Rate • 68.45 Mpps Packet Buffer Memory • 1.5 MB per device PHYSICAL & ENVIRONMENTAL AC Input • 100 to 240 VAC 50/ 60 Hz internal universal power supply Maximum Power Consumption • 24 W Standby Power Consumption • 15.2 W Smart Fan Quantity • 1 Acoustics • 47.5 dB(A) Heat Dissipation • 72.292 BTU/ hr Operation Temperature • -5 to 50 °C Storage Temperature • -20 to 70°C Operation Humidity • 0% to 95% non-condensing Storage Humidity • 0% to 95% non-condensing Rozmery • 440 x 210 x 44 mm • 19” standard rack mounting width, 1U height Weight • 2.00 kg Diagnostic LEDs • Power/ Stacking ID/ Fan (per device), • Link/ Activity/ Speed (per 10/ 100/ 1000 Mbps port), • Link/ Activity/ Speed (per Gigabit SFP port), • Link/ Activity/ Speed (per 10G SFP+ port) Certifications • CE, FCC, C-Tick, VCCI, BSMI, CCC • Safety cUL, CB Najpredávanejší tovar s podobnou cenou: Sieťové LAN, Wi-Fi prvky - Prepínače - switche s podobnou cenou ± 20%Cenovo podobné D-Link DGS-1510-28, switch, 1Gb/s, 24x[najžiadanejšie 5]
