Allied Telesis AT-2701FXa/SC, sieťová karta, 2x | AT-2701FXa/SC-001

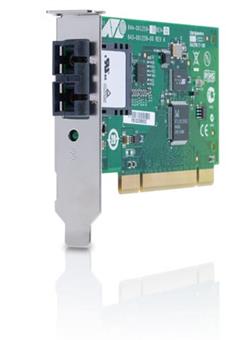

Allied Telesis AT-2701FXa

PCI 32-bit Fast Ethernet Fiber Network Interface Card. SC connector. Includes both standard and low profile brackets. Single pack.

OVERVIEW
The Allied Telesis AT-2701FXa 100Mbps Fiber Network Interface Card provides secure communications for desktop PCs and Thin Clients. It is an ideal solution for networks requiring protection from electrical interference and hackers as AT-2701FXa is resistant to signal degradation, snooping and interference.

FEATURES
Management Software
• VLAN support

Advanced Properties
• PCI 2.2 compliant
• Wake-on-LAN (WoL)
• Secured transmissions
• Advanced diagnostics
• Remote boot (PXE 2.1)
• Driver support for popular operating systems
• Available s SC or ST fiber connections
• Compliant s the Trade Agreement Act
• Microsoft-certified drivers
• RoHS compliant
• Low-profile and standard height brackets included
• IPv6
• Can also be used in PCI-x bus

SPECIFICATIONS
Management Features
• Windows Management Instrumentation (WMI)
• ACPI 2.0/ w01
• PXE 2.1 Boot ROM

Bus Type
• PCI 2.2

Network Type
• 100FX

• Network Controller
• Realtek 8139

Ethernet
• IEEE 802.1Q VLANs
• IEEE 802.2 LLC
• IEEE 802.3ac MAC
• IEEE 802.3u Fast Ethernet

Drivers
• Windows 7, 64-bit
• Windows 7, 32-bit
• Windows XP, 32-bit
• Linux 2.6

Interface Type and Connectors
• SC Connector
• Optical receive sensitivity (max) -31 dBm
• Transmit optical power (min/ max) -19 / -14 dBm

Status Indicators
• On
• 100Mbps link up
• Blink
• Activity
• Off
• 100Mbps link down

Power
• Typical power consumption 2.5 Watts at 3.3V
• Signaling voltage 3.3 / 5V

Environmental Specifications
• Operating temperature 0oC to 40oC
• Relative humidity 5% to 90% (non-condensing)
• Storage temperature -25oC to 70oC

Physical Characteristics
• Rozmery (W x H) 12.5 cm x 6.4 cm

Compliance
• RoHS
• UL
• FCC/ EN55022 Class A
• TUV
• EN55024
• CE
• C-TICK
• VCCI
