Allied Telesis 10 / 100TX 100FX AT-2701FTXa / SC
 Allied Telesis 10 / 100TX 100FX AT-2701FTXa / SC PN kód: AT-2701FTXa/SC-001
AT-2701FTXa
Parametre

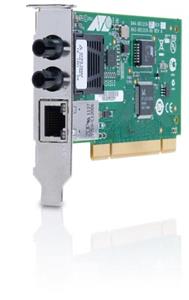

Network Interface Card OVERVIEW The Allied Telesis AT-2701FTXa 100Mbps Fast Ethernet dual-port fiber and copper network interface card features a small footprint and a low-profile option, making it a perfect choice for PCs equipped s small desktop solutions. The AT-2701FTXa features a full line of card assistant software. With a choice of connectors — ST or SC — the AT-2701FTXa meets the requirements of most installations. FEATURES Management Software • VLAN support Advanced Properties • PCI 2.2 compliant • Wake-on-LAN (WoL) supported (enabled by default, utility to disable available in firmware) • Secured transmissions • Diagnostics • Remote boot (PXE 2.1) • Driver support for popular operating systems • RJ-45 connector • Available s SC or ST connections • Compliant s the Trade Agreement Act • Microsoft-certified drivers • RoHS compliant • Low-profile and standard height brackets included • IPv6 • Can also be used in PCI-x bus SPECIFICATIONS Management Features • Windows Management Instrumentation (WMI) • ACPI 2.0/ w01 • PXE 2.1 Boot ROM Bus Type • PCI 2.2 Network Type • 100FX • 10/ 100TX Network Controller • Realtek 8139 Ethernet • IEEE 802.1Q VLANs • IEEE 802.2 LLC • IEEE 802.3ac MAC • IEEE 802.3u Fast Ethernet Drivers • Windows 7, 64-bit • Windows 7, 32-bit • Windows XP, 32-bit • Linux 2.6 Interface Type and Connectors • SC connector • ST connector • RJ-45 connector • Optical receive sensitivity (typ) -34 dBm • Transmit optical power (min/ max) -19 / -14 dBm Status Indicators • LNK On Active Port (Fiber or Copper) link up • Off Active Port (Fiber or Copper) link down • ACT Blink Activity Power • Typical power consumption 2.5 Watts at 3.3V • Signaling voltage 3.3 / 5V Environmental Specifications • Operating temperature 0oC to 40oC • Relative humidity 5% to 90% (non-condensing) • Storage temperature -25oC to 70oC Physical Characteristics • Rozmery (W x H) 12.5 cm x 6.4 cm (4.9 in x 2.5 in) Compliance • RoHS • UL • FCC/ EN55022 Class A • TUV • EN55024 • CE • C-TICK • VCCI low profile card incl. standard height bracket Ďalšie informácie výrobcu: Dokumenty: Najpredávanejší tovar s podobnou cenou: Sieťové LAN, Wi-Fi prvky - Sieťové karty s podobnou cenou ± 20%Cenovo podobné Allied Telesis 10 / 100TX 100FX AT-2701FTXa / SC[najžiadanejšie 5]
Recenzie Allied Telesis 10Allied Telesis 10 / 100TX 100FX AT-2701FTXa / SCZaradenie tovaru v katalógu:Ďalšie podkategórie v skupine Sieťové LAN, Wi-Fi prvky:
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
typ zariadenia
