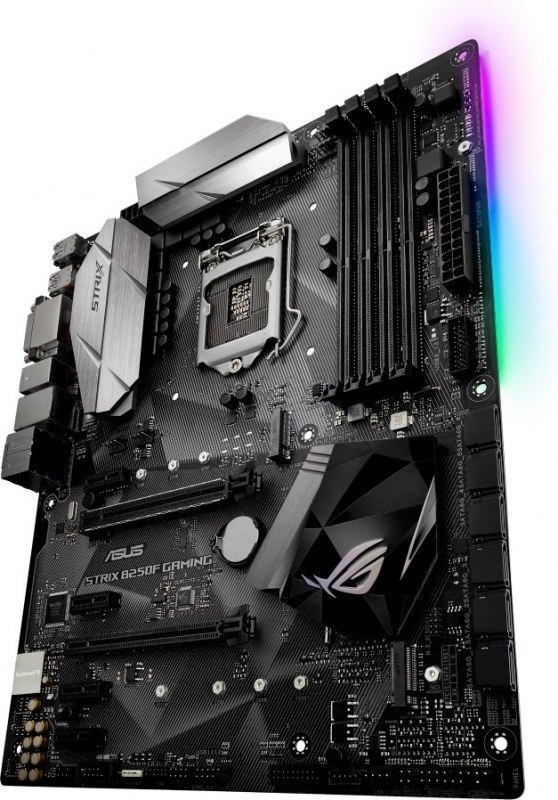

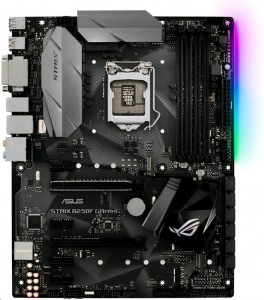

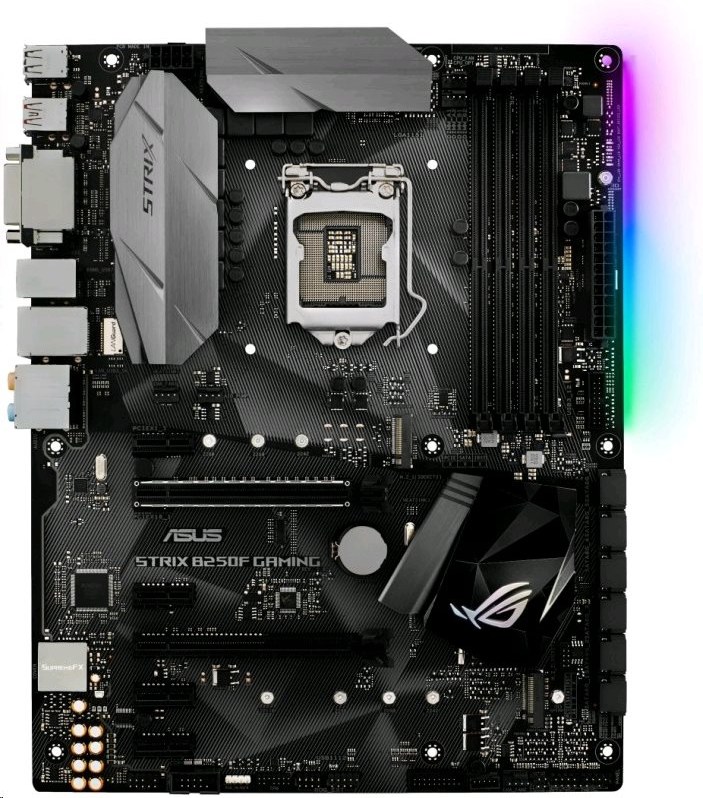

ASUS STRIX B250F GAMING | 90MB0TA0-M0EAY0

CPU

Intel Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium/Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
Refer to www.asus.com for CPU support list

Chipset
Intel B250

Memory
4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Due to Intel chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
** Due to Intel chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel processors will run at the maximum transfer rate of DDR4 2133MHz.

Graphic
integrovaná Graphics Processor- Intel HD Graphics support
Multi-VGA output support: HDMI/DVI-D/DisplayPort 1.2 ports
- Supports HDMI s max. resolution 4096 x 2160 @ 24 Hz
- Supports DVI-D s max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort s max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports až do 3 displays simultaneously
DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain až do 3 displays

Multi-GPU Support
Supports AMD 2-Way CrossFireX Technology

Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 mode)
1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1
4 x PCIe 3.0/2.0 x1

Storage
Intel B250 Chipset:
1 x M.2 Socket 3, s M key, type 2242/2260/2280 storage devices support (SATA mode)*2
1 x M.2 Socket 3, s M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*3
6 x SATA 6Gb/s port(s)

LAN
Intel I219V
Anti-surge LANGuard
ROG GameFirst Technology

Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual Headphone Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- Supports až do 32-Bit/192kHz playback *4
Audio Feature:
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III
USB Ports
Intel B250 Chipset:
6 x USB 3.0 port(s) (2 at back panel, blue, 4 at mid-board)
Intel B250 Chipset: *5
6 x USB 2.0 port(s) (4 at back panel,, 2 at mid-board)
ASMedia USB 3.1 controller:
2 x USB 3.1 port(s) (Type-A + Type-C, Support 3A power output)
ROG Exclusive Features
ROG RAMCache II
ROG CPU-Z
ROG CloneDrive
Overwolf
GameFirst IV
ROG Aura
- Aura Lighting Control
- Aura RGB Strip Headers

Special Features
Gamer s Guardian:
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
- SafeSlot
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
- ESD Guards
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design:
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Gaming Aesthetics:
- 3D printing friendly
- AURA-RGB Lighting
Performance Optimization:
- GPU Boost
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
M.2 Onboard(The latest transfer technologies s až do 32Gb/s data transfer speeds)

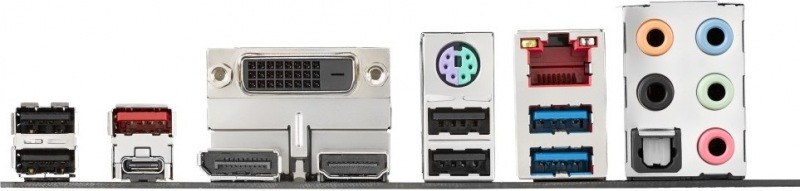

Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Type-A + Type-C
2 x USB 3.0 (blue)
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
Internal I/O Ports
1 x AAFP connector
1 x RGB Header(s)
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 s M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 s M Key, type 2242/2260/2280 storage devices support (Support SATA mode only)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Clear CMOS jumper(s)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x ROG extension (ROG_EXT) header(s)
1 x 14-1 pin TPM connector
1 x COM port header
1 x T_Sensor Connector
3 x 3D Mount screw port(s)

Accessories
User s manual
ASUS Q-Shield
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x ROG Strix stickers
1 x 10 in 1 ROG Cable Label(s)
1 x Extension Cable for RGB strips (80 cm)
1 x 3D printing mount package

BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.

Manageability
WfM2.0, DMI3.0, WOL by PME, PXE

Operating System
Windows 10 64-bit
Windows 8.1 64-bit *7
Windows 7 32-bit *7
Windows 7 64-bit *7

Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
