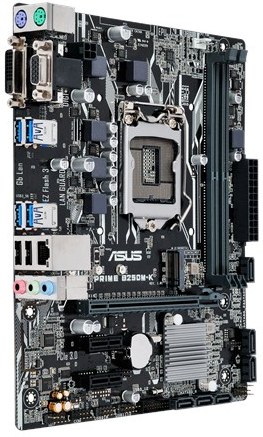

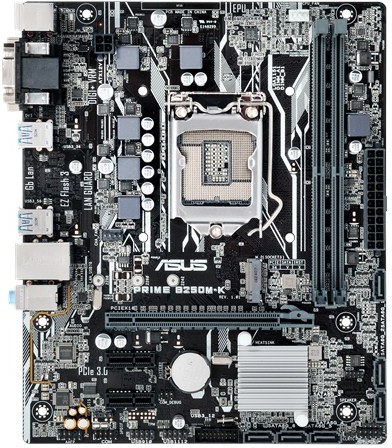

ASUS PRIME B250M-K | 90MB0T10-M0EAY0

Intel LGA-1151 mATX motherboard s LED lighting, DDR4 2400MHz,

M.2, SATA 6Gb/ s, USB 3.0

5X Protection III: Multiple hardware safeguards for all-round
protection

LED illumination: Lighting control audio trace paths

Native M.2: Lightning-fast storage speeds

UEFI BIOS and EZ Flash 3



CPU
Build in Intel® Socket 1151 for 7th/ 6th Generation Core™ i7/ Core™
i5/ Core™ i3/ Pentium®/ Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU
types.
* Refer to www.asus.com for CPU support list

Chipset
Build in Intel® B250

Memory
2 x DIMM, Max. 32GB, DDR4 2400/ 2133 MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors
Lists).
* Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is
only supported by 7th Generation Intel® processors. Higher memory
modules will run at the maximum transfer rate of DDR4 2400MHz.
** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory
modules on 6th Generation Intel® processors will run at the maximum
transfer rate of DDR4 2133MHz.

Graphic
integrovaná Graphics Processor- Intel® HD Graphics support
Multi-VGA output support: DVI-D/ RGB ports
- Supports DVI-D s max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB s max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD
Technology, Insider™



Expansion Slots
1 x PCIe 3.0/ 2.0 x16 (x16 mode, gray)
2 x PCIe 3.0/ 2.0 x1

Storage
Intel® B250 Chipset:
1 x M.2 Socket 3,, s M Key, type 2242/ 2260/ 2280 storage devices
support (SATA mode & amp; X4 PCIE mode)*1
6 x SATA 6Gb/ s port(s), gray,

LAN
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
ASUS LAN Guard

Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC
- Supports: Jack-detection, Front Panel Jack-retasking
Audio Feature:
- LED-illuminated design - Brighten up your build s the gorgeous
illuminated audio trace path.
- Audio Shielding: Ensures precision analog/ digital separation and
greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right
channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and
immersive sound s exceptional clarity and fidelity

USB Ports
Intel® B250 Chipset:
6 x USB 3.0/ 2.0 port(s) (4 at back panel, blue, Type-A, 2 at
mid-board)
Intel® B250 Chipset:
6 x USB 2.0/ 1.1 port(s) (2 at back panel, čierna, 4 at mid-board)

Special Features
ASUS 5X Protection III:
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and
static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power
design
- ASUS Stainless-Steel Back I/ O: 3X corrosion-resistance for greater
durability!
- ASUS DIGI+ VRM: 5 Phase digital power design
ASUS EPU:
- EPU
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS MyLogo 2
ASUS Q-Design:
- ASUS Q-DIMM
M.2 Onboard(The latest transfer technologies s až do 32Gb/ s data
transfer speeds)

Back I/ O Ports
1 x PS/ 2 keyboard (purple)
1 x PS/ 2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x LAN (RJ45) port(s)
4 x USB 3.0 (blue) Type-A
2 x USB 2.0
1 x 8-channel Audio I/ O



Internal I/ O Ports
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
(19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 s M Key, type 2242/ 2260/ 2280 storage devices
support (SATA mode & amp; X4 PCIE mode)
1 x COM port(s) connector(s)
6 x SATA 6Gb/ s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/ PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector

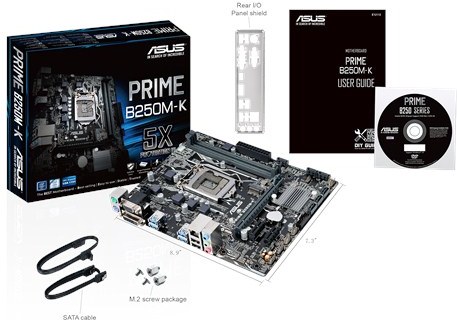

Accessories
User s manual
I/ O Shield
2 x SATA 6Gb/ s cable(s)
1 x M.2 screws
1 x Supporting DVD

BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0,
ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6
Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen,
and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE

Operating System
Windows® 10 64-bit
Windows® 8.1 64-bit *2
Windows® 7 32-bit *2
Windows® 7 64-bit *2

Form Factor
mATX Form Factor
8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm )

Note
*1 When a device in SATA mode is installed on the M.2 socket, SATA_1
port cannot be used.
*2 Windows® 8.1 64-bit and Windows® 7 32/ 64-bit are only supported
when using 6th Generation Intel® Processors.
