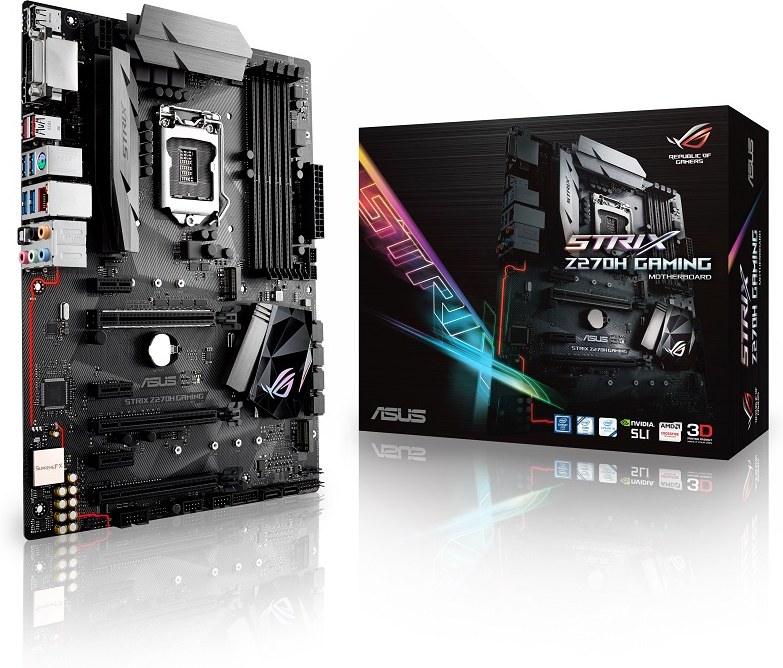

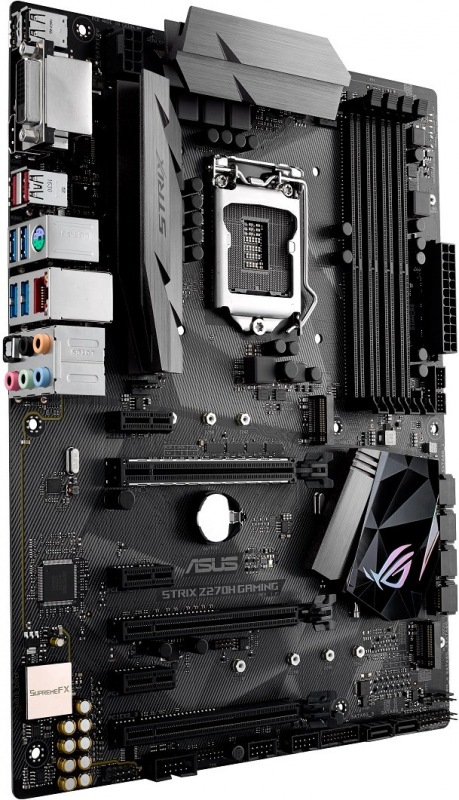

ASUS STRIX Z270H GAMING | 90MB0SS0-M0EAY0

CPU

Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset
Intel® Z270
Memory
4 x DIMM, Max. 64GB, DDR4 3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered, Register Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic
integrovaná Graphics Processor- Intel® HD Graphics support
Multi-VGA output support: HDMI/DVI ports
- Supports HDMI s max. resolution 4096 x 2160 @ 24 Hz
- Supports DVI s max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports až do 3 displays simultaneously
Multi-GPU Support
Supports NVIDIA® 2-Way SLI™ Technology
Supports AMD 2-Way CrossFireX Technology
Expansion Slots
2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 3.0/2.0 x16 (x2 mode)
3 x PCIe 3.0/2.0 x1
Storage
Intel® Z270 Chipset:
1 x M.2 Socket 3, s M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
1 x M.2 Socket 3, s M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Intel® Optane™ Memory Ready *2
LAN
Intel® I219V, Dual interconnect between the integrovaná Media Access Controller (MAC) and Physical Layer (PHY)
Anti-surge LANGuard
ROG GameFirst Technology
Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual Headphone Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports až do 32-Bit/192kHz playback *3
Audio Feature:
- SupremeFX Shielding™ Technology
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III
USB Ports
Intel® Z270 Chipset:
8 x USB 3.0 port(s) (4 at back panel, blue, 4 at mid-board)
Intel® Z270 Chipset:
6 x USB 2.0 port(s) (2 at back panel, čierna, 4 at mid-board)
ASMedia® USB 3.1 controller:
2 x USB 3.1 port(s) (2 at back panel, red, Type-A)
ROG Exclusive Features
ROG RAMCache II
ROG CPU-Z
ROG CloneDrive
Overwolf
GameFirst IV
Special Features
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization s a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
TPU
- Auto Tuning, TurboV, GPU Boost
Gamer s Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
- SafeSlot
ASUS EPU:
- EPU
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution:
- ASUS Fan Xpert 4 Core
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design:
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Gaming Aesthetics:
- 3D printing friendly
Digi+VRM
Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Type-A
2 x USB 2.0
4 x USB 3.0
1 x Optical S/PDIF out
5 x Audio jack(s)
Internal I/O Ports
1 x AAFP connector
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 s M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 s M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
1 x TPM connector(s)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x CPU_OV jumper
Accessories
User s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x CPU installation tool
1 x Supporting DVD
1 x SLI HB BRIDGE(2-WAY-M)
1 x ROG Strix stickers
1 x 10 in 1 Cable Label (s)
1 x 3D printing mount package
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.
Manageability
WfM2.0, DMI3.0, WOL by PME, PXE
Support Disc
Drivers
ROG GameFirst IV*
ROG RAMCache II
ROG Clone Drive
ROG CPU-Z
Anti-virus software (OEM version)
ASUS WebStorage
ASUS Utilities

ROG GameFirst IV is only available for Windows 10/8.1 64-bit
Operating System
Windows® 10 64-bit
Windows® 8.1 64-bit *4
Windows® 7 32-bit *4
Windows® 7 64-bit *4
Form Factor
ATX Form Factor
12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
Note
1 The M.2_1 socket shares bandwidth s SATA_1 port when using M.2 SATA mode device. Adjust BIOS settings to use SATA device.
2 Intel® Optane Technology only supported when using 7th Generation Intel® Processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.
3 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio
4 Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors.
