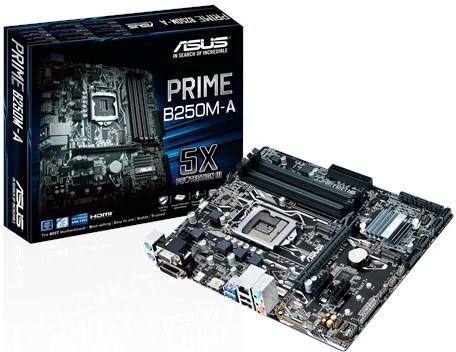

ASUS PRIME B250M-A | 90MB0SR0-M0EAY0

Intel LGA-1151 ATX motherboard s LED lighting, DDR4 2400MHz,

dual M.2, Intel Optane memory ready, HDMI, SATA 6Gb/ s, USB 3.0

5X Protection III: Multiple hardware safeguards for
all-round protection
Dual native M.2: Lightning-fast storage speeds
USB Type-C: Convenient reversible connectivity
Intel® Optane™ memory ready: Exploit the latest high-speed
storage technology

CPU
Intel® Socket 1151 for 7th/ 6th Generation Core™ i7/ Core™ i5/ Core™
i3/ Pentium®/ Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU
types.
* Refer to www.asus.com for CPU support list

Chipset
Intel® B250

Memory
4 x DIMM, Max. 64GB, DDR4 2400/ 2133 MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors
Lists).
* Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is
only supported by 7th Generation Intel® processors. Higher memory
modules will run at the maximum transfer rate of DDR4 2400MHz.
** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory
modules on 6th Generation Intel® processors will run at the maximum
transfer rate of DDR4 2133MHz.

Graphic
integrovaná Graphics Processor- Intel® HD Graphics support
Multi-VGA output support: HDMI/ DVI-D/ RGB ports
- Supports HDMI s max. resolution 4096 x 2160 @ 24 Hz / 2560 x
1600 @ 60 Hz
- Supports DVI-D s max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB s max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD
Technology, Insider™
Supports až do 3 displays simultaneously

Expansion Slots
1 x PCIe 3.0/ 2.0 x16 (x16 mode, gray)
2 x PCIe 3.0/ 2.0 x1

Storage
Intel® B250 Chipset:
1 x M.2 Socket 3, s M Key, type 2242/ 2260/ 2280 storage devices
support (SATA mode & amp; X4 PCIE mode)*1
1 x M.2 Socket 3, s M Key, type 2242/ 2260/ 2280 storage devices
support (x4 PCIE mode)*2
Intel® Optane™ Memory Ready *3

LAN
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
ASUS LAN Guard

Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC
- Supports: Jack-detection, Front Panel Jack-retasking
Audio Feature:
- LED-illuminated design - Brighten up your build s the gorgeous
illuminated audio trace path.
- Audio Shielding: Ensures precision analog/ digital separation and
greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right
channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and
immersive sound s exceptional clarity and fidelity

USB Ports
Intel® B250 Chipset:
1 x USB 5Gb/ s port(s) port(s) (1 at back panel,, Type-C, Support 3A
power output)
Intel® B250 Chipset:
4 x USB 3.0/ 2.0 port(s) (2 at back panel, blue, Type-A, 2 at
mid-board)
Intel® B250 Chipset:
6 x USB 2.0/ 1.1 port(s) (2 at back panel, čierna, 4 at mid-board)

Special Features
ASUS 5X Protection III:
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and
static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power
design
- ASUS Stainless-Steel Back I/ O: 3X corrosion-resistance for greater
durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
ASUS EPU:
- EPU
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
- ESD Guards
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface

ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 2+
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design:
- ASUS Q-DIMM
M.2 Onboard(The latest transfer technologies s až do 32Gb/ s data
transfer speeds)

Back I/ O Ports
1 x PS/ 2 keyboard (purple)
1 x PS/ 2 mouse (green)
1 x PS/ 2 keyboard/ mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 5Gb/ s port(s) Type-C ( support 3A power output )
2 x USB 3.0 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)

Internal I/ O Ports
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
(19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 s M Key, type 2242/ 2260/ 2280 storage devices
support (SATA mode & amp; X4 PCIE mode)
1 x M.2 Socket 3 s M key, type 2242/ 2260/ 2280 storage devices
support (PCIE 3.0 x 4 mode)
1 x TPM header
1 x LPT header
1 x COM port(s) connector(s)
6 x SATA 6Gb/ s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/ PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Chassis Intrusion connector(s)
1 x System panel connector

Accessories
User s manual
I/ O Shield
2 x SATA 6Gb/ s cable(s)
2 x M.2 screws
1 x Supporting DVD

BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0,
ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6
Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen,
and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE

Support Disc
Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)

Operating System
Windows® 10 64-bit
Windows® 8.1 64-bit *4
Windows® 7 32-bit *4
Windows® 7 64-bit *4

Form Factor
mATX Form Factor
9.6 inch x 8.1 inch ( 24.4 cm x 20.6 cm )

Note
*1 When a device in SATA mode is installed on the M.2_1 socket,
SATA_1 port cannot be used.
*2 Only M.2_2 socket can support Intel® Optane™ Memory.
*3 Intel® Optane™ Technology is only supported when using 7th
Generation Intel® processors. Before using Intel® Optane™ memory
modules, ensure that you have updated your motherboard drivers and
BIOS to the latest version from ASUS support website.

*4 Windows® 8.1 64-bit and Windows® 7 32 / 64-bit are only
supported when using 6th Generation Intel® Processors
