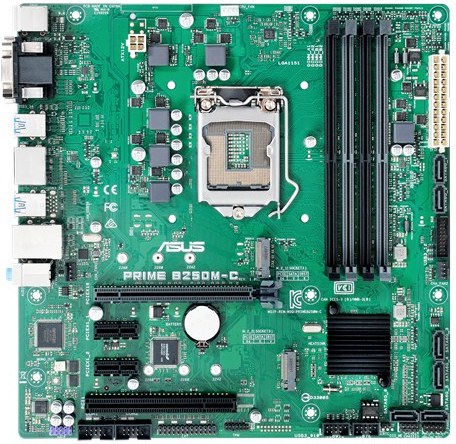

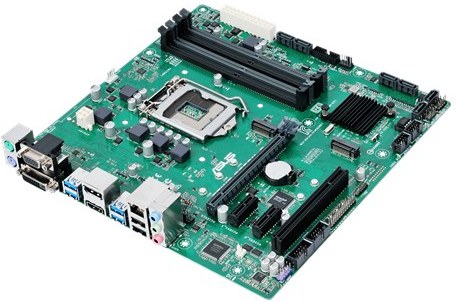

ASUS PRIME B250M-C
ASUS PRIME B250M-CASUS B250M-C Commercial Series micro-ATX motherboard, built for
Parametreassembly and BIOS management 5X Protection III: Advanced hardware safeguards for all-round protection Efficient management: ASUS Commercial BIOS Kit for easy customization of DMI, BIOS values and boot logos, plus Intel® ME Driver and OEM Activation (OA) tools* Dependable reliability: Stress-tested 24/ 7 for 168 hours, plus anti-moisture coating for prolonged system lifespan. Easy assembly: Box-style headers and fixed-position, color-coded connectors to speed up the production line. CPU Intel® for 7th/ 6th Generation Core™ i7/ Core™ i5/ Core™ i3/ Pentium®/ Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list Chipset Intel® B250 Memory 4 x DIMM, Max. 64GB, DDR4 2400/ 2133 MHz Non-ECC, Un-buffered Memory Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor. Graphic integrovaná Graphics Processor- Intel® HD Graphics support Multi-VGA output support: HDMI/ DVI-D/ RGB/ DisplayPort ports - Supports HDMI s max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D s max. resolution 1920 x 1200 @ 60 Hz - Supports RGB s max. resolution 1920 x 1200 @ 60 Hz - Supports DisplayPort s max. resolution 4096 x 2304 @ 60 Hz Maximum shared memory of 1024 MB Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ Supports až do 3 displays simultaneously Expansion Slots 1 x PCIe 3.0/ 2.0 x16 2 x PCIe 3.0/ 2.0 x1 1 x PCI Storage Intel® B250 Chipset: 1 x M.2 Socket 3, s M key, type 2242/ 2260/ 2280 storage devices support (both SATA & amp; PCIE mode) 1 x M.2 Socket 3, s M Key, type 2242/ 2260/ 2280 storage devices support (x4 PCIE mode) 6 x SATA 6Gb/ s port(s) Intel® Optane™ Memory Ready *4 LAN Intel® I219V, 1 x Gigabit LAN Controller(s) Audio Realtek® ALC887 8-Channel High Definition Audio CODEC *1 - Supports: Jack-detection, Front Panel Jack-retasking USB Ports Intel® B250 Chipset: 6 x USB 3.0/ 2.0 port(s) (4 at back panel, blue, 2 at mid-board) Intel® B250 Chipset: 6 x USB 2.0/ 1.1 port(s) (2 at back panel, čierna, 4 at mid-board) Special Features ASUS 5X Protection III: - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/ O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 5 Phase digital power design ASUS Q-Design: - ASUS Q-Slot - ASUS Q-DIMM Digi+VRM Operating System Support Windows® 10, 64bit Windows® 8.1, 64bit *2 Windows® 7, 32bit/ 64bit *2 Back I/ O Ports 1 x PS/ 2 keyboard (purple) 1 x PS/ 2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.0 (blue) 2 x USB 2.0 3 x Audio jack(s) Internal I/ O Ports 1 x MONO out header *3 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 s M key, type 2242/ 2260/ 2280 storage devices support (SATA & amp; PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 s M Key, type 2242/ 2260/ 2280 storage devices support (PCIE mode only) 1 x LPT header 2 x COM port(s) connector(s) 6 x SATA 6Gb/ s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Chassis Intrusion connector(s) 1 x 14-1 pin TPM connector Accessories User s manual I/ O Shield 2 x SATA 6Gb/ s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD BIOS 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0 ACPI 5.0, Multi-language BIOS, ASUSbackup, LOGO flash, ME update, DMI value edit, BIOS value edit Manageability WfM 2.0, DMI 3.0, WOL, WOR, PXE Support Disc Drivers Form Factor uATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) Note *1: Use a chassis s HD audio module in the front panel to support an 8-channel audio output. *2: * Windows® 8.1 (64-bit) and Windows® 7 (32/ 64-bit) are only supported when using 6th Generation Intel® Processors *3: Use s amplified speaker is suggested. *4: Intel® Optane Technology is only supported when using 7th Generation Intel® Processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website. Ďalšie informácie výrobcu: Najpredávanejší tovar s podobnou cenou: Základné dosky (MB) - MB socket Intel 1151 s podobnou cenou ± 20%Cenovo podobné ASUS PRIME B250M-C[najžiadanejšie 5]
