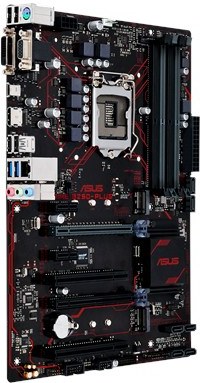

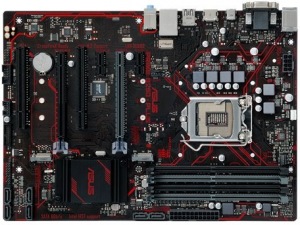

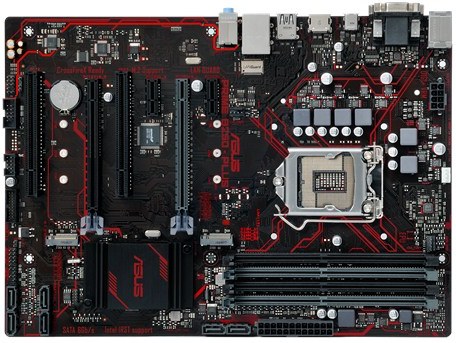

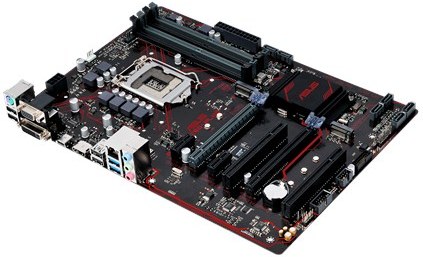

ASUS PRIME B250-PLUS | 90MB0SJ0-M0EAY0

Intel LGA-1151 ATX motherboard s LED lighting, DDR4 2400MHz,

dual M.2, Intel Optane memory ready, HDMI, SATA 6Gb/ s, USB 3.0




5X Protection III: Multiple hardware safeguards for all-round
protection

LED illumination: Lighting control for both PCIe slot and audio
trace paths

Dual native M.2: Lightning-fast storage speeds

USB Type-C: Convenient reversible connectivity

Intel® Optane™ memory ready: Exploit the latest high-speed storage
technology

CPU
Intel® Socket 1151 for 7th/ 6th Generation Core™ i7/ Core™ i5/ Core™
i3/ Pentium®/ Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU
types.
* Refer to www.asus.com for CPU support list

Chipset
Intel® B250



Memory
4 x DIMM, Max. 64GB, DDR4 2400/ 2133 MHz Non-ECC, Un-buffered Memory
*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors
Lists).
* Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is
only supported by 7th Generation Intel® processors. Higher memory
modules will run at the maximum transfer rate of DDR4 2400MHz.
** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory
modules on 6th Generation Intel® processors will run at the maximum
transfer rate of DDR4 2133MHz.

Graphic
integrovaná Graphics Processor- Intel® HD Graphics support
Multi-VGA output support: HDMI/ DVI-D/ RGB ports
- Supports HDMI s max. resolution 4096 x 2160 @ 24 Hz / 2560 x
1600 @ 60 Hz
- Supports DVI-D s max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB s max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB



Multi-GPU Support
Supports AMD CrossFireX™ Technology

Expansion Slots
1 x PCIe 3.0/ 2.0 x16 (x16 mode, gray)
1 x PCIe 3.0/ 2.0 x16 (max at x4 mode, čierna) *1
2 x PCIe 3.0/ 2.0 x1
2 x PCI

Storage
Intel® B250 Chipset:
1 x M.2 Socket 3, s M key, type 2242/ 2260/ 2280 storage devices
support (both SATA & amp; PCIE mode)*2
1 x M.2 Socket 3, s M key, type 2242/ 2260/ 2280 storage devices
support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/ s port(s)
Intel® Optane™ Memory Ready *3

LAN
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
ASUS LAN Guard

Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC *4
Audio Feature:
- LED-illuminated design - Brighten up your build s the gorgeous
illuminated audio trace path.
- Audio Shielding: Ensures precision analog/ digital separation and
greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right
channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and
immersive sound s exceptional clarity and fidelity

USB Ports
Intel® B250 Chipset:
1 x USB 3.0 port(s) (1 at back panel,, Type-C, Reversible, Support
3A power output)
Intel® B250 Chipset:
4 x USB 3.0/ 2.0 port(s) (2 at back panel, blue, Type-A, 2 at
mid-board)
Intel® B250 Chipset:
6 x USB 2.0/ 1.1 port(s) (4 at back panel, čierna, Type-A, 2 at
mid-board)

Special Features
ASUS 5X Protection III:
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and
static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power
design
- ASUS Stainless-Steel Back I/ O: 3X corrosion-resistance for greater
durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
ASUS EPU:
- EPU
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
- Low EMI Solution
- ESD Guards
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface

ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 2+
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS MyLogo 2
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design:
- ASUS Q-Slot
- ASUS Q-DIMM
Digi+VRM
M.2 Onboard(The latest transfer technologies s až do 32Gb/ s data
transfer speeds)



Back I/ O Ports
1 x PS/ 2 keyboard/ mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 5Gb/ s port(s) Type-C ( support 3A power output )
2 x USB 3.0 (blue)
4 x USB 2.0
3 x Audio jack(s)



Internal I/ O Ports
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
2 x M.2 Socket 3
1 x COM port(s) connector(s)
6 x SATA 6Gb/ s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/ PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector

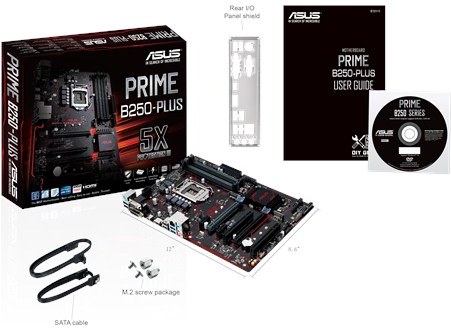

Accessories
User s manual
I/ O Shield
2 x SATA 6Gb/ s cable(s)
2 x M.2 screws
1 x Supporting DVD

BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS3.0,
ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS
3, Last Modified log, F12 PrintScreen, F3 Shortcut functions and
ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE

Support Disc
Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)



Operating System
Windows® 10 64-bit
Windows® 8.1 64-bit *5
Windows® 7 32-bit *5
Windows® 7 64-bit *5

Form Factor
ATX Form Factor
12 inch x 8.6 inch ( 30.5 cm x 21.8 cm )

Note
1.When an M.2 device in PCIe mode is installed onto the M.2_1
socket, PCIe x16_2 slot only runs at x1 mode
2.(a) When an M.2 device in PCIE mode is installed, PCIE x16_2 slot
only runs @ x1 mode and SATA6G_1 port is enabled.
(b) When an M.2 device in SATA mode is installed, the M.2 device
uses the SATA6G_1 bandwidth. SATA6G_1 port is disabled.
3.Only M.2_2 socket can support Intel® Optane Memory. Intel® Optane
Technology is only supported when using 7th Generation Intel®
processors. Before using Intel® Optane memory modules, ensure that
you have updated your motherboard drivers and BIOS to the latest
version from ASUS support website.
4.Choose the chassis s HD audio module in front panel to support
8-channel audio output.
5.Windows® 8.1 64-bit and Windows® 7 32/ 64-bit are only supported
when using 6th Generation Intel® Processors
