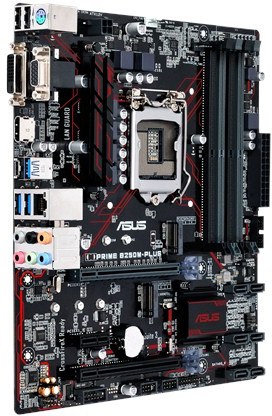

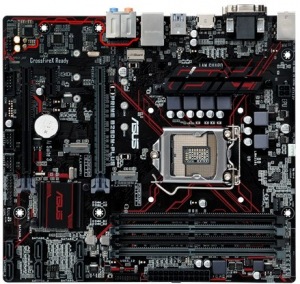

ASUS PRIME B250M-PLUS | 90MB0SI0-M0EAY0

CPU

Intel® Socket 1151 for 7th/ 6th Generation Core™ i7/ Core™ i5/ Core™ i3/ Pentium®/ Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Refer to www.asus.com for CPU support list

Chipset
Intel® B250

Memory
4 x DIMM, Max. 64GB, DDR4 2400/ 2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.

Graphic
integrovaná Graphics Processor- Intel® HD Graphics support
Multi-VGA output support: HDMI/ DVI-D/ RGB ports
- Supports HDMI s max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D s max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB s max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports až do 3 displays simultaneously

Multi-GPU Support
Supports AMD CrossFireX™ Technology

Expansion Slots
1 x PCIe 3.0/ 2.0 x16 (x16 mode, gray)
1 x PCIe 3.0/ 2.0 x16 (x4 mode, čierna)
1 x PCIe 3.0/ 2.0 x1

Storage
Intel® B250 Chipset:
1 x M.2 Socket 3, s M Key, type 2242/ 2260/ 2280 storage devices support (both SATA & x2 PCIE mode)*1
1 x M.2 Socket 3, s M Key, type 2242/ 2260/ 2280 storage devices support (x4 PCIE mode)*2
Intel® Optane™ Memory Ready *3

LAN
Intel® I219V, 1 x Gigabit LAN Controller(s)
ASUS LAN Guard
Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY)

Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC
- Supports: Jack-detection, Front Panel Jack-retasking
Audio Feature:
- LED-illuminated design - Brighten up your build s the gorgeous illuminated audio trace path.
- Audio Shielding: Ensures precision analog/ digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound s exceptional clarity and fidelity

USB Ports
Intel® B250 Chipset:
1 x USB 5Gb/ s port(s) port(s) (1 at back panel,, Type-C, Support 3A power output)
Intel® B250 Chipset:
5 x USB 3.0/ 2.0 port(s) (3 at back panel, blue, Type-A, 2 at mid-board)
Intel® B250 Chipset:
6 x USB 2.0/ 1.1 port(s) (2 at back panel, čierna, 4 at mid-board)

Special Features
ASUS 5X Protection III:
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/ O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
ASUS EPU:
- EPU
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
- ESD Guards
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 2+
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design:
- ASUS Q-Slot
- ASUS Q-DIMM
M.2 Onboard(The latest transfer technologies s až do 32Gb/ s data transfer speeds)

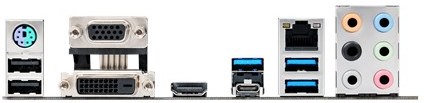

Back I/ O Ports
1 x PS/ 2 keyboard/ mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 5Gb/ s port(s) Type-C ( support 3A power output )
3 x USB 3.0 (blue) Type-A
2 x USB 2.0
6 x Audio jack(s)

Internal I/ O Ports
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3 for M Key, type 2242/ 2260/ 2280 devices
6 x SATA 6Gb/ s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/ PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
0 x COM port header

Accessories
User s manual
I/ O Shield
2 x SATA 6Gb/ s cable(s)
2 x M.2 screws
1 x Supporting DVD

BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE

Support Disc
Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)

Operating System
Windows® 10 64-bit
Windows® 8.1 64-bit *4
Windows® 7 32-bit *4
Windows® 7 64-bit *4

Form Factor
mATX Form Factor
9.6 inch x 8.8 inch ( 24.4 cm x 22.4 cm )

Note
1 When a device in SATA mode is installed on the M.2_1 socket, SATA_1 port cannot be used.
2 Only M.2_2 socket can support Intel® Optane™ Memory.
3 Intel® Optane™ Technology is only supported when using 7th Generation Intel® processors. Before using Intel® Optane™ memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.
4 Windows® 8.1 64-bit and Windows® 7 32 / 64-bit are only supported when using 6th Generation Intel® Processors
