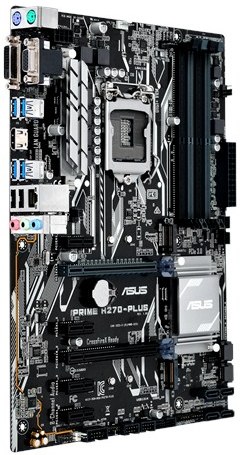

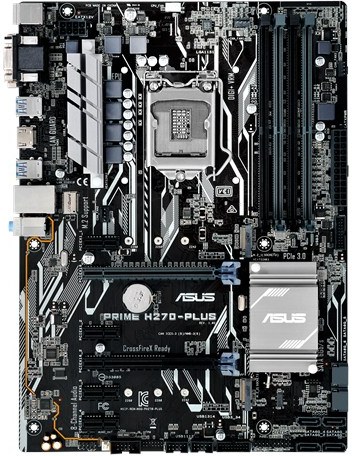

ASUS PRIME H270-PLUS
    ASUS PRIME H270-PLUS PN kód: 90MB0S90-M0EAY0
CPU

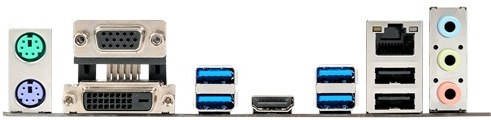

ParametreSupports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. Refer to www.asus.com for CPU support list Chipset Intel® H270 Memory 4 x DIMM, Max. 64GB, DDR4 2400/ 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz. ** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz. Graphic integrovaná Graphics Processor- Intel® HD Graphics support Multi-VGA output support: HDMI/ DVI-D/ RGB ports - Supports HDMI 1.4b s max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D s max. resolution 1920 x 1200 @ 60 Hz - Supports RGB s max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ Supports až do 3 displays simultaneously Multi-GPU Support Supports AMD CrossFireX™ Technology Expansion Slots 1 x PCIe 3.0/ 2.0 x16 (x16 mode) 1 x PCIe 3.0/ 2.0 x16 (max at x4 mode) 4 x PCIe 3.0/ 2.0 x1 Storage 1 x M.2 Socket 3*1, s M Key, type 2242/ 2260/ 2280 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3*2, s M Key, type 2242/ 2260/ 2280 storage devices support (both SATA & x2 PCIE mode)*1 6 x SATA 6Gb/ s port(s), gray Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready *3 LAN Realtek® RTL8111H Audio Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports: Jack-detection, Front Panel Jack-retasking Audio Feature: - Audio Shielding: Ensures precision analog/ digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound s exceptional clarity and fidelity USB Ports Intel® H270 Chipset: 8 x USB 3.0 port(s) (4 at back panel, blue, 4 at mid-board) Intel® H270 Chipset: 6 x USB 2.0 port(s) (2 at back panel,, Type-A, 4 at mid-board) Special Features ASUS 5X Protection III: - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/ O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 6 Phase digital power design ASUS EPU: - EPU ASUS Exclusive Features: - AI Suite 3 - Ai Charger ASUS Quiet Thermal Solution: - Stylish Fanless Design Heat-sink solution & MOS Heatsink - ASUS Fan Xpert 2+ ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design: - ASUS Q-Slot - ASUS Q-DIMM M.2 Onboard(The latest transfer technologies s až do 32Gb/ s data transfer speeds) Back I/ O Ports 1 x PS/ 2 keyboard (purple) 1 x PS/ 2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.0 (blue) Type-A 2 x USB 2.0 1 x 8-channel Audio I/ O Internal I/ O Ports 2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 s M Key, type 2242/ 2260/ 2280 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 s M Key, type 2242/ 2260/ 2280 storage devices support (both SATA & x2 PCIE mode) 1 x TPM header 6 x SATA 6Gb/ s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (2 x 4 -pin) 1 x S/ PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Mono Out header Accessories User s manual I/ O Shield 2 x SATA 6Gb/ s cable(s) 2 x M.2 screws 1 x SCD BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information Manageability WfM 2.0, DMI 3.0, WOL by PME, PXE Operating System Windows® 10 64-bit Windows® 8.1 64-bit *4 Windows® 7 32-bit *4 Windows® 7 64-bit *4 Note 1 When a device in SATA mode is installed on the M.2_1 socket, SATA_1 port cannot be used. 2 When a device in SATA mode is installed on the M.2_2 socket, SATA_6 port cannot be used. 3 Only M.2_1 socket can support Intel® Optane Memory. Intel® Optane Technology is only supported when using 7th Generation Intel® processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website. 4 Windows® 8.1 64-bit and Windows® 7 32/ 64-bit are only supported when using 6th Generation Intel® Processors Ďalšie informácie výrobcu: Najpredávanejší tovar s podobnou cenou: Základné dosky (MB) - MB socket Intel 1151 s podobnou cenou ± 20%Cenovo podobné ASUS PRIME H270-PLUS[najžiadanejšie 5]
