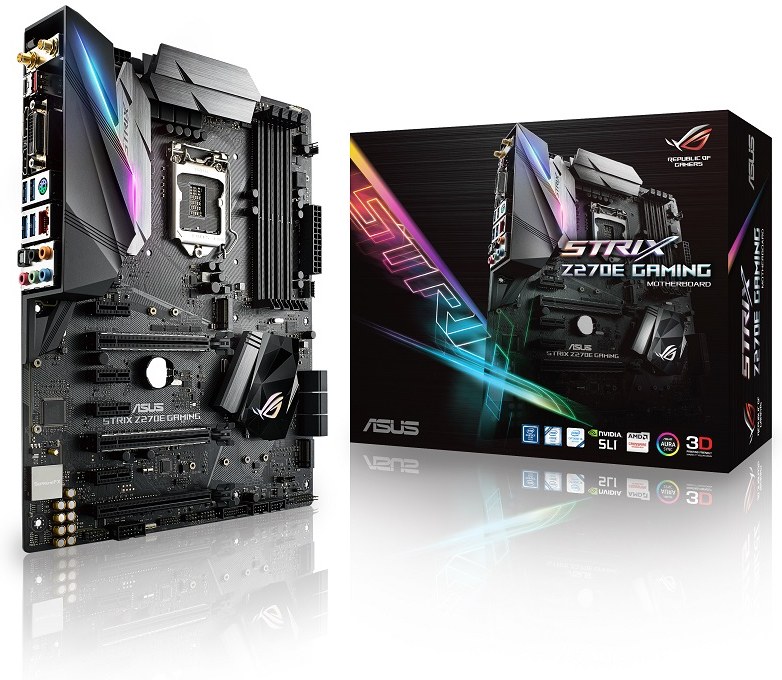

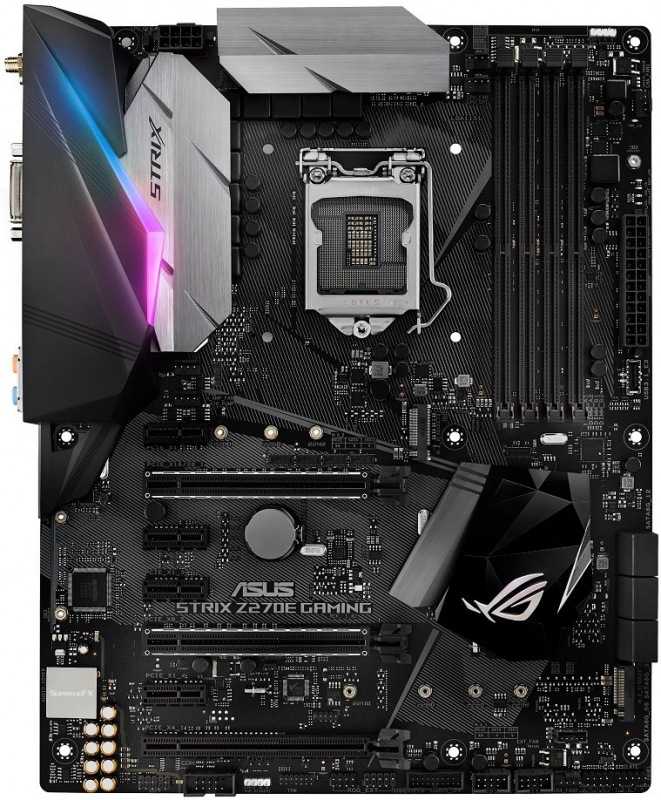

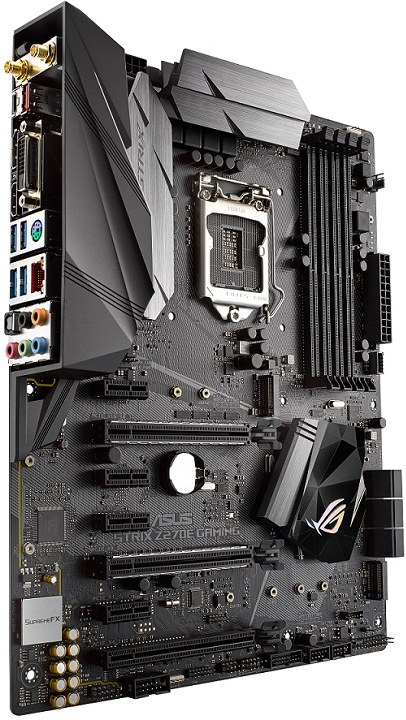

ASUS STRIX Z270E GAMING | 90MB0RN0-M0EAY0

CPU

Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Refer to www.asus.com for CPU support list

Chipset
Intel® Z270

Memory
4 x DIMM, Max. 64GB, DDR4 3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133(O.C.) MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphic
integrovaná Graphics Processor- Intel® HD Graphics support
Multi-VGA output support: HDMI/DVI-D/DisplayPort ports
- Supports HDMI s max. resolution 4096 x 2160 @ 24 Hz
- Supports DVI-D s max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort s max. resolution 4096 x 2304 @ 60 Hz *1
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports až do 3 displays simultaneously

Multi-GPU Support
Supports NVIDIA® 2-Way SLI™ Technology
Supports AMD 3-Way CrossFireX™ Technology

Expansion Slots
2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 3.0/2.0 x16 (x4 mode)
4 x PCIe 3.0/2.0 x1

Storage
Intel® Z270 Chipset:
1 x M.2 Socket 3, s M Key, type 2242/2260/2280 storage devices support (PCIE mode only)*2
1 x M.2 Socket 3, s M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*3
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology*4
Intel® Optane™ Memory Ready *5

LAN
Intel® I219V
Anti-surge LANGuard
ROG GameFirst Technology

Wireless Data Network
Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO

Bluetooth
Bluetooth V4.1

Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual Headphone Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- Supports až do 32-Bit/192kHz playback *6
Audio Feature:
- SupremeFX Shielding™ Technology
- Optical S/PDIF out port(s) at back panel
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound s exceptional clarity and fidelity
- Sonic Radar III
- Sonic Studio III

USB Ports
Intel® Z270 Chipset:
6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board)
Intel® Z270 Chipset:
6 x USB 2.0 port(s)
ASMedia® USB 3.1 controller: *7
1 x USB 3.1 front panel connector port(s)
ASMedia® USB 3.1 controller:
2 x USB 3.1 port(s) (Type-A + Type-C, Support 3A power output)

ROG Exclusive Features
ROG RAMCache II
ROG CPU-Z
ROG CloneDrive
Overwolf
GameFirst IV
ROG Aura
- Aura Lighting Control
- Aura RGB Strip Headers

Special Features
OC Design - ASUS PRO Clock Technology
- Full BCLK range for extreme overclocking performance
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization s a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
TPU
- Auto Tuning, TurboV, GPU Boost
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors
Gamer s Guardian:
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
- SafeSlot
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
- ESD Guards
- PC Cleaner
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design:
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Gaming Aesthetics:
- 3D printing friendly
- AURA-RGB Lighting
Digi+VRM
Turbo APP
M.2 Onboard(The latest transfer technologies s až do 32Gb/s data transfer speeds)

Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x DisplayPort
1 x HDMI
2 x USB 3.1 Type-A + Type-C
4 x USB 3.0 (blue)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0

Internal I/O Ports
1 x AAFP connector
1 x RGB Header(s)
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x M.2 Socket 3 s M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
1 x M.2 Socket 3 s M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x DRCT header(s)
1 x Thermal sensor connector(s)
1 x CPU OV
1 x ROG extension (ROG_EXT) header(s)
1 x 14-1 pin TPM connector
1 x COM port header
1 x High AMP Fan header (4-pin)
1 x T_Sensor Connector
1 x AIO PUMP Header
3 x 3D Mount screw port(s)
1 x USB 3.1 front panel connector

Accessories
User s manual
ASUS Q-Shield
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x CPU installation tool
1 x Supporting DVD
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x SLI HB BRIDGE(2-WAY-M)
1 x ROG Strix stickers
1 x 10-v-1 ROG cable label
1 x Extension Cable for RGB strips (80 cm)
1 x 3D printing mount package
1 x ROG coasters

BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.

Manageability
WfM2.0, DMI3.0, WOL by PME, PXE

Operating System
Windows® 10 64-bit
Windows® 8.1 64-bit *8
Windows® 7 32-bit *8
Windows® 7 64-bit *8

Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Note
1 DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain až do 3 displays.
2 The M.2_1 socket shares SATA_1 port when use M.2 SATA mode device. Adjust BIOS settings to use a SATA device.
3 The M.2_2 socket shares SATA_56 ports when use M.2 PCIE mode device in X4 mode. Adjust BIOS settings to use SATA devices.
4 These functions will work depending on the CPU installed.
5 Intel® Optane Technology only supported when using 7th Generation Intel® Processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.
6 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
7 The USB 3.1 front panel connector shares bandwidth s PCIE_x1_2 and PCIE_x1_4. If the USB 3.1 front header is connected, PCIE_x1_2 and PCIE_x1_4 will be
disabled.
8 Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors.
9 ROG GameFirst IV is only available for Windows® 10/8.1 64-bit
10 Support for the Bluetooth specification depends on the Windows version. Win7/8.1 support až do Bluetooth 4.0.
