Rack PDU, Switched, 1U, 16A, 208 / 230V, AP7921B | AP7921B

PŘEHLED

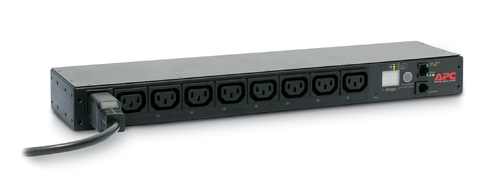

The APC by Schneider Electric Switched Rack Power Distribution Unit (PDU) distributes power
to devices in the rack. It can be monitored through Web, Telnet, SNMP, SSH, StruxureWare Data
Center Expert® interfaces.
Outlets: The outlets connect the Rack PDU to equipment in your rack or enclosure. Each outlet
allows independent control of the connected equipment and the Rack PDU firmware also
provides Outlet User accounts. The PDU has eight IEC-320-C13 outlets.
Power cord: The Rack PDU has an IEC-320-C20 inlet on the front of the unit to connect to the
power cord. The power cord connects the Rack PDU to one power source. The cord connects to
the front of the Rack PDU for easier mounting and user access. The 8 foot (2.4 meter) cord
terminates with a C20 plug.
Digital display: The digital display shows the aggregate current being used by the Rack PDU.

TECHNICKÁ SPECIFIKACE

*Input connectors
IEC-320-C20 inlet
*Output connectors
Eight IEC-320-C13 outlets
*Cord length
2.4 m
*Nominal input voltage
208-230 VAC
*Acceptable input voltage
200-240 VAC
*Input frequency
50/ 60 Hz
*Maximum current
16A max total; 12A max/ outlet (UL)
12A max total; 12A max/ outlet (cUL)
16A max total; 10A max/ outlet (VDE)
*Size
(H × W × D)4.45 × 44.45 × 10.80 cm
*Weight
2.26 kg
*Shipping weight
3.4 kg
*Elevation (above MSL):
Operating: 0 to 10, 000 ft (0 to 3000 m)
Storage:0 to 50, 000 ft (0 to 15 000 m)
*Temperature:
Operating: -5 to 45° C
Storage: -25 to 65° C
*Humidity:
Operating: 5 to 95%, non-condensing
Storage:5 to 95%, non-condensing
*Safety
UL, cUL, CE, VDE
*EMC
FCC Part 15 Class A, ICES-003, VC
