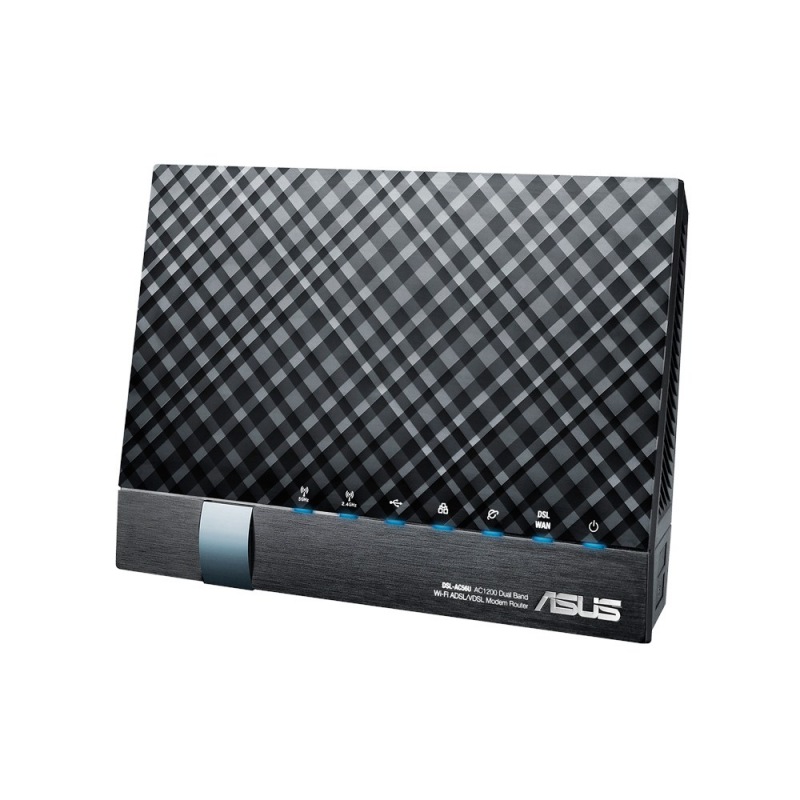

ASUS Dual-B VDSL2 / ADSL AC1900 router DSL-AC56U | 90IG01E0-BM3000

DSL-AC56U


DSL-AC56U 802.11ac Dual-Band VDSL/ ADSL Modem Router

*Concurrent Dual Band: 867Mbps on 5GHz and 300Mbps on 2.4GHz
*Two WAN ports for DSL and Ethernet offer double the choice – wireless router or DSL modem
*Compatible with VDSL2, ADSL2/ 2+, ADSL, fiber and cable services for complete future-proofing
*Gigabit Ethernet ports for the fastest, most reliable internet performance
*Dual multi-purpose USB ports support file sharing, printer sharing, media streaming and 3G/ 4G support
*VDSL/ ADSL WAN multi service for IPTV support
*PPTP VPN server and VPN client support
*Download Master and enhanced media server let you download and stream anywhere
*ASUS AiCloud lets you access, sync, share and stream data anywhere

Network Standard
*IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.3, IEEE 802.3u, IEEE 802.11i, IEEE 802.11e, IPv4, IPv6

Product Segment
*AC1200 enhanced AC performance : 300+867 Mbps
Wi-Fi Data Rate
*802.11a : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*802.11b : 1, 2, 5.5, 11 Mbps
*802.11g : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*802.11n : up to 300 Mbps
*802.11ac : up to 867 Mbps

xDSL Data Rate
*DSL2/ ADSL2+/ ADSL2/ ADSL multimode
*Support Annex A/ B/ I/ J/ L/ M
*Support all VDSL2 profiles -8a, 8b, 8c, 8d, 12a, 12b, 17a and 30a
*VDSL2 interface compliance with ITU-T G.993.2
*ITU-T G.992.1 (G.dmt), Annex A, and B Compliant
*ITU-T G.992.2 (G.lite), Annex A, and B Compliant
*ANSI T1.413 Compliant
*TU-T G.992.3 (ADSL2) Compliant, Annex A, B, L, and M
*ITU-T G.992.5 (ADSL2+) Compliant, Supporting Annex A, B, and M
*ITU-T G.993.2 Compliant, Annex A, B
*ITU-T G.993.5 (Vectoring)
*ITU-T G.998.4 (G.inp) Improved impulse noise protection
*ATM and PTM (dual-priority)

*VDSL2 Upstream: 150Mbps, Downstream: 200Mbps
*ADSL2+ Upstream: 3.3Mbps, Downstream: 24Mbps
*ADSL2 Upstream: 3.5Mbps, Downstream: 12Mbps

Features
*DHCP server, firewall/ NAT, DynDNS
*VPN server(PPTP)
*VPN client(PPTP/ L2TP)
*Dual WAN Fail over/ Fail back/ Load balance
*Traffic monitor/ Quality of Service (QoS)
*DSL spectrum
*IPTV(VDSL/ ADSL WAN)
*DSL feedback mechanism
*Save/ Resotre configuration file
*WiFi Bandwidth Limiter

Antenna
*Internal dBi antenna x 4

LED Indicator
*Power, Internet, LAN x 1, xDSL, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi, USB x 1

Button
*WPS Button, Reset Button, Power Button, Wireless on/ off Button

Ports
*4 x RJ45 10/ 100/ Gigabits BaseT for LAN
*1 x RJ45 10/ 100/ Gigabits BaseT for WAN
*1 x RJ11 for xDSL

USB Ports
*USB 2.0 x 2

USB Applications
*Printer Server
*FTP Server
*Download Master
*3G/ 4G sharing

Router Special Features
*3G/ 4G data sharing, AiCloud, Printer server, Download Master, AiDisK, Multiple SSIDs, Parental Control

Operating Frequency
*2.4GHz
*5GHz

Operation Channel
*13 Europe (ETSI)

Memory
*128MB NAND flash/ 256MB DDR3

Output Power
*ac mode : 18 dBm
*b mode : 20.5 dBm
*g mode : 18.5 dBm
*n mode : 17.5 dBm
*a/ n mode : 20 dBm

Security
*64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK

Management
*Web-based GUI configuration
*Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI
*UPnP IGD 1.0
*Auto VPI/ VCI detection
*Configuration backup and restore
*Diagnostics
*Log & Trace function

Utilities
*Download master:
*Support BT, NZB, HTTP, ED2K
*Support encryption, DHT, PEX and magnet link
*Upload and download bandwidth control
*Download scheduling

*Media server:
*Image: JPEG
*Audio: mp3, wma, wav, pcm, mp4, lpcm, ogg
*Video: asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov

*Printer Server:
*Multifunctional printer support(Windows only)
*LPR protocol support

VPN Support
*IPSec Pass-Through
*PPTP Pass-Through
*L2TP Pass-Through
*PPTP server
*PPTP client
*L2TP client

Power Adapter
*AC Input : 110 ~240 V(50~60HZ)
*DC Output : 12 V/ 2 A
*Power Consumption : 24 W Max.

Certificates
*CE, C-Tick, Telepermit

Dimensions
*14.7 x 20.5 x 6.6 ~ cm (WxDxH)

Weight
*400 g (Device Only)

OS Support
*Windows® 10
*Windows® 8.1
*Windows® 8
*Windows® 7
*Windows® Vista
*Windows® 2000
*Windows® XP
*Mac OS X 10.1
*Mac OS X 10.4
*Mac OS X 10.4
*Mac OS X 10.5
*Mac OS X 10.6
*Mac OS X 10.7
*Mac OS X 10.8

Package Content
*DSL-AC56U Dual-band 802.11ac VDSL/ ADSL Modem Router
*RJ-45 cable
*RJ-11 cable
*Support CD(User manual and utility)
*Power adapter
*Warranty card
*Quick start guide
*Splitter (varies with regions)
