AirLive FE-201DM, FiE.Dome, 2M, ID, f1.25mm, PoE / DC, WDR | FE-201DM

Airlive FE-200DM kam 2MPx Indoor FishEye PoE


PŘEHLED
* Maximum 15fps@1440x1440
* H.264 MPEG4 and MJPEG Encoder
* Hardware Dewarp via Fisheye Processor
* Minimum 0.1 Lux for Night Vision
* ROI (Region of Interest) with e-PTZ Function
* Removable IR-Cut Filter
* WDR Enhancement
* Up to 64GB MicroSD Card Local Storage
* 802.3af PoE
* OnVIF Supported


SPECIFIKACE
Model
* FE-201DM

Camera
* Camera Type
- Fisheye Type

* Image Sensor
- 1 / 2.5” CMOS Sensor

* Max. Resolution
- 1440x1440

* Field of View
- 180& deg; (Horizontal/ Vertical/ Diagonal)

* Lens Type
- 1.25 mm

* Day/ Night
- Removable IR-Cut for Day/ Night image

* WDR Enhancement
- Yes

* Minimum Illumination
- Color: 1.9 Lux@F2.0
- B/ W: 0.1 Lux @F2.0

* Mechanical IR-Cut Filter
- Yes

* Pan/ Tilt/ Zoom
- E-PTZ with 10x Digital Zoom

Video
* Video Compression
- H.264, MJPEG & MPEG4

* Video Mode
- 360& deg; Source View, 360& deg; Broad View,
- 180& deg; Double Broad View,
- Triple View, Quad View,
- 3 PTZ with Source View

* Resolution and Frame Rate
- 15fps@ 1440x1440
- 15fps@ 1600x1200
- 15fps@ 1280x1024
- 15fps@ 800x600
- 15fps@ 640x480

* Streaming
- 3 simultaneous streams at Normal Mode
- Streaming over UDP, TCP, HTTP
- ROI (Region of Interest)
- Configurable frame rate and bandwidth
- Support CBR and VBR

* Image Setting
- AE, AWB
- Noise Reduction
- Exposure Value / Saturation / Brightness / Sharpness / Contrast
- Auto gain control
- Mirror / Flip
- EV luminance control
- Privacy Mask
- Text, Time and Date OSD

* ROI
- ROI with E-PTZ

* Digital Zoom
- 10x

Network
* Ethernet
- 10/ 100M Auto Negotiation

* Network
- IEEE 802.3af PoE

* Protocols
- HTTP, HTTPS, TCP/ IP, IPv4, UDP, SMTP, FTP, DHCP, DDNS, NTP, DNS, ARP, RTSP, RTP, UPnP, OnVIF (Profile S), Multicast

* Users
- 10 Simultaneous Unicast Users

* Security
- Password Protection
- IP Address Filtering
- User Access Log

Audio
* Audio Encoder
- G.711u

* Audio Streaming
- Two-Way Audio

* Audio Input / Output
- Built-in Microphone and Speaker

System Integration
* Software
- CamPro Express 64, CamPro Professional
- Search & Installation- IP Wizard II

* Event Triggers
- Motion detection
- Manual trigger
- Periodical trigger
- Digital input
- System boot
- Recording notification

* Motion Detection
- Up to 10 zones

* Application Programming Interface
- OnVIF
- Open API for Software Integration

* Video Buffer
- Max. 10sec Pre-Alarm
- Max. 10sec Post-Alarm

* Alarm Events
- HTTP, SMTP, FTP and NAS server

* Continuous Recording
- Continue Recording to MicroSD / NAS server

* Certificate
- CE, FCC Class B, LVD

Viewing System
* OS
- Windows® 2000, XP, Vista, 7, 8

* Browser
- IE 7.0 or later, Firefox, Safari, Chrome

* Mobile Device
- iOS, Android

General
* Power Supply
- DC 12V/ 1A
- 802.3af PoE

* Power Consumption
- Max. 5.1W (DC12V)
- Max 5.3W (PoE)

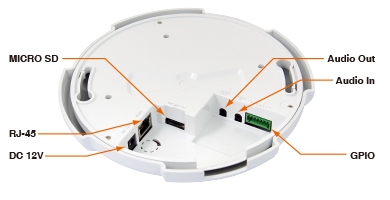

* Connectors
- RJ-45 cable connector for Network/ PoE connection
- Audio input
- Audio output
- DC 12V power input
- Digital input*1
- Digital output*2
- MicroSD Card Slot
- Reset Button

* Environment
- Operation Temp: 0& deg;C ~ 50& deg;C
- Humidity: 10% ~ 80%

* Dimensions
- 196 x 57.3mm

* Weight
- 350g

* MicroSD card slot
- SDHC/ SDXC 64GB
