AirLive POE OD-2000PE | OD-2000PE

OD-2000PE


PŘEHLED

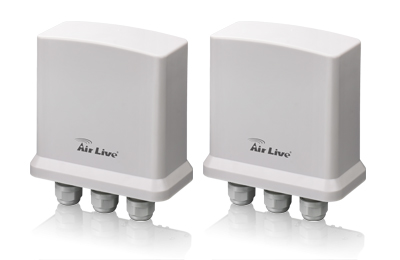

AirLive PoE Extender designed to extend the PoE distance for the application without any additional power source. AirLive PoE extender series can obtain a maximum of 60-watt PoE power from PoE input port and supplies a maximum of 48 watt PoE power output which is very useful for the power consumption PoE devices such as Speed Dome. In addition , AirLive PoE extender extend another 100m for both the Ethernet Data and Power over the standard 100m (328 ft.) CAT. 5/ 5e/ 6 UTP cable.
AirLive PoE Extender can extend connection between AirLive Access Point or IP cameras and 802.3at/ af PoE switch up to 300m. It is very useful for the application which can not find the power source nearby deployment area.

Základní přehled
*Work with 802.3at/ af PoE switch or PoE injector
* Support 802.3at/ af cameras or access point
* Access up to 60W input
* Support 48V passive PoE

Technické specifikace

PoE output Port
* 2
Data Out Port
* 2
Max. Data Rate
* 10/ 100 Mbps
Max. Distance
* 300 m
Input Power requirement
* 45~55 V
PoE Output
* 12~48 W
Housing
* IP65
Operating Temp
* 0 to 50
Dimension (mm)
* 180x165x95
