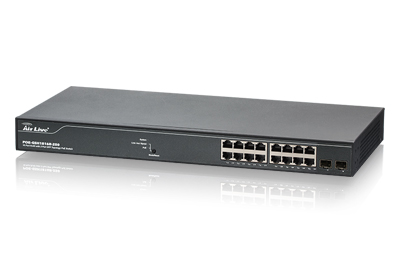

18-port Gigabit Topology Managed PoE Switch | POE-GSH1816R-250

POE-GSH1816R-250

18-Port Gigabit Topology Device Manage PoE Switch including 2 Port SFP

Odkaz na web výrobce: http:/ / cz.airlive.com/ product/ POE-GSH1816R-250

Shrnutí vlastností
*16 Port 10/ 100/ 1000Mbps + 2 Port SFP Port
*16 Port 802.3at/ af PoE port
*Power Budget up to 250W
*L2+ Smart manage features
*SNMP v1/ 2c/ 3 , Trap , RMON Supported
*Graphic Manage including the Topology View, Floor View and Map View
*Video Streaming for onvif cameras
*AirLive AC.TOP manage including the channel, Tx Power , security

Vlastnosti

*Automatically discover all network devices on your local network and draw out the topology diagram. Let you view and trouble shoot your network instantly.
*Display the status and perform simple configuration on your wireless AP or IP Cameras Show IP camera s live view video on the E-Map or Google Map.
*Display the network devices on a floor plan or on the Google Map. You can view the status and manage your device by clicking on the device icons.
*PoE-GSH1816R-250 can power up your PoE devices such as IP cameras or Access Point through the RJ45 cable with the gigabit connection. The total power supply is up to 250W which is enough if you use all of the port.
*Monitor your PoE network devices such as IP cameras or wireless Access Point. Reboot the device when it is not responding. This provide self healing network that save you cost from sending technician and fix the problems immediately.


Specifikace

SPECIFIKACE

Standardy
*IEEE802.3 10BASE-T
*IEEE802.3u 100BASE-TX/ 100BASE-FX
*IEEE802.3z Gigabit SX/ LX
*IEE802.3ab Gigabit 1000T
*IEEE802.3x Flow Control and Back pressure
*IEEE802.3ad Port trunk with LACP
*IEEE802.1d Spanning Tree Protocol
*IEEE802.1w Rapid Spanning Tree Protocol
*IEEE802.1s Multiple Spanning Tree Protocol
*IEEE802.1p Class of service
*IEEE802.1Q VLAN Tagging
*IEEE802.3at/ af PoE
Rozhraní
*16 x 10/ 100/ 1000Mbp RJ45 ports
*2 X SFP 100/ 1000Mbps ports ,
PoE ports
*16
Architektura switche
*Store a forward switch architektura
*Back-plane až 48Gbps
Kapacita switche a rychlost předávání
*Capacity in Million of Packets Per Second (Mpps) : 26.784 Mpps
*Switching Capacity in Gigabits per Second (Gbps) : 36 Gbps
PoE Power Output
*Max. 30 watts
PoE Power Budget
*250Watts
MAC adresa
*8K
Jumbo Frames
*až 9KB
Layer 2
*Spanning Tree
STP 802.1d
RSTP 802.1w
MSTP 802.1s
*Trunking:LACP IEEE802.3ad
Link Aggregation Control Protocol (LACP) IEEE 802.3ad
Static aggregation
*VLAN : Support for up to 4K VLANs simultaneously (out of 4096 VLAN ID)
Port-based VLAN
802.1Q tag-based VLAN
Protocol based VLAN
IP subnet-based VLAN
Private VLAN Edge (PVE)
Q-in-Q (double tag) VLAN
Voice VLAN
*DHCP Relay (Layer 2)
*IGMP snooping
v1/ v2/ v3
*IGMP Querier
*IGMP Proxy
*MLD v1/ v2 snooping
*Multicast VLAN Registration (MVR)
Layer 3
*IPv4 Static Routing
*IPv6 Static Routing
*DHCP Server
Bezpečnost
*Secure Shell (SSH)
*Secure Sockets Layer (SSL)
*Port Security
*IEEE 802.1X
*Layer 2 isolation Private VLAN Edge (PVE)
*IP Source Guard
*RADIUS
*DHCP Snooping
*Storm Control
*Loop Protection
QoS
*Hardware Priority Queue
Supports 8 hardware queues
*Scheduling
Strict priority and weighted round-robin (WRR)
*Queue assignment based on DSCP and class of service (802.1p/ CoS)
*Classification
Port based
802.1p VLAN priority based
*Rate Limiting
Ingress policer
Egress Shaping and Rate Control
per VLAN, per port and flow based
IPv6 aplikace
*Web/ SSL
*SNTP (Simple Network Time Protocol)
*SNMP
v1/ v2c/ v3
*RADIUS
*Syslog
*Protocol-based VLANs
*TFTP (Tricial File Transfer Protocol)
Funkce
*Web GUI Interface
*DHCP Server
*Remote Monitoring (RMON)
*Port Mirroring
*Topolog View, Floor View MAP View
*Dual Image
*SNMP v1, v2c, and v3
*UPnP
PoE
*Port Configuration
Supports per port PoE configuration function
*PoE Scheduling
Supports per port PoE scheduling to turn on/ off the PoE devices (PDs)
*Auto-checking
Check the link status of PDs. Reboot PDs if there is no responses
*Power Delay
The switch provides power to the PDs based on delay time when PoE switch boots up, in order to protect switch from misuse of the PDs
Prohledávání sítě
*LLDP with LLDP-MED extensions
Napájení
*100-240 VAC 50~60Hz, Internal
Rozměry
*442(W)x 44(H)x 211(D) mm
Provozní teplota
*0 C to 50 C
Skladovací teplota
*-20 C to 70 C
Velikost balení
*52 x 30 x 9 cm
Hmotnost balení
*3, 2 kg
Obsah balení
* POE-GSH1816R-250, QIG x1, Power cord x1, Mounting Kit x1
