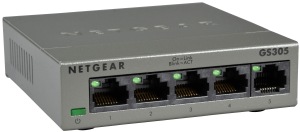

NETGEAR, 5PT GE UNMANAGED SW METAL LP, GS305 | GS305-100PES

OVERVIEW


The NETGEAR SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to small offices and home/ offices. They are easy to use, reliable, and rugged with metal enclosures. Power-Over-Ethernet (PoE) support is also available for supplying both power and data across a single CAT-5 ethernet cable to devices such as IP security cameras, VOIP phones, wireless access points, etc. With these Plug-N-Play switches, you can quickly and easily expand your network connections to multiple devices, with no configuration required. These switches also support various energy saving technologies, helping you save power and money.

*Choice of Fast Ethernet and Gigabit Ethernet connectivity
*Energy-efficient technology for power savings
*Auto-MDI/ MDIX eliminates the need for crossover cables
*Non-blocking switching architecture for maximum throughput at wire speed
*Auto-negotiation for automatic connection at the highest common speed between switch and an end device
*Power-Over-Ethernet (PoE) option available for powering IP Security Cameras, VOIP phones, wireless access points, and other PD-powered devices
*Fanless design for silent operation
*Desktop or wall-mountable

NETGEAR Warranty
*These products are backup by a NETGEAR limited Hardware Warranty up to 2 years (depending on model and region).
*24/ 7 basic technical support provided for 90 days from purchase date, when purchased from a NETGEAR authorized reseller

TECH SPECS

Product Number
*GS305
Model Description
*5-Port Gigabit Ethernet Switch
Speed
*Gigabit
Number of Ports
*5
PoE Ports / Max Power Per Port
*n/ a
PoE Max Power Supplied (All Ports)
*n/ a
Connector Type
*Plastic
Switch Housing
*Metal
LEDs
*Power, Link/ Activity
Short cable power saving
*Yes
Energy Efficient Ethernet Support (IEEE 802.3az)
*Yes
Jumbo Frame Support
*9, 216 bytes
MAC Table Size
*2K
Packet buffer size
*1 Mbit
DC Power Adapter
*5V / 0.7A
Max Power Consumption (Watts)
*2.34W
Acoustic Noise Level @ 25& deg; C (dBA)
*0 dBA (Fanless)
Operating Temperature
*0& deg; to 40& deg;C
MTBF (@ 25& deg; C)
*3, 670, 230 hours
Electromagnetic compliance (A or B)
*Class B
Form Factor
*Desktop or wall-mountable
Dimensions (W x D x H)
*101 x 94 x 29 mm
Weight
*0.24 kg

WEBSITE
*Technical specification: http:/ / www.netgear.com/ home/ products/ networking/ switches/ soho-ethernet-switches/ GS305.aspx#tab-techspecs
