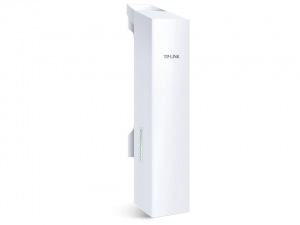

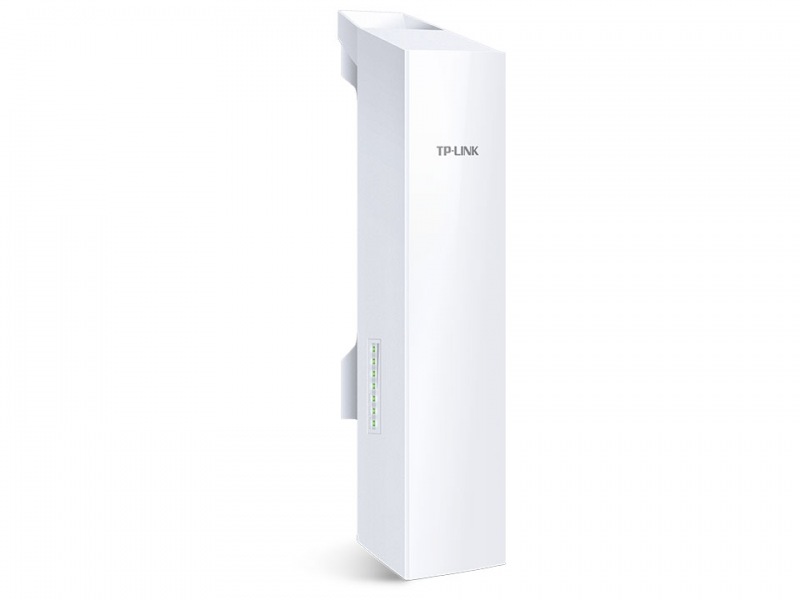

TP-Link CPE220 Outdoor 2, 4GHz 300Mbps | CPE220

Venkovní CPE zařízení 2.4GHz 300Mbit/ s 12dBi

CPE220

- Vestavěná 12dBi 2x2 směrová MIMO anténa s dvojitou polarizací
- Nastavitelný výkon vysílání od 0 do 30dBm/ 1000mWOptimalizace na úrovni systému pro více než 13km dosah bezdrátového přenosu
- Technologie TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) zlepšuje výkon zařízení co se týče propustnosti, kapacity a latence, ideální pro aplikace PTMP
- Centralizovaný sytém ovládání - řízení Pharos
- Provozní režimy AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP)
- Pasivní PoE adaptér podporuje napájení přes Ethernet až na 60 metrů a umožňuje vzdálené resetování zařízení

HARDWARE FEATURES

Processor Qualcomm Atheros 560MHz CPU, MIPS 74Kc
Memory 64MB DDR2 RAM, 8MB Flash
Interface:
- 1 10/ 100Mbps Shielded Ethernet Port (LAN0, Passive PoE in)
- 1 10/ 100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)
- 1 Grounding Terminal
- 1 Reset Button
Power Supply:
- Passive Power over Ethernet via LAN0 (+4, 5pins; -7, 8pins)
- Voltage range: 16-27VDC
Dimensions (W X D X H) 11×3.1×2.1 inch (276×79×60 mm)
Power Consumption 10.8 Watts Max, Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Antenna Type:
- Built-in 12dBi 2x2 Dual-polarized Directional Antenna
- Beam Width: 60° (H-Plane) / 30° (E-Plane), Note: For more details, please refer to datasheet
Protection:
- 15KV ESD Protection
- 6KV Lightning Protection
Enclosure:
- Outdoor ASA stabilized plastic material
- IPX5 waterproof Certification

WIRELESS FEATURES

Wireless Standards IEEE 802.11b/ g/ n (with Pharos MAXtream disabled)
Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds:
- Up to 300Mbps (40MHz, Dynamic)
- Up to 144.4Mbps (20MHz, Dynamic)
- Up to 72.2Mbps (10MHz, Dynamic)
- Up to 36.1Mbps (5MHz, Dynamic)
Frequency 2.4~2.483GHz, Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
Transmission Power 30dBm/ 1000mw (Adjustable power by 1dBm), Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.

SOFTWARE FEATURES

Wireless Configurations:
- Pharos MAXtream TDMA Technology
- 802.11b/ g/ n Modes
- Selectable Channel Width: 5/ 10/ 20/ 40MHz
- Automatic Channel Selection
- Transmission Power Control
- Dynamic Frequency Selection (DFS)
- WDS Enable/ Disable
- Security: WPA/ WPA2, WPA-PSK/ WPA2-PSK (AES/ TKIP) Encryption, 64/ 128/ 152-bit WEP Encryption
- SSID Broadcast Enable/ Disable
- Multi-SSID with VLAN Tagging (AP mode only)
- Distance/ ACK Timeout Setting
- Wireless MAC Address Filter
- Wireless Advanced:
> Beacon Interval/ RTS Threshold/ Fragmentation
> Threshold/ DTIM Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia
Management:
- Discovery and Remote Management via Pharos Control application
- HTTP/ HTTPS Web-based management
- System Log
- SNMP Agent(v2c)
- Ping Watch Dog
- Dynamic DDNS
- SSH Server
System Tools:
- Wireless Signal Quality Indicators:
- Signal Strength/ Noise/ Transmit CCQ/ CPU/ Memory
- Monitors: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP
- Spectrum Analyzer
- Speed Test
- Ping
- Traceroute
System-level Optimizations:
- Optimized IGMP Snooping/ Proxy for multicast applications
- Hardware watch dog

POE ADAPTER FEATURES

Interfaces:
- 1 AC Jack with Earth Ground
- 1 10/ 100Mbps/ 1000Mbps Shielded Ethernet Port (Power + Data)
- 1 10/ 100Mbps/ 1000Mbps Shielded Ethernet Port (Data)
Efficiency >80%
Button Remote Reset Button
Certifications CE/ FCC/ UL/ IC/ GS/ PSB/ C-tick/ SAA/ S-Mark/ KC-mark
Power Status LEDs:
- 0~0.8A: Green
- 0.8A~1.0A: Red
Output 24VDC, 1.0A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Input Voltage 100VA~240VAC @ 50Hz~60Hz
Dimensions(W x D x H) 110×57×33.5mm
Input Current 0.8A Max @ 100VAC
Input 100-240VAC, 50/ 60Hz
Output Voltage 24VDC(+4, 5pins; -7, 8pins)

OTHERS

Certification CE, FCC, RoHS, IPX5
Package Contents:
- Outdoor Wireless CPE
- 24V 1A Passive PoE Adapter
- Pole Mounting Straps
- AC Power Cord
- Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user
experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Environment:
- Operating Temperature: -30 C - 70 C
- Storage Temperature: -40 C - 70 C
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~95% non-condensing
