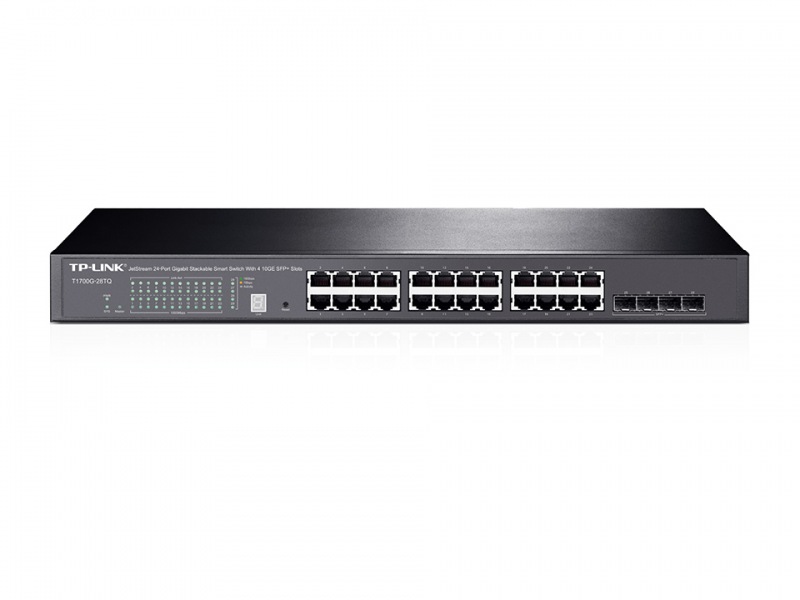

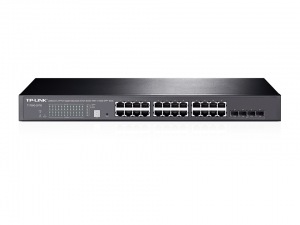

TP-Link T1700G-28TQ 24x Gbit Smart Switch + 4xSFP+ | T1700G-28TQ

JetStream 24-Port Gigabit Stackable Smart Switch with 4 10GE SFP+ Slots

T1700G-28TQ

- True physical stacking supports up to 6 units and 40Gbps bi-directional bandwidth for high scalability and efficient redundancy
- 10G SFP+ ports for stacking and/ or uplink, providing support for high-bandwidth applications for congestion relief and smooth data delivery
- L2+ feature, Static Routing help route internal traffic for more efficient use of network resources
- Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, and Radius Authentication
- IPv6 support provides dual IPv4/ IPv6 stacking, MLD snooping, and IPv6 neighbor discovery
- WEB/ CLI managed modes, SNMP, RMON, and Dual Image enhance management

HARDWARE FEATURES

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interfaces:
- 24 10/ 100/ 1000Mbps RJ45 Ports
- 4 fixed 10G SFP+ Slots
Network Media:
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- 100BASE-TX/ 1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
- 1000BASE-X: MMF, SMF
- 10GBASE-LR
- 10GBASE-SR
Fan Quantity Fanless
Power Supply 100-240V, 50/ 60Hz
Dimensions (W X D X H) 17.32 * 7.1 * 1.73 in. (440 * 180 * 44 mm)
Power Consumption 21.8W
Weight 2.8kg

PHYSICAL STACKING

Stacking Speed (Per Port) 20Gbps (Full-Duplex)
No. of Units Per Stack Up to 6 units
Installable SFP+ Transceivers and Direct Attach Copper (DAC) Cables:
- TXM431-SR
- TXM432-LR
- TXC432-CU1M
- TXC432-CU3M
Max Number of Stacking Ports Installable 2 SFP+

PERFORMANCE

Switching Capacity Up to 128Gbps for a standalone switch
Packet Forwarding Rate Up to 95.2Mpps for a standalone switch
MAC Address Table 16K
Packet Buffer Memory 1.5MB
Jumbo Frame 9KB
Number of Static Routes 32 IPv4
Number of IP Interfaces 16

SOFTWARE FEATURES

Quality of Service:
- Support 802.1p CoS/ DSCP priority
- Support 8 priority queues
- Queue scheduling: SP, WRR, SP+WRR
- Port/ Flow- based Rate Limiting
- IPv6 QoS*
- Voice VLAN
L2 and L2+ Features:
- Static Routing
- DHCP Relay*
- IGMP Snooping V1/ V2/ V3
- 802.3ad LACP (Up to 14 aggregation groups, containing 8 ports per group)
- Spanning Tree STP/ RSTP/ MSTP
- BPDU Filtering/ Guard
- TC/ Root Protect
- Loopback detection
- 802.3x Flow Control
- LLDP, LLDP-MED*
VLAN:
- Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
- MAC/ Protocol-based VLAN
Access Control List L2~L4 package filtering based on source and destination MAC address, IP address, TCP/ UDP ports IPv6 ACL*
Security:
- AAA
- Port Security
- DHCP Snooping
- IP-MAC-Port Binding
- ARP Inspection
- 802.1x and Radius Authentication
- SSH v1/ v2
- SSL v3/ TLSv1
- Broadcast/ Multicast/ Unknown-unicast Storm Control
- Dos Defend
IPv6:
- Dual IPv4/ IPv6 stack
- Multicast Listener Discovery (MLD) Snooping
- IPv6 neighbor discovery (ND)
- Path maximum transmission unit (MTU) discovery
- Internet Control Message Protocol (ICMP) version 6
- TCPv6/ UDPv6
IPv6 Applications:
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/ Https
- IPv6 TFTP
Management:
- Web-based GUI and CLI management
- SNMP v1/ v2c/ v3, compatible with public MIBs and
- TP-LINK private MIBs
- RMON (1, 2, 3, 9 groups)
- CPU Monitoring
- Port Mirroring
- Firmware Upgrade: TFTP & Web
- System Diagnose: VCT
- SYSLOG & Public MIBS
- Dual Image

OTHERS

Certification CE, FCC, RoHS
Package Contents:
- T1700G-28TQ
- Power Cord
- Installation Guide
- Resource CD
- Rackmount Kit
- Rubber Feet
System Requirements Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8/ 8.1, MAC® OS, NetWare®, UNIX® or Linux.
Environment:
- Operating Temperature: 0 C - 40 C
- Storage Temperature: -40 C -70 C
- Operating Humidity: 10%~90%RH non-condensing
- Storage Humidity: 5%~90%RH non-condensing
