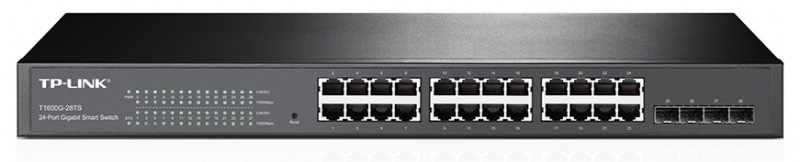

TP-Link T1600G-28TS(TL-SG2424) 28xGb + 4SFP smart | T1600G-28TS(TL-SG2424)

JetStream 24-Port Gigabit Smart Switch with 4 SFP Slots: T1600G-28TS (TL-SG2424)


PŘEHLED

TP-LINK JetStream Gigabit Smart Switch T1600G-28TS is a cost-effective product solution for small and medium-sized business which provides high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS and useful security strategies. Equipped with 24 gigabit RJ45 ports and 4 SFP slots, T1600G-28TS supports multiple useful features. Static Routing helps route internal traffic for more efficient use of network resources. The Storm Control feature protects against Broadcast, Multicast and Unknown unicast Storm. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Moreover, the easy-to-use web management interfaces, along with SNMP, RMON and Dual Image, mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive L2/ L2+ switch and gigabit capability, TP-LINK JetStream Gigabit Smart Switch T1600G-28TS provides you the ideal access-edge solution.
*Gigabit Ethernet connections on all ports provide full speed of data transferring
*L2+ Feature--Static Routing, helps route internal traffic for more efficient use of network resources
*Integrated security strategy including 802.1Q VLAN, Port Security and Storm control help protect LAN area investment
*L2/ L3/ L4 QoS and IGMP snooping optimize voice and video applications
*IPv6 support with dual IPv4/ IPv6 stack, MLD snooping, IPv6 neighbor discovery
*WEB/ CLI managed modes, SNMP, RMON and Dual Image bring abundant management features

TECHNICKÁ SPECIFIKACE

HARDWARE FEATURES
Standards and Protocols
* IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z,
* IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
* IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface
* 24 10/ 100/ 1000Mbps RJ45 Ports
* (Auto Negotiation/ Auto MDI/ MDIX)
* 4 Gigabit SFP Slots

Network Media
* 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
* 100BASE-TX/ 1000Base-T: UTP category 5, 5e or above cable
* (maximum 100m)
* 1000BASE-X: MMF, SMF
Fan Quantity
* Fanless
Power Supply
* 100~240VAC, 50/ 60Hz
Power Consumption
* Maximum: 23.2W (220V/ 50Hz)
Dimensions ( W x D x H )
* 440*180*44 mm
PERFORMANCE
Bandwidth/ Backplane
* 56Gbps
Packet Forwarding Rate
* 41.7Mpps
MAC Address Table
* 16k
Jumbo Frame
* 9216 Bytes
SOFTWARE FEATURES
Quality of Service
* Support 802.1p CoS/ DSCP priority
* Support 8 priority queues
* Queue scheduling: SP, WRR, SP+WRR
* Port/ Flow-based Rate Limiting
* Voice VLAN
L2 and L2+ Features
* Static Routing
* IGMP Snooping V1/ V2/ V3
* 802.3ad LACP(Up to 14 aggregation groups,
* containing 8 ports per group)
* Spanning Tree STP/ RSTP/ MSTP
* BPDU Filtering/ Guard
* TC/ Root Protect
* Loop back detection
* 802.3x Flow Control
VLAN
* Supports IEEE 802.1Q up with 4k VLANs simultaneously(out of 4K VIDs)
* Mac based VLAN
* Protocol Based VLAN
Access Control List
* L2~L4 package filtering based on source and destination MAC address, IP address, TCP/ UDP ports
Security
* SSH v1/ v2
* SSL v3/ TLSv1
* Port Security
* Broadcast/ Multicast/ Unknown-unicast Storm Control
* 802.1x and Radius Authentication
* IP-MAC-Port Binding
* ARP Inspection
* Dos Defend
IPv6
* Dual IPv4/ IPv6 stack
* Multicast Listener Discovery (MLD) Snooping
* IPv6 neighbor discovery (ND)
* Path maximum transmission unit (MTU) discovery
* Internet Control Message Protocol (ICMP) version 6
* TCPv6/ UDPv6
IPv6 Applications
* DHCPv6 Client
* Ping6
* Tracert6
* Telnet(v6)
* IPv6 SNMP
* IPv6 SSH
* IPv6 SSL
* Http/ Https
* IPv6 TFTP
Management
* Web-based GUI and CLI management
* SNMP v1/ v2c/ v3, compatible with public MIBs and
* TP-LINK private MIBs
* RMON (1, 2, 3, 9 groups)
* CPU Monitoring
* Port Mirroring
* Firmware Upgrade: TFTP & Web
* System Diagnose: VCT
* SYSLOG & Public MIBS
* Dual Image
OTHERS
Certification
* CE, FCC, RoHS
Package Contents
* T1600G-28TS
* Power Cord
* Installation Guide
* Resource CD
* Rackmount Kit
* Rubber Feet
System Requirements
* Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
Environment
* Operating Temperature: 0& deg;C~40& deg;C
* Storage Temperature: -40& deg;C~70& deg;C
* Operating Humidity: 10%~90% non-condensing
* Storage Humidity: 5%~90% non-condensing
