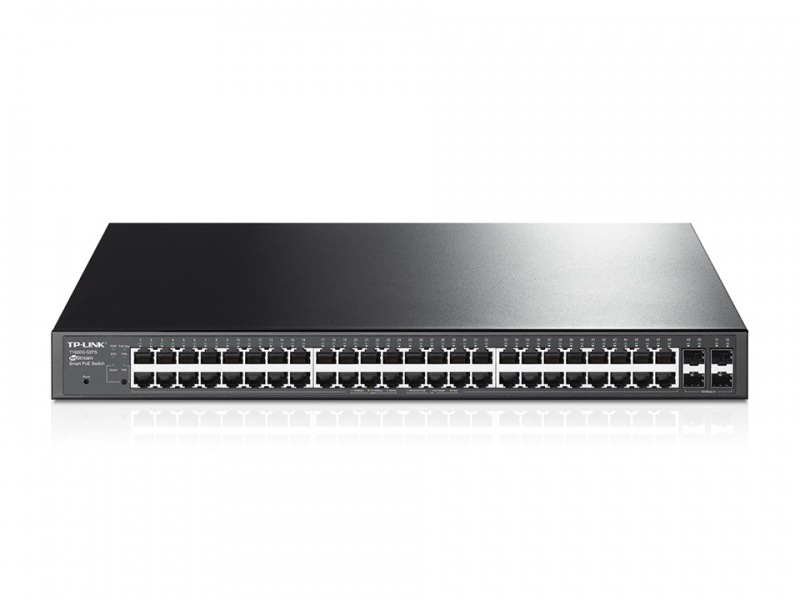

TP-Link T1600G-52PS 48xGb 4xSFP 384W POE SmartSw.
TP-Link T1600G-52PS 48xGb 4xSFP 384W POE SmartSw.Výrobca: TP-LINK
PN kód: T1600G-52PS(TL-SG2452P) OVERVIEW
48portový gigabitový chytrý PoE+ Switch JetStream se 4 SFP sloty: T1600G-52PS (TL-SG2452P) *Podporuje port PoE+ (napájené po ethernetových kabelech) vyhovující normě 48 802.3at/ af s celkovým 384W napájením *Funkce L2+--statické směrování, pomáhá směrovat tok dat pro efektivnější využití prostředků sítě *IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X a Radius Authentication vám poskytují silné bezpečnostní strategie *L2/ L3/ L4 QoS a IGMP snooping optimalizují hlasové a video aplikace *Podpora IPv6 s duálním IPv4/ IPv6 stack, MLD snooping, IPv6 neighbor discovery *WEB/ CLI řízené módy, SNMP, RMON a Dual Image přinášení bohaté funkce řízení TECHNICAL SPECS HARDWARE FEATURES Standards and Protocols * IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x Interfaces * 48 10/ 100/ 1000Mbps RJ45 Ports (Auto Negotiation/ Auto MDI/ MDIX) * 4 Gigabit SFP Slots Network Media * 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) * 100BASE-TX/ 1000Base-T: UTP category 5, 5e or above cable (maximum 100m) * 1000BASE-X: MMF, SMF Fan Quantity * 3 Power Supply * 100~240VAC, 50/ 60Hz Power Consumption * Maximum (PoE on): 470.4W (220V/ 50Hz) * Maximum (PoE off): 46.5W (220V/ 50Hz) PoE+ Ports(RJ45) * Standard: 802.3at/ af compliant * PoE+ Ports: 48 Ports * Power Supply: 384W Dimensions ( W x D x H ) * (440 x 330 x 44 mm) PERFORMANCE Bandwidth/ Backplane * 104Gbps Packet Forwarding Rate * 77.4Mpps MAC Address Table * 16K Jumbo Frame * 9KB SOFTWARE FEATURES Quality of Service * Support 802.1p CoS/ DSCP priority * Support 8 priority queues * Queue scheduling: SP, WRR, SP+WRR * Port/ Flow- based Rate Limiting * Voice VLAN L2 and L2+ Features * Static Routing * IGMP Snooping V1/ V2/ V3 * 802.3ad LACP (Up to 14 aggregation groups, containing 8 ports per group) * Spanning Tree STP/ RSTP/ MSTP * LLDP, LLDP-MED * BPDU Filtering/ Guard * TC/ Root Protect * Loopback detection * 802.3x Flow Control VLAN * Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) * MAC/ Protocol-based VLAN Access Control List * L2~L4 package filtering based on source and destination MAC address, IP address, TCP/ UDP ports Security * Port Security * IP-MAC-Port Binding * ARP Inspection * DHCP Snooping * 802.1x and Radius Authentication * SSH v1/ v2 * SSL v3/ TLSv1 * Broadcast/ Multicast/ Unknown-unicast Storm Control IPv6 * Dual IPv4/ IPv6 stack * Multicast Listener Discovery (MLD) Snooping * IPv6 neighbor discovery (ND) * Path maximum transmission unit (MTU) discovery * Internet Control Message Protocol (ICMP) version 6 * TCPv6/ UDPv6 IPv6 Applications * DHCPv6 Client * Ping6 * Tracert6 * Telnet(v6) * IPv6 SNMP * IPv6 SSH * IPv6 SSL * Http/ Https * IPv6 TFTP Management * Web-based GUI and CLI management * SNMP v1/ v2c/ v3, compatible with public MIBs and * TP-LINK private MIBs * RMON (1, 2, 3, 9 groups) * CPU Monitoring * Port Mirroring * Firmware Upgrade: TFTP & Web * System Diagnose: VCT * SYSLOG & Public MIBS * Dual Image OTHERS Certification * CE, FCC, RoHS Package Contents * T1600G-52PS * Power Cord * Installation Guide * Resource CD * Rackmount Kit * Rubber Feet System Requirements * Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux. Environment * Operating Temperature: 0& deg;C~40& deg;C * Storage Temperature: -40& deg;C~70& deg;C * Operating Humidity: 10%~90% non-condensing * Storage Humidity: 5%~90% non-condensing Najpredávanejší tovar s podobnou cenou: Sieťové LAN, Wi-Fi prvky - Prepínače - switche s podobnou cenou ± 20%Cenovo podobné TP-Link T1600G-52PS 48xGb 4xSFP 384W POE SmartSw.[najžiadanejšie 5]
