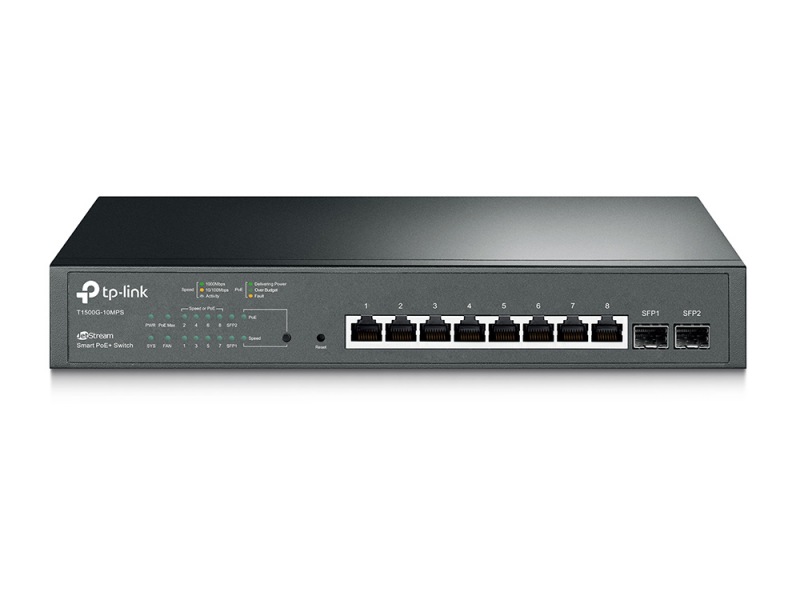

TP-Link T1500G-10MPS 8xGb 2xSFP POE smart sw. 116W | T1500G-10MPS

etStream 8-Port Gigabit Smart PoE+ Switch with 2 SFP Slots T1500G-10MPS


*Features 8 802.3af/ at compliant PoE+ ports, with total PoE power budget of 116W and useful PoE power management features
*Gigabit Ethernet connections on all ports provide full speed of data transferring
*Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, and Radius Authentication
*L2/ L3/ L4 QoS and IGMP snooping optimize voice and video applications
*WEB/ CLI managed modes, SNMP, RMON bring abundant management features
*Dual Firmware Image improves reliability and up-time of your network


*HARDWARE FEATURES
Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface: 8 10/ 100/ 1000Mbps RJ45 Ports, all supporting PoE+
2 100/ 1000Mbps SFP Slots
(Auto-Negotiation/ Auto MDI/ MDIX)
Network Media: 10BASE-T: UTP/ STP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/ 1000Base-T: UTP/ STP category 5, 5e or above cable (maximum 100m)
100Base-FX: MMF SFP Module
1000BASE-X: MMF, SMF
Fan Quantity: 1
Power Supply: 100-240V, 50/ 60Hz
Power Consumption: Maximum (PoE on): 136.6W (220V/ 50Hz)
Maximum (PoE off): 20.6W (220V/ 50Hz)
PoE+ Ports(RJ45): Standard: 802.3at/ af compliant
PoE+ Ports: 8 Ports
Power Supply: 116W
Dimensions ( W x D x H ): 11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm)

*PERFORMANCE
Switching Capacity: 20Gbps
Packet Forwarding Rate: 14.9Mpps
MAC Address Table: 8K
Packet Buffer Memory: 512KB
Jumbo Frame: 9KB

*SOFTWARE FEATURES
Quality of Service: 802.1p CoS/ DSCP priority
4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/ Flow- based Rate Limiting
Voice VLAN
L2 Features: IGMP Snooping V1/ V2/ V3
802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group)
Spanning Tree STP/ RSTP/ MSTP
BPDU Filtering/ Guard
TC/ Root Protect
Loop back detection
802.3x Flow Control
LLDP, LLDP-MED
VLAN: Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)
Access Control List: L2~L4 package filtering based on source and destination MAC address, IP address, TCP/ UDP ports
Security: Port Security
DHCP Snooping
IP-MAC-Port Binding
ARP Inspection
802.1x and Radius Authentication
SSH v1/ v2
SSL v3/ TLSv1
Broadcast/ Multicast/ Unknown-unicast Storm Control
Dos Defend
Management: Web-based GUI
Command Line Interface(CLI) through telnet
SNMP v1/ v2c/ v3, compatible with public MIBs and
TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
Dual Image

*OTHERS
Certification: CE, FCC, RoHS
Package Contents: T1500G-10MPS
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/ 8, MAC® OS, NetWare®, UNIX® or Linux.
Environment: Operating Temperature: 0?~40? (32?~104?);
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
