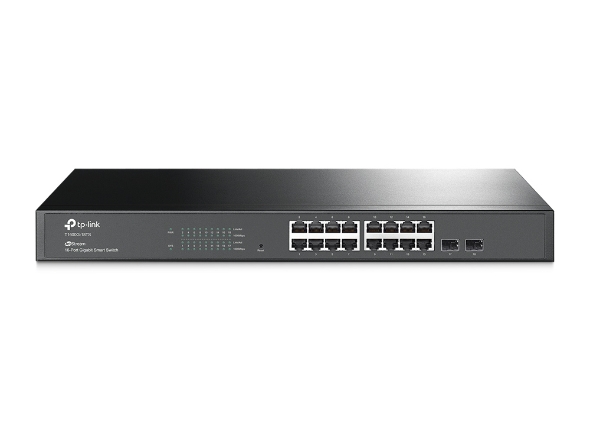

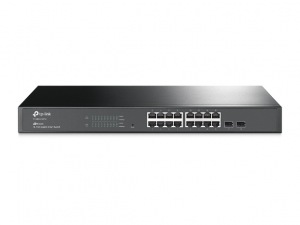

TP-Link T1600G-18TS 16xGigabit RJ45, 2xSFP | T1600G-18TS(TL-SG2216)

JetStream16-Port Gigabit Smart Switch with 2 SFP Slots


*Gigabit Ethernet connections on all ports provide full speed of data transferring
*L2+ Feature——Static Routing, helps route internal traffic for more efficient use of network resources
*Integrated security strategy including 802.1Q VLAN, Port Security and Storm control help protect LAN area investment
*L2/ L3/ L4 QoS and IGMP snooping optimize voice and video applications
*IPv6 support with dual IPv4/ IPv6 stack, MLD snooping, IPv6 neighbor discovery
*WEB/ CLI managed modes, SNMP, RMON and Dual Image bring abundant management features

HARDWARE FEATURES
Standards and Protocols
*IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z,
*IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
*IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface
*16 10/ 100/ 1000Mbps RJ45 Ports
*(Auto Negotiation/ Auto MDI/ MDIX)
*2 Gigabit SFP Slots
Network Media
*10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
*100BASE-TX/ 1000Base-T: UTP category 5, 5e or above cable
(maximum 100m)
*1000BASE-X: MMF, SMF
Fan Quantity
*Fanless
Power Supply
*100~240VAC, 50/ 60Hz
Power Consumption
*12.3W
Dimensions ( W x D x H )
*17.3*7.1*1.7 in. (440*180*44 mm)

PERFORMANCE
Bandwidth/ Backplane
*36Gbps
Packet Forwarding Rate
*26.8Mpps
MAC Address Table
*8K
Jumbo Frame
*9KB

SOFTWARE FEATURES

Quality of Service
*Support 802.1p CoS/ DSCP priority
*Support 8 priority queues
*Queue scheduling: SP, WRR, SP+WRR
*Port/ Flow- based Rate Limiting
*IPv6 QoS
*Voice VLAN
L2 and L2+ Features
*Static Routing
*DHCP Relay
*IGMP Snooping V1/ V2/ V3
*802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
*Spanning Tree STP/ RSTP/ MSTP
*BPDU Filtering/ Guard
*TC/ Root Protect
*Loopback detection
*802.3x Flow Control
*LLDP, LLDP-MED
VLAN
*Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
*MAC/ Protocol-based VLAN
Access Control List
*L2~L4 package filtering based on source and destination MAC address, IP address, TCP/ UDP ports
*IPv6 ACL
Security
*AAA
*Port Security
*DHCP Snooping
*IP-MAC-Port Binding
*ARP Inspection
*802.1x and Radius Authentication
*SSH v1/ v2
*SSL v3/ TLSv1
*Broadcast/ Multicast/ Unknown-unicast Storm Control
*Dos Defend
IPv6
*Dual IPv4/ IPv6 stack
*Multicast Listener Discovery (MLD) Snooping
*IPv6 neighbor discovery (ND)
*Path maximum tra nsmission unit (MTU) discovery
*Internet Control Message Protocol (ICMP) version 6
*TCPv6/ UDPv6
IPv6 Applications
*DHCPv6 Client
*Ping6
*Tracert6
*Telnet (v6)
*IPv6 SNMP
*IPv6 SSH
*IPv6 SSL
*Http/ Https
*IPv6 TFTP
Management
*Web-based GUI and CLI management
*SNMP v1/ v2c/ v3, compatible with public MIBs and
*TP-LINK private MIBs
*RMON (1, 2, 3, 9 groups)
*CPU Monitoring
*Port Mirroring
*Firmware Upgrade: TFTP & Web
*System Diagnose: VCT
*SYSLOG & Public MIBS
*Dual Image

OTHERS
Certification
*CE, FCC, RoHS
Package Contents
*T1600G-18TS
*Power Cord
*Installation Guide
*Resource CD
*Rackmount Kit
*Rubber Feet
System Requirements
*Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/ 8, MAC® OS, NetWare®, UNIX® or Linux.
Environment
*Operating Temperature: 0?~40? (32?~104?);
*Storage Temperature: -40?~70? (-40?~158?)
*Operating Humidity: 10%~90% non-condensing
*Storage Humidity: 5%~90% non-condensing
