TP-Link T2600G-18TS 16xGb L2 Switch, 2 Combo SFP | T2600G-18TS(TL-SG3216)

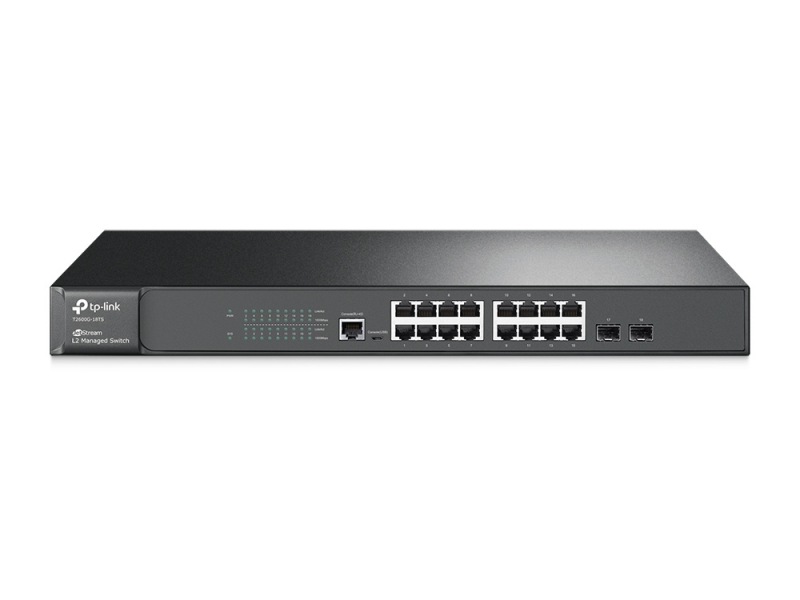

JetStream 16-Port Gigabit L2 Managed Switch with 2 SFP Slots


T2600G-18TS (TL-SG3216)

*16 Gigabit RJ45 Ports and 2 Gigabit SFP Slots
*Selectable RJ45 or Micro-USB Console Port
*L2+ feature——Static Routing, helps route internal traffic for more efficient use of network resources
*IP-MAC-Port-VID Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X Authentication and Radius provide you with robust security strategies
*L2/ L3/ L4 QoS and IGMP snooping that optimize voice and video application
*DDM provides monitoring of all SFP Modules inserted to the switch
*IPv6 supported with dual IPv4/ IPv6 stack, MLD snooping, IPv6 neighbor discovery
*Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image bring abundant management policies



HARDWARE FEATURES

Standards and Protocols
*IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface
*16 10/ 100/ 1000Mbps RJ45 Ports (Auto Negotiation/ Auto MDI/ MDIX)
*2 1000Mbps SFP Slots
*1 RJ45 Console Port
*1 Micro-USB Console Port
Network Media
*10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
*100BASE-TX/ 1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
*100BASE-FX: MMF, SMF
*1000BASE-X: MMF, SMF
Fan Quantity
*0
Power Supply
*100~240VAC, 50/ 60Hz
Power Consumption
*Maximum : 11.47W (220V/ 50Hz)
Dimensions ( W x D x H )
*17.3*8.7*1.7 in.(440*220*44 mm)


PERFORMANCE
Switching Capacity
*36Gbps
Packet Forwarding Rate
*26.78Mpps
MAC Address Table
*8k
Jumbo Frame
*9216 Bytes

SOFTWARE FEATURES
Quality of Service
*Support 802.1p CoS/ DSCP priority
*Support 8 priority queues
*Queue scheduling: SP, WRR, SP+WRR
*Port/ Flow- based Rate Limiting
*Voice VLAN
L2 and L2+ Features
*Static Routing
*DHCP Relay
*IGMP Snooping V1/ V2/ V3
*802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
*STP/ RSTP/ MSTP
*BPDU Filtering/ Guard
*TC/ Root Protect
*Loopback detection
*802.3x Flow Control
*L2PT
VLAN
*Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
*802.1Q/ MAC/ Protocol-based VLAN
*GARP/ GVRP
Access Control List
*L2~L4 package filtering based on source and destination MAC address, IP address, TCP/ UDP ports, 802.1p, DSCP, protocol and VLAN ID
*Time Range Based ACL
Security
*IP-MAC-Port Binding
*AAA
*802.1x and Radius Authentication
*DoS Defend
*Dynamic ARP Inspection (DAI)
*SSH v1/ v2
*SSL v3/ TLSv1
*Port Security
*Broadcast/ Multicast/ Unknown-unicast Storm Control
IPv6
*Dual IPv4/ IPv6 stack
*Multicast Listener Discovery (MLD) Snooping
*IPv6 neighbor discovery (ND)
*Path maximum transmission unit (MTU) discovery
*Internet Control Message Protocol (ICMP) version 6
*TCPv6/ UDPv6
*IPv6 ACL
*DHCPv6 Snooping
*IPv6 Interface
IPv6 Applications
*DHCPv6 Client
*Ping6
*Tracert6
*Telnet(v6)
*IPv6 SNMP
*IPv6 SSH
*IPv6 SSL
*Http/ Https
*IPv6 TFTP
*IPv6 ACL
*IPv6 Interface
*IPv6 Routing
*DHCPv6 Relay
*DHCPv6 Snooping
Management
*Web-based GUI and CLI management
*SNMP v1/ v2c/ v3, compatible with public MIBs and TP-Link private MIBs
*RMON (1, 2, 3, 9 groups)
*PPPoE Circuit ID
*DHCP Relay
*DHCP Server
*DHCP/ BOOTP Client, DHCP Snooping, DHCP Option82
*Dual Image
*CPU Monitoring
*Port Mirroring
*DDM
*Time Setting: SNTP
*Integrated NDP/ NTDP feature
*Firmware Upgrade: TFTP & Web
*System Diagnose: VCT
*SYSLOG & Public MIBS
*Password Recovery

OTHERS
Certification
*CE, FCC, RoHS
Package Contents
*Switch
*Power Cord
*Quick Installation Guide
*Resource CD
*Rackmount Kit
*Rubber Feet
System Requirements
*Microsoft® Windows® XP, Vista™, 7, 8, 10, MAC® OS, NetWare®, UNIX® or Linux.
Environment
*Operating Temperature: 0?~40? (32?~104?);
*Storage Temperature: -40?~70? (-40?~158?)
*Operating Humidity: 10%~90% non-condensing
*Storage Humidity: 5%~90% non-condensing
