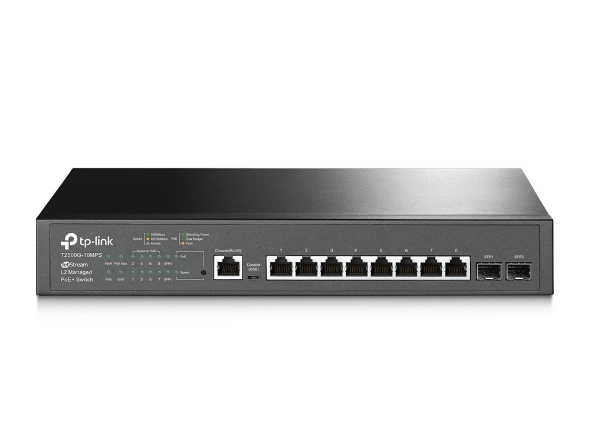

TP-Link T2500G-10MPS 8xG POE+ 2xSFP L2 switch | T2500G-10MPS

T2500G-10MPS

JetStream 8-Port Gigabit L2 Managed PoE+ Switch with 2 SFP Slots

Odkaz na web výrobce:

Shrnutí vlastností
*Features 8 PoE+ ports compliant with 802.3af/ at, 116W total PoE power output and an array of PoE management options
*Gigabit Ethernet connections on all ports for fast data transfer speeds
*Selectable RJ45 console port and Micro-USB console port
*Advanced security features including IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X and Radius Authentication
*L2/ L3/ L4 QoS and IGMP snooping optimize voice and video applications
*Web/ CLI managed modes, SNMP, RMON and Dual Image provide abundant management features

Specifikace

HARDWARE FEATURES
*Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
*Interface
8 10/ 100/ 1000Mbps RJ45 ports, all supporting PoE+
2 Gigabit SFP Slots
1 RJ45 Console Port
1 Micro-USB Console Port
*Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/ 1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
1000BASE-X: MMF, SMF
*Fan Quantity
1
*Power Supply
100~240VAC, 50/ 60Hz
*PoE Budget
116W
*Dimensions ( W x D x H )
11.6 × 7.1 × 1.7 in. (294 × 180 × 44 mm)

PERFORMANCE
*Bandwidth/ Backplane
20Gbps
*Packet Forwarding Rate
14.9Mpps
*MAC Address Table
8K
*Packet Buffer Memory
4Mb
*Jumbo Frame
10KB

SOFTWARE FEATURES
*Quality of Service
802.1p CoS/ DSCP priority
8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/ Flow- based Rate Limiting
Voice VLAN
*L2 Features
IGMP Snooping v1/ v2/ v3
MLD v1/ v2 Snooping
802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
Spanning Tree STP/ RSTP/ MSTP
Port isolation
BPDU filtering/ guard
TC/ Root protect
Loop back detection
802.3x Flow Control
LLDP/ LLDP-MED
DHCP VLAN Relay
L2PT
*VLAN
Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
MAC/ Protocol-based VLAN
GARP/ GVRP
VLAN VPN (QinQ)
Management VLAN configuration
*Access Control List
L2~L4 package filtering based on source and destination MAC address, IP address, TCP/ UDP ports, 802.1p, DSCP, protocol and VLAN ID;
Time Range Based
*Security
IP-MAC-Port-VID Binding
AAA
DHCP Snooping
IEEE 802.1X Port/ MAC Based authentication, Radius, Guest VLAN
DoS Defend
Dynamic ARP inspection (DAI)
SSH v1/ v2
SSL v2/ v3/ TLSv1
Port Security
Broadcast/ Multicast/ Unknown-unicast Storm Control
PPPoE
*IPv6
Dual IPv4/ IPv6 stack
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/ UDPv6
*IPv6 Applications
DHCPv6 Client
Ping6
Tracert6
Telnet(v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/ Https
IPv6 TFTP
*Management
Web-based GUI and CLI management
SNMP v1/ v2c/ v3, compatible with public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
DHCP/ BOOTP Client, DHCP Snooping, DHCP Option82
CPU Monitoring
Port Mirroring
Dual Image
Time Setting: SNTP
Integrated NDP/ NTDP feature
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS

OTHERS
*Certification
CE, FCC, RoHS
*Package Contents
Switch; Power Cord; Quick Installation Guide; Resource CD; Rackmount Kit; Rubber Feet
*System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/ 8, MAC® OS, NetWare®, UNIX® or Linux.
*Environment
Operating Temperature: 0?~40? (32?~104?);
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
