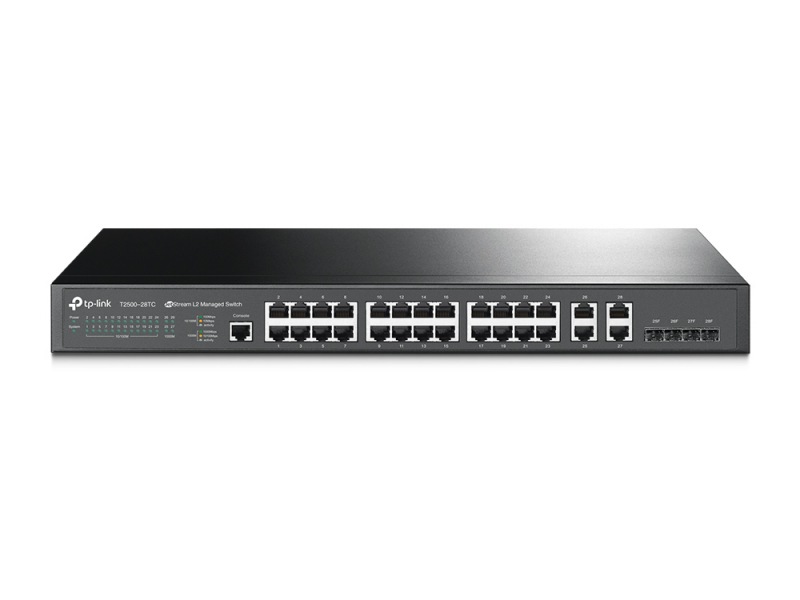

TP-Link T2500-28TC 24x 10 / 100Mbps, 4xGb Switch | T2500-28TC(TL-SL5428E)

JetStream 24-Port 10/ 100Mbps + 4-Port Gigabit L2 Managed Switch T2500-28TC


*AAA, ACL, 802.1X Authentication, Port Security, IP Filtering, Storm control, DHCP Snooping, IP Source Guard and DoS Defend provide you robust security strategy
*DDM provides the monitoring of all SFP Modules inserting to the switch
*L2/ L3/ L4 QoS and IGMP snooping optimize voice and video application
*SNMP, RMON, WEB/ CLI/ Telnet Log-in bring abundant management policies


*HARDWARE FEATURES
Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface: 24 10/ 100Mbps RJ45 Ports, (Auto Negotiation/ Auto MDI/ MDIX), 4 10/ 100/ 1000Mbps RJ45 Ports, (Auto Negotiation/ Auto MDI/ MDIX), 4 Combo Gigabit SFP Ports, 1 Console Port
Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/ TIA-568 100? STP (maximum 100m), 100BASE-TX/ 1000Base-T: UTP category 5, 5e cable (maximum 100m), EIA/ TIA-568 100? STP (maximum 100m), 1000BASE-X: MMF, SMF
Fan Quantity: Fanless
Power Supply: 100~240VAC, 50/ 60Hz
Power Consumption: Maximum: 15W (220V/ 50Hz)
Dimensions ( W x D x H ): 17.3*7.1*1.7 in.(440*180*44 mm)

*PERFORMANCE
Stacking: 32 Units Virtual Stacking
Bandwidth/ Backplane: 12.8Gbps
Packet Forwarding Rate: 9.5Mpps
MAC Address Table: 8k
Jumbo Frame: 2048 Bytes
*SOFTWARE FEATURES
Quality of Service: 4 Queues/ Port 802.1p/ IP DSCP based COS, TOS
L2 Features: IGMP Snooping: V1/ V2/ V3, 802.3ad with LACP, STP/ RSTP/ MSTP, BPDU Filtering/ Guard, Port Mirroring, Flow Control
VLAN: Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs), Port/ Tag-based/ Private/ Protocol-based VLAN/ , QinQ, GVRP
Access Control List: Packet Flow Filter; Packet Flow Redirection;
Time Range Based; Flow-based QoS
Security: IP-MAC-Port-VID Binding
IEEE 802.1x (Radius):Port/ MAC Based, VLAN assignment, Guest VLAN, QoS assignment,
Supplicant Support
DoS Defend
Dynamic ARP inspection (DAI)
SSH: V1/ V2
SSL:V1.5/ V2
Port Security
Broadcast Storm Control
Guest VLAN
IP Source Guard
IPv6: Dual IPv4/ IPv6 stack
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/ UDPv6
IPv6 Applications: DHCPv6 Client
Ping6
Tracert6
Telnet(v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/ Https
IPv6 TFTP
Management: System Diagnose: VCT
DDM
sFlow
SNMP: V1/ V2/ V3
RMON: Group 1, 2, 3, 9
Command Line Interface: Telnet/ Console
Time Setting: SNTP
Firmware Upgrade: TFTP & Web
DGCO Client & BOOTP Client
SYSLOG & Public MIBS

*OTHERS
Certification: CE, FCC, RoHS
Package Contents: Switch; Power Cord; Quick Installation Guide;
Resource CD; Rackmount Kit; Rubber Feet
System Requirements: Microsoft® Windows® XP, Vista™, 7, 8, 10, MAC® OS, NetWare®, UNIX® or Linux
Environment: Operating Temperature: 0?~40? (32?~104?);
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
