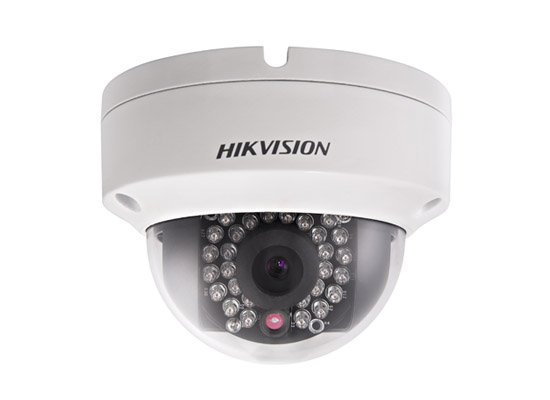

Hikvision IPC R2 Dome, DS-2CD2114WD-I(4mm) | DS-2CD2114WD-I(4mm)

DS-2CD2114WD-I(4mm) - 1/ 4" Progressive CMOS, 1280x720:25fps(P)/ 30fps(N), 4mm/ F2.0 , IP66, 100dB WDR, 30m IR, Vandal-proof


OVERVIEW

DS-2CD2114WD-I

*Up to 1MP (1280 × 720) image resolution
*Progressive scan CMOS sensor for capturing motion videos without incised margin
*Standard video compression with high compression ratio and ROI (region of interest) encoding
*Supports 3D DNR
*Wide dynamic range of up to 100 dB
*Supports dual stream and the sub-stream for mobile surveillance
*Infrared LEDs with illumination range of up to 98
*IR cut filter with auto switch
*Supports PoE
*Electronic shutter for different surveillance environments
*IP66 and IK10 rated housing
*Supports intrusion detection and line crossing detection
*Supports VCA

TECHNICAL SPECS

Camera
Image Sensor
*1/ 4" progressive scan CMOS
Minimum Illumination
*0.01 lux @ (f/ 1.2, AGC On)
*0.028 lux @ (f/ 2.0, AGC On)
*0 lux with IR
Shutter Speed
*1/ 3 to 1/ 100, 000 sec
Lens
*4 mm @ f/ 2.0
Angle of View
*55°
Lens Mount
*M12
Day/ Night
*IR cut filter with auto switch
Digital Noise Reduction
*3D DNR
Wide Dynamic Range
*100 dB
Angle Adjustment
*Pan: 0 to 355°
*Tilt: 0 to 65°
Compression
Video
*H.264/ MJPEG
H.264 Profile
*Baseline/ Main
Video Bit Rate
*32 kbps to 8 Mbps
Streaming
*Dual stream
Maximum Resolution
*1280 x 720
Frame Rate
*50 Hz: 25 fps (1280 x 720), 25 fps (704 x 576), 25 fps (640 x 480)
*60 Hz: 30 fps (1280 x 720), 30 fps (704 x 576), 30 fps (640 x 480)
Image Settings
*Rotate mode, saturation, brightness, contrast adjustable by client software, or Web browser
Backlight Compensation
*Yes, zone optional
ROI
*Yes
Network
Network Storage
*NAS (Support NFS, SMB/ CIFS)
Alarm Trigger
*Intrusion detection, line crossing detection, motion detection, dynamic analysis, tampering alarm, network disconnect , IP address conflict, storage exception
Protocols
*TCP/ IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General
*One-key reset, flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, anonymous access
Standard
*ONVIF, PSIA, CGI, ISAPI
Interface
Communication
*1 x RJ45 10M/ 100M Ethernet interface
General
IR Range
*98 (30 m)
Power Supply
*12 VDC ± 10% , PoE (802.3af)
Power Consumption
*Maximum 6 W
Protection
*IP66, IEC60068-2-75Eh, 20J; EN50102, up to IK10
Operating Conditions
*-22 to 140 °F (-30 to 60°C)
Humidity 95% or less (non-condensing)
Dimensions
*11.1 × 8.2 cm
Weight
*0.5 kg
