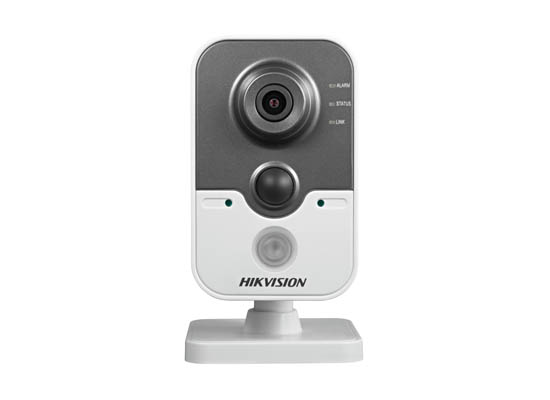

Hikvision IPC R2 Cube, DS-2CD2420F-IW(2.8mm) | DS-2CD2420F-IW(2.8mm)

DS-2CD2420F-IW(2.8mm) - 1/ 3" Progressive CMOS, ICR, 0lux with IR, 1920x1080:25fps(P)/ 30fps(N), 4mm/ F2.0 lens (2.8mm, 6mm optional), H.264/ MJPEG, dual-stream, DC12V & PoE, DWDR, 3D DNR, BLC, Intrusion Detection, Line Crossing Detection, IR: up to 10m, On-board card slot (up to 64GB), Built-in Wi-Fi


OVERVIEW

DS-2CD2420F-I(W): 2MP IR Cube Camera

*HD1080p Video
*Up to 10m IR
*PIR
*DWDR/ 3D DNR/ BLC
*Support On-board Storage, up to 128GB
*Built-in Wi-Fi optional

TECHNICAL SPECS

Camera
Image Sensor
*1/ 2.8" Progressive Scan CMOS
Min. Illumination
*0.01Lux @(F1.2, AGC ON), 0 Lux with IR
*0.028Lux @(F2.0, AGC ON), 0 Lux with IR
Shutter time
*1/ 3 s to 1/ 100, 000 s
Lens
*4mm@ F2.0, Angle of view: 85° (2.8mm, 6mm optional)
Lens Mount
*M12
Day& Night
*IR cut filter with auto switch
Wide Dynamic Range
*Digital WDR
Digital noise reduction
*3D DNR
Compression Standard
Video Compression
*H.264/ MJPEG
H.264 code profile
*Main Profile
Video bit rate
*32Kbps~8Mbps
Audio Compression
*G.711/ G.722.1/ G.726/ MP2L2
Audio bit rate
*64Kbps(G.711) / 16Kbps(G.722.1)/ 16Kbps(G.726) / 32-128Kbps(MP2L2)
Max. Image Resolution
*1920 x 1080
Frame Rate
*50Hz: 25fps(1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
*60Hz: 30fps(1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
Image Settings
*Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC
*Yes, zone configurable
ROI
*Support
Network
Network Storage
*Built-in Micro SD/ SDHC/ SDXC slot, up to 128G, NAS(NFS, SMB/ CIFS)
Alarm Trigger
*Intrusion detection, Defocus detection, Motion detection, Face detection, line crossing detection,
*Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols
*TCP/ IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,
*PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Security
*One-key reset, flash-prevention, dual streams, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering, Anonymous access
System Compatibility
*ONVIF, PSIA, CGI, ISAPI
Interface
Communication Interface
*1 RJ45 10M / 100M Ethernet interface
Alarm Input
*1
Alarm Output
*1
Wi-Fi Specification (-W)
Wireless Standards
*IEEE802.11b, 802.11g, 802.11n
Frequency Range
*2.4 GHz ~ 2.4835 GHz
Channel Bandwidth
*20/ 40MHz Support
Modulation Mode
*802.11b: CCK, QPSK, BPSK
*802.11g/ n: OFDM
Security
*64/ 128-bit WEP, WPA/ WPA2, WPA-PSK/ WPA2-PSK, WPS
Transmit Power
*11b: 17±1.5dBm @ 11Mbps
*11g: 14±1.5dBm @ 54Mbps
*11n: 12.5±1.5dBm
Receive Sensitivity
*11b: -90dBm @ 11Mbps (Typical)
*11g: -75dBm @ 54Mpbs (Typical)
*11n: -74dBm (Typical)
Transmission Rate
*11b: 11Mbps
*11g: 54Mbps
*11n: up to 150Mbps
Wireless Range
*50m(depend on environment)
Protocols
*802.11b: CCK, QPSK, BPSK
*802.11g/ n: OFDM
General
Operating Conditions
*-30 °C ~ 60 °C
Humidity 95% or less (non-condensing)
Power Supply
*12 VDC ± 10%, PoE (802.3af)
Power Consumption
*MAX. 4.5W
IR Range
*10 meters
PIR
*Angle: 80°
*Range: 10m
Dimensions
*72.3×89.9×131.3
Weight
*400g(
NOTE:
*"-W" series support Wi-Fi (802.11b/ g/ n) and the modules with Wi-Fi function don’t support the 802.1X protocol.
