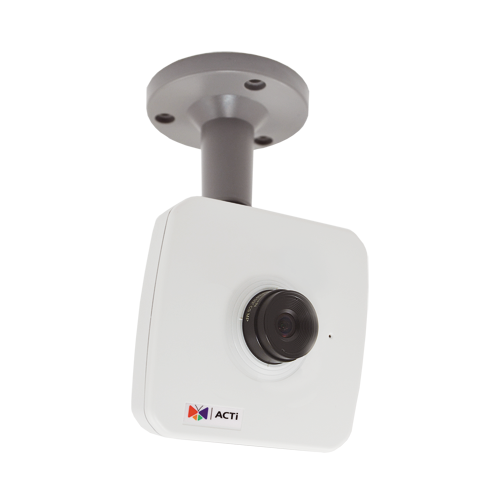

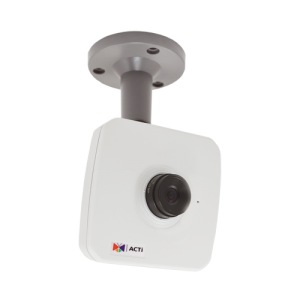

ACTi E11, Cube, 1M, ID, f4.2mm, PoE, WDR | E11

ACTi Kamera 1MP Cube with Basic WDR, Fixed lens




SPECIFICATIONS
Model
* E11

Product Type
* Cube

Maximum Resolution
* 1MP

Application Environment
* Indoor

Image Sensor
* Progressive Scan CMOS

Day / Night
* No

Superior Low Light Sensitivity
* No

Minimum Illumination
* Color: 0.1 lux at F1.8

Mechanical IR Cut Filter
* No

IR LED
* No

Lens
* Fixed focal, f4.2mm / F1.8, Fixed iris, Manual focus

Lens Mount
* CS mount (interchangeable lens)

Horizontal Viewing Angle
* 53.8& deg;

Compression
* H.264 High Profile, MJPEG

Maximum Frame Rate vs. Resolution
* 30 fps at 1280 x 720
* 30 fps at 800 x 600
* 30 fps at 640 x 480
* 15 fps at 320 x 240

Horizontal Resolution (TV lines)
* 700 TVL

Multi-Streaming
* Dual streams

Wide Dynamic Range
* Basic WDR (74 dB)

Digital Noise Reduction
* DNR

S/ N Ratio
* 52 dB

Audio
* 2-way (Built-in Microphone, Line-out)

Network Protocol & Service
* TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

Network Connector
* RJ-45

Digital Input/ Output
* No

Local Storage
* No

Power Source
* PoE Class 2

Environmental Casing
* No

Bundled Accessories
* Bracket

Mount Type
* Wall, Ceiling

Software Based Analytics (require PC based Smart Search Tool, IVS Server or ALPR Server)
* Face Detection, Motion Detection, Tamper, People Counting, Line crossing, Enter area, Exit area, Appear in area, Missing object, Unattended object, Crowd detection, Forbidden direction, Vehicle Counting, Heat Map, License Plate Recognition, Speed Detection

Client PC Operating System
* Windows 7, Windows Server 2008, Windows Vista, Windows Server 2003, Windows XP

PC Web Browser
* IE 8, IE 9, IE 10, IE 11, Firefox with VLC, Chrome with VLC, Safari with Quicktime

ONVIF Compliant
* Yes

Starting Temperature
* -10& deg;C ~ 45& deg;C

Operating Temperature
* -10& deg;C ~ 45& deg;C

Approvals
* CE, FCC

Warranty
* 3 Years
