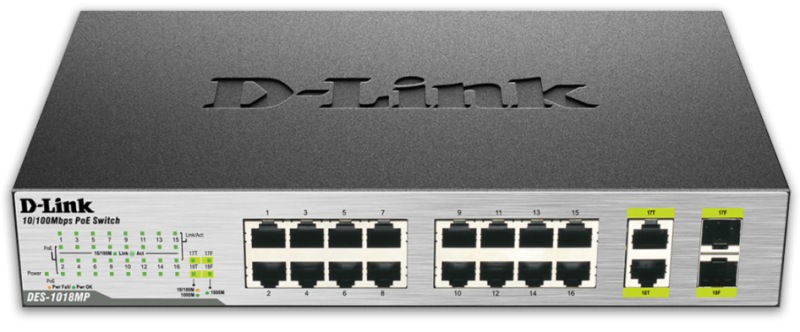

D-Link DES-1018MP 16x100+2xGbE RJ45 / SFP PoE switch | DES-1018MP

D-Link DES-1018MP 16x100+2xGbit+2xSFP Smart


OVERVIEW
Versatile Connectivity
* 16 x 10/ 100 Mbps PoE ports
* 2 x Gigabit combo uplink ports

Reliability
* 2 kV surge protection for PoE ports1
* IEEE 802.3x flow control

Easy Setup
* Plug and play installation
* Auto MDI/ MDIX crossover for all ports

Green Features
* IEEE 802.3az Energy Efficient Ethernet
* Smart fan
* RoHS compliant


SPECIFICATIONS
GENERAL
Device Interfaces
* 16 10/ 100 Mbps PoE ports
* 2 10/ 100/ 1000BASE-T/ SFP combo ports

Standards
* IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
* ANSI/ IEEE 802.3 NWay auto-negotiation
* IEEE 802.3x flow control
* IEEE 802.3x Flow Control
* IEEE 802.3az Energy-Efficient Ethernet (EEE)

Switching Fabric
* 1.6 Gbps switching fabric

64 Byte Max. Forwarding Rate
* 5.36 Mpps

Transmission Method
* Store-and-forward

MAC Address Table
* 8k

Packet Buffer
* 384 Kbytes

Media Interface Exchange
* Auto MDI/ MDIX adjustment for all ports

LED Indicators
* Per unit: Power
* Per port: Activity / Link and Speed
* Per PoE port: Power fail, Power OK

Fan
* 1 smart fan

PoE Standard
* IEEE 802.3af

PoE Ports
* ports 1~16 up to 15.4 W per port

PoE Power Budget
* 246.4 watts

Surge Protection
* ports 1~16 up to 2 kV

PHYSICAL
Dimensions
* 280 x 210 x 44 mm

Weight
* 2.15 kg

Power
* Internal AC input: 100 ~ 240 VAC, 50~60 Hz

Power Consumption
* Maximum Power Consumption: 301.6 watts (PoE on), 15.6 watts (PoE off)
* Standby Power Consumption: 9.3 W/ 100 V, 10.5 W/ 240 V

Temperature
* Operating: 0 to 40 °C
* Storage: -40 to 70 °C

Humidity
* Operating: 0% to 95% RH non-condensing
* Storage: 0% to 95% RH non-condensing

MTBF
* 361, 802 hours

Heat Dissipation
* 1029.5 BTU/ h

Certifications
* FCC Class A
* CE
* CCC
* RoHS
* VCCI
* BSMI
* C-Tick

Safety
* CB
* cUL
* LVD
* CCC
* BSMI


1. Surge protection function available for PoE ports only.
2. Energy savings from IEEE 802.3az Energy Efficient Ethernet (EEE) are dependent on actual usage scenarios.
