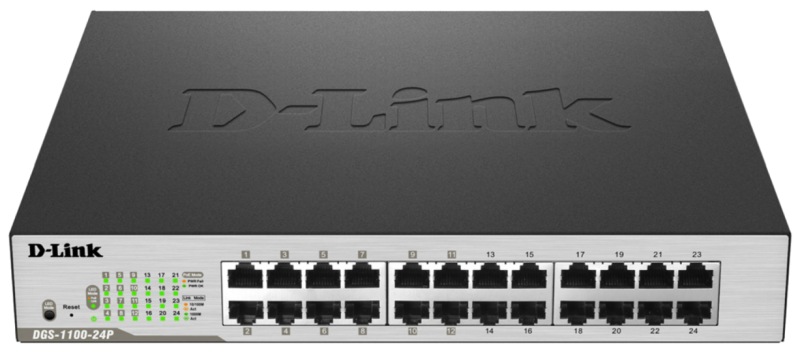

D-Link DGS-1100-24P Easy Smart Switch 10 / 100 / 1000 | DGS-1100-24P

D-Link DGS-1100-24P Easy Smart Switch 10/ 100/ 1000


Informace k záruce:
Na produkt je poskytována omezená doživotní záruka, to znamená, že záruční lhůta vyprší až pět let poté, co společnost D-Link (nebo její nástupce) ukončí prodej daného produktu v Evropě.
Pro nárok na omezenou doživotní záruku je třeba produkt zaregistrovat (viz níže) u D-Link Europe do třiceti (30) dnů od data zakoupení. Registraci lze provést přes samoobslužný portál.
http:/ / www.dlink.com/ cz/ cs/ support/ product-registration-and-support-log-in


OVERVIEW
Physical
* Various selection of port counts, with or without PoE and fibre support

Green Technology
* Link status detection
* LED and port shut-off
* System hibernation
* Time-based PoE

Advanced Features
* IGMP snooping
* Bandwidth control
* 802.1Q VLAN for traffic segregation
* Port-based VLAN
* 802.1p
* Auto Surveillance VLAN
* Voice VLAN

Easy Troubleshooting
* Loopback detection with auto disable
* Cable diagnostics

Management Features
* D-Link Network Assistant utility or web-based GUI
* Built-in SNMP MIB


SPECIFICATIONS
INTERFACE
Number of 10/ 100/ 1000BASE-TX ports
* 24 ports

PoE Supported Models (Standard(s)/ Number of Ports/ Maximum Power Budget)
* 802.3af/ 802.3at/ 12 ports/ 100W

PERFORMANCE
Switch Capacity
* 48 Gbps

Maximum Forwarding Rate
* 35.71 Mpps

MAC Address Table Size
* 8K

Packet Buffer
* 512 Kbits

Flash Memory
* 8 MB

DIAGNOSTIC LED INDICATORS
Power (Per Device)
* Yes

Link/ Activity/ Speed (Per Port)
* Yes

PHYSICAL & ENVIRONMENTAL
Power Consumption (Maximum)
* 128.32W

Dimensions (W x D x H)
* 280 x 230 x 44 mm

Weight
* 2.15 kg

Ventilation
* 1 fan

Heat Dissipation
* 437.85 BTU per hour

MTBF
* 563, 292 hours

Temperature
* operating: -5& deg; to 50& deg;C, storage: -40& deg; to 70& deg;C

Humidity
* operating: 5% ~ 95% Non-condensing, storage: 0% ~ 95% Non-condensing

EMI/ EMC
* FCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI, CCC

Safety
* cUL, CE LVD, CB, BSMI, CCC

SOFTWARE FEATURES
* VLAN
* Port-based VLAN
* 802.1Q Tagged VLAN
* Auto Surveillance VLAN
* Voice VLAN
* Management VLAN
* Asymmetric VLAN
* VLAN Group
- Supports 128 static VLAN groups
- Max. 4094 VIDs

L2 Features
* Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
* Jumbo Frames up to 9216 Bytes
* IGMP Snooping
- IGMP v1/ v2/ v3 awareness Snooping
- Supports 64 Groups
- IGMP Snooping Querier
* 802.3ad Link Aggregation
- DGS-1100-24P: Support max 12 groups per device and 8 ports per group
* Loopback Detection
* Cable Diagnostics
* LLDP
* Port Mirroring
- One-to-One
- Many-to-One
* Statistics
- Tx Ok
- Tx Error
- Rx Ok
- Rx Error
* Spanning Tree Protocol
* 802.1D STP
* 802.1w RSTP

Quality of Service (QoS)
* 802.1p Quality of Service
* 4 queues per port
* Queue Handling
- Strict
- Weighted Round Robin (WRR)
* Port-based Bandwidth Control (Rate Limiting)
- Ingress : 8Kbps, Egress : 64Kbps

Security
* D-Link Safeguard
* Traffic Segmentation
* Broadcast/ Multicast/ Unknown Unicast Storm Control
* DoS Attack Prevention2
* SSL

Management
* Web-based GUI (Supports IPv4/ IPv6)
* D-Link Network Assistant Utility

D-Link Green
* Power Saving by
- Link Status
- Cable Length
* Compliant with IEEE 802.3az Energy Efficient Ethernet
* Compliant with RoHS 6

RFC Standard List
* RFC 768 UDP
* RFC 791 IP
* RFC 792 ICMP
* RFC 793 TCP
* RFC 826 ARP
* RFC 951 BootP Client
* RFC 1542 BootP/ DHCP client
* RFC 1945 HTTP/ 1.0
* RFC 2647 802.1p
* RFC 2236, 4451 IGMP Snooping
