D-Link DCS-960L HD 180st. Panoramic Camera | DCS-960L

HD 180° Panoramic Camera


Kamera DCS-960L podporuje microSD/ SDHC/ SDCX karty do velikosti max. 128GB a max. do verze UHS-I. Doporučené jsou karty s označením UHS-I Class 10, Class U1 a Class U3. Video karty UHS-II (V6 až V90) nejsou podporované.
UHS-I a UHS-II lze poznat přímo na kartě podle římského čísla I nebo II na logu karty:



OVERVIEW

Why limit yourself? See more of your home and never worry about what s happening off-camera.

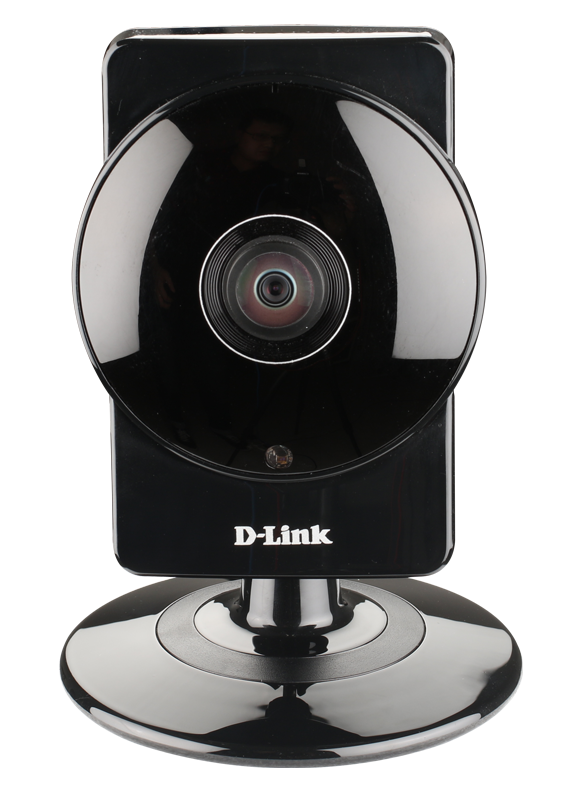

The DCS-960L HD 180° Panoramic Camera is the world s first 180-degree Wireless AC Wide Eye camera, offering a horizon-wide view that easily captures your entire room, wall-to-wall, in high-quality 720p - it s home security with an eye for detail.
Maximises the video quality with less distortion - letting you see more of your home at a glance.
Unlike traditional cameras, the revolutionary DCS-960L uses an ultra-wide view lens to give you a full 180° field of view, letting you cover an entire room with a single camera. Forget about pan and tilt cameras, view everything instantly in real-time.
Night vision with built-in infrared LEDs allows for viewing of up to 5 metres in complete darkness, enabling round-the-clock monitoring of a home or office.

Technical Specifications

Camera

Camera Hardware Profile

*1/ 2.7” Megapixel progressive CMOS sensor
*5 metre IR illumination distance
Minimum illumination:
*Color (Day Mode), IR LEDs off: 0.5 lux
*B/ W (Night Mode), IR LEDs off: 0.1 lux
*B/ W (Night Mode), IR LEDs on: 0 lux
*Built-in Infrared-Cut Removable (ICR) Filter module
*8X digital zoom
*Fixed length 1.72 mm
*Aperture F2.0
Angle of view
*(H) 180°
*(V) 120°
*(D) 180°
*Image de-warping
*Minimum object distance: 500 mm
*Built-in Microphone

Image Features

*Configurable image size, quality, frame rate, and bit rate
*Configurable brightness, contrast, sharpness, saturation, and hue
*Configurable motion detection windows
*Time stamp and text overlays

Video Compression

*Simultaneous H.264/ MJPEG format compression
*JPEG for still images

Video Resolution

*1280 x 720, 800 x 600, 720 x 480, 640 x 480, 640 x 360, 320 x 240 at up to 30 fps

Audio Compression

*G.711*

External Interfaces

*802.11ac/ n/ g/ a wireless with WEP/ WPA/ WPA2 encryption
*Operates on 2.4 GHz and 5 GHz bands*
*microSD/ SDHC/ SDXC card slot1
*Maximum data rate of 433 Mbps (PHY rate)2

Network

Network Protocols

*IPV4, ARP, TCP, UDP, ICMP
*DHCP Client
*NTP Client (D-Link)
*DNS Client
*DDNS Client (D-Link)
*SMTP Client
*FTP Client
*HTTP Server
*PPPoE
*RTP, RTSP, RTCP
*UPnP Port Forwarding
*HTTPS for configuration
*Bonjour

Security

*Administrator and user group protection
*Password authentication
*HTTP and RTSP digest encryption

System Integration

System Requirements for Web Interfaces

*Operating system: Microsoft Windows 10/ 8/ 7 or Mac OS X 10.7 or higher
*Browser: Internet Explorer 8, Firefox 12, or Safari 6 or higher

Event Management

*Motion detection
*Sound level detection
*Event notification and uploading of snapshots/ video clips via SMTP or FTP

Remote Management

*Configuration accessible via web browser

Mobile support

*mydlink Lite app for iPhone, iPad, iPod Touch, Android, and Windows
*mydlink+ app for iPad and Android

General

Dimensions

*137.5 x 95.8 x 95.8 mm

Weight

*165.0 grams*

Power

*5 V DC, 2.0 A, 50/ 60 Hz

Power Consumption

*4.8 watts maximum ± 5%*

Temperature

*Operating: 0 to 40 °C
*Storage: -20 to 70° C

Humidity

*Operating: 20% to 80% non-condensing
*Storage: 20% to 80% non-condensing

Certifications

*CE
*CE LVD
*FCC Class B
*ICES
*C-Tick
