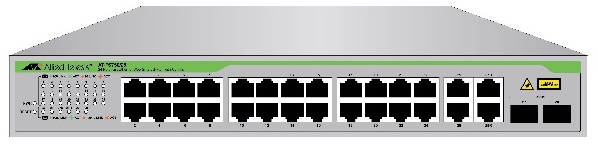

Allied Telesis 24xFE smart+2xGb+2SFP AT-FS750 / 28 | AT-FS750/28-50

AT-FS750/ 28: 24-port 10/ 100TX + 2 10/ 100/ 1000T + 2 SFP/ 1000T Combo Ports


OVERVIEW

These advanced Allied Telesis WebSmart switches integrate the simplicity of unmanaged switches with the performance and reliability of managed switches to provide a cost-effective, yet secure and reliable, solution for users to integrate management at the edge of their networks. With user-friendly web-based management, the FS750 Series is an ideal option for integrating simple management and security into a network solution.

TECHNICAL SPECS

VLAN
*IEEE 802.1Q tagged
*Port-based
*Up to 256 groups
Quality of Service Classification
*IEEE 802.1p tagging
*Port-based priority
*Four priority queues per port
IP Multicast Support (IPv4)
*IGMP snooping (v1/ v2)
*Static multicast group (up to 256)
*Spanning-Tree, IEEE 802.1d/ w/ s
IEEE 802.3ad Link Aggregation
IEEE 802.1x Port-based and MAC-based
*Network Access Control
*Local authentication server (MD5 only)
*Remote authentication through RADIUS
*Dynamic VLAN assignment
RADIUS Client
DHCP Client
DHCP Snooping
Statistics Charts in Web
Jumbo Frames - up to 10K
Others
*IEEE 802.3x flow control or HOL (†) blocking prevention († when flow control is off)
*Port mirroring
*Destination MAC filtering
*Ingress/ egress rate limiting
*Broadcast storming control
*100/ 1000 SFP supported
Management Features
*Web-based configuration
*Discovery support
*SNMP trap view
*LLDP
*Firmware upgrade by FTP and HTTP
*Configuration backup/ restore by FTP and HTTP
*Factory reset
*Password access control and restricted IP access
*List
*SNMPv1/ v2c/ v3
*Management IP: DHCP client for Web
*Management and static IP setting
*Syslog support
*System time configuration (SNTP, manual)
MIBs
*RFC 1213 MIB-II
*RFC 1643 Ethernet MIB
*RFC 1493 Bridge MIB
*RFC 2131 DHCP client
*Private Enterprise MIB (Allied Telesis provides the spec)
RMON Groups (1, 2, 3, 9)
*Stats
*History
*Alarms
*Events
ACL
*200 entries (shared)
