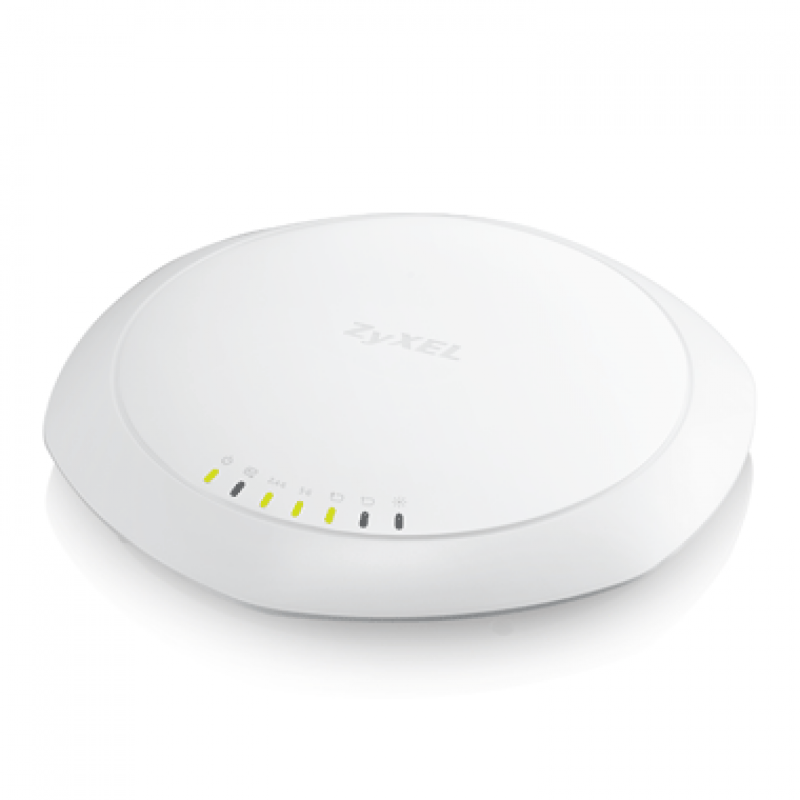

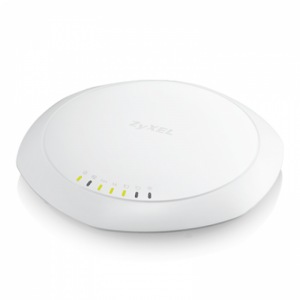

ZyXEL AP dualBand dualRadio WAC6103D-I | WAC6103D-I-EU0101F

Standalone or Controller 802.11ac, 3x3 Dual band & Dual radio (1750Mbps) Wireless Access Point, Dual optimized antenna for flexible usage as Ceiling/ Wall mount, 1GbE LAN + 1GbE Uplink ports, PoE, no PSU, Slim and slick design


PŘEHLED

Ultra-fast, Ultra-slim 802.11ac Wi-Fi Access Point Featuring Innovative Dual-Optimized Antenna Technology

To Wi-Fi users, it is not uncommon to have bad experience on Wi-Fi performance, and antenna design plays an important role while evaluating wireless performance. Today, most access points on the market are designed with single static radiation pattern, typically for ceiling-mount. When an AP with ceiling-mount pattern is installed in wall-mount scenario, its signal coverage does not fit for wall-mount deployment. Adapting an AP with external antenna may be the alternative option, however, external antenna installation requires know-how for antenna selection, and would look awkward for interior decoration. A flexibly installed Wi-Fi AP with optimal performance and stylish outlook is a prerequisite today, but a satisfactory solution has been missing for a long time.

ZyXEL’s WAC6103D-I is a high performance 3-stream 802.11ac Wi-Fi AP featuring ultra-fast speeds of up to 1.75 Gbps with ground-breaking “dualoptimized” antenna design. Via the innovative adjustable antenna setting, the WAC6103D-I provides the best signal coverage fitting for either ceiling-mount or wall-mount deployments. Even better, the stylish, ultra-slim industrial design perfectly blends into modern decorations. Choose WAC6103D-I for constant, no-compromise Wi-Fi performance.

TECHNICKÁ SPECIFIKACE

Model
* WAC6103D-I
Product name
* 802.11ac Dual Radio Dual-optimized Antenna 3x3 Access Point

Main Design
Wireless frequency
* 2.4 and 5 GHz
Radio
* 2

RF Specifications
Frequency band
* 2.4 GHz (IEEE 802.11 b/ g/ n)
* 5 GHz (IEEE 802.11 a/ n/ ac)
802.11n/ ac premium features
* 3x3 Multiple-Input Multiple-Output (MIMO) with three spatial streams
* Maximal Ratio Combining (MRC)
* 20-, 40- and 80-MHz channels
* Packet aggregation: A-MPDU (Tx/ Rx), A-MSDU (Tx/ Rx)
* Cyclic Delay diversity (CSD) support
* Maximum Likehood Demodulation (MLD) support
* Low Density Parity Check (LDPC) support
Conducted typical transmit output power (dBm)
FCC 11g/ n
* 26
FCC 11a
* 27
FCC 11n/ a (ac)
* 27
EU 11b/ g
* 18
EU 11g/ n
* 18
EU 11a
* 22
EU 11n/ a (ac)
* 24
Antenna system
* Dual-optimized internal antenna
Antenna gain
* Ceiling: 2.4 GHz 3 dBi; 5 GHz 4 dBi
* Wall: 2.4 GHz 4 dBi; 5 GHz 5 dBi
Support data rate
* 802.11a/ g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
* 802.11n: up to 450 Mbps in MCS15 (40 MHz)
* 802.11ac: up to 1300 Mbps in MCS9 (80 MHz)
Receive sensitivity
* Min. Rx sensitivity to -102 dBm

Interfaces
Number of 10/ 100/ 1000M LAN
* 2 x switch ports
Console port
* 4-Pin serial
PoE
* Yes
PoE power draw
* 12.48 W (802.3at PoE)*

WLAN Features
WLAN maximum throughput
* Up to 900 Mbps
Mesh AP (By License)
* Yes
Mesh AP for multiple SSID with VLAN (through tunnel mode)
* Yes

Wireless Security
WEP
* Yes
WPA/ WPA2-PSK
* Yes
WPA/ WPA2-Enterprise
* Yes
WMM
* Yes
WLAN access control list
* Yes
EAP types
* EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-FAST, EAP-AKA and EAP-SIM
IEEE 802.1X
* Yes
Number of SSID
* 16
Web authentication
* Yes
MAC filtering
* Yes
Layer-2 isolation
* Yes
RADIUS authentication
* Yes
Microsoft AD authentication
* Yes
LDAP authentication
* Yes
MAC authentication
* Yes
Rogue AP detection
* Yes
Rogue AP containment
* Yes

Network
IPv6 host
* Yes
VLANs
* Yes
DHCP client
* Yes

QoS (PG)
WMM
* Yes
WMM power save
* Yes
DiffServ marking
* Yes

Management
ZON Utility
* Discovery of ZyXEL switches, APs and gateways
* Centralized and batch configurations
* IP configuration
* IP renew
* Device factory reset
* Device reboot
* Device locating
* Web GUI access
* Firmware upgrad
* Password configuration
* One-click quick association with ZyXEL AP Configurator (ZAC)
Smart Connect
* Discover neighboring devices
* One-click remote management access to the neighboring ZyXEL devices
ZyXEL AP Configurator
* Batch AP configuration
* Batch AP firmware upgrade
* Batch AP profile backup
ZyXEL Wireless Optimizer
* Wi-Fi AP planning
* Wi-Fi coverage detection
* Wireless health management
Standalone AP mode
* Yes
Managed AP mode
* Yes
CLI
* Yes
Web UI
* Yes
SNMP
* v2c/ v3

Others
Plenum rating
* Yes
Input power
* 802.3at PoE only (No DC jack)
MTBF (hr)
* 1, 005, 235

Standard Compliance
Ethernet
* IEEE 802.3
* IEEE 802.3u
* IEEE 802.11ab
* IEEE 802.3au
* IEEE 802.3az
* IEEE 802.3at
PoE
* IEEE 802.3at
WLAN
* 802.11b: DBPSK, DQPSK, CCK
* 802.11g: BPSK, QPSK, 16-QAM, 64-QAM
* 802.11a: BPSK, QPSK, 16-QAM, 64-QAM
* 802.11n: BPSK, QPSK, 16-QAM, 64-QAM
* 802.11ac: BPSK, QPSK, 64-QAM, 256-QAM

Certifications
Radio
* FCC part 15C, FCC part 15E, ETSI EN 300 328, EN 301 893, LP0002
EMC
* FCC part 15B, EN 301 489-1, EN 301 489-17, EN55022,
* EN55024, EN61000-3-2/ -3, EN60601-1-2, BSMI CNS13438
Safety
* EN 60950-1, IEC 60950-1, BSMI CNS14336-1

Physical Specifications
Item
Dimensions (WxDxH) mm
*203.9 x 191.7 x 34.7
Weight (g)
* 445
Included accessories
* Wall/ ceiling mount plate

Environmental Specifications
* Operating
Temperature
*0 & deg;C to 50 & deg;C
Humidity
* 10% to 90% (non-condensing)
* Storage
Temperature
*-40 & deg;C to 70 & deg;C
Humidity
* 10% to 90% (non-condensing)
