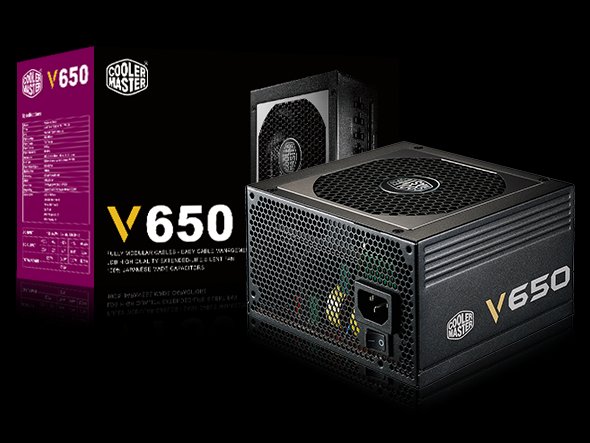

zdroj Cooler Master Vanquard series 650W aPFC v2.31, 12cm fan, 80+ Gold, modular | RS650-AFBAG1-EU

V650

Unique 3D circuit design offers higher efficiency and improves the heat dissipation
Cooler Master s exclusive Silencio FP fan technology enhances airflow, reduces vibration and provides the best thermal performance
Fully modular, flat cable design for better cable management
100% Japanese capacitors ensures an extended lifetime and minimizes power fluctuations
Compact design 6.8W/ inch3 fits perfectly with small form factor systems
80 PLUS Gold certified: up to 92% efficiency on typical load

Model RS650-AFBAG1-xx
Type Intel Form Factor ATX 12V V2.31
Dimensions 150 x 140 x 86mm / 5.9 x 5.5 x 3.4 inch
Input Voltage 100-240Vac
Input Range Full range
Input Frequency Range 47 - 63Hz
PFC Active PFC (>0.9 typical)
Power Good Signal 100-500ms
Hold Up Time >16ms
Efficiency 90% @ Typical Load
MTBF >100, 000 Hours
Fan Type 120mm Silecnio FP
Quality Certificates CE/ FCC/ UL/ TUV/ RCM/ BSMI/ CCC/ EAC
Protection OVP/ UVP/ OPP/ OTP/ OCP/ SCP
Connectors 20+4 Pin MB x 1
4+4 Pin CPU +12V x 1
6+2 Pin PCI-e x 2
SATA x 8
4Pin Peripheral x 6
4Pin Floppy x 1
EAN Code 4719512048269
UPC Code 884102027222
