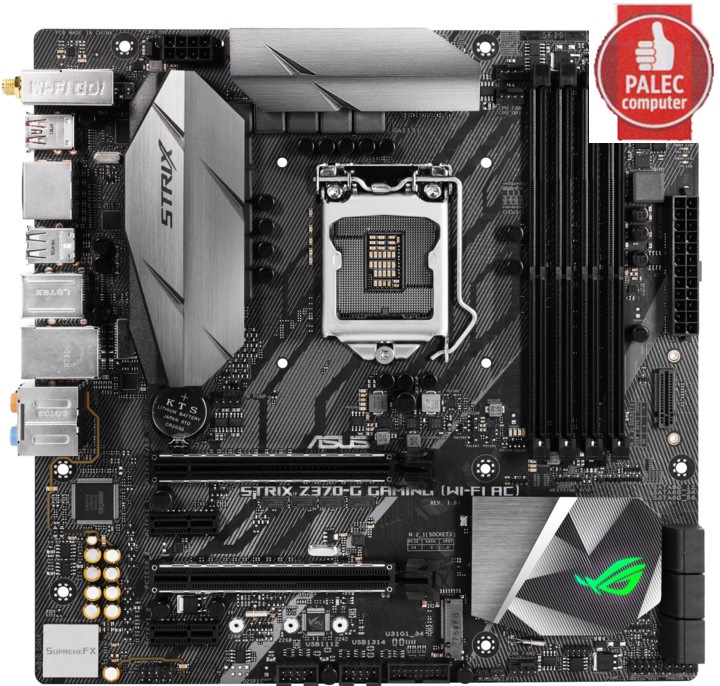

ASUS ROG STRIX Z370-G GAMING(WI-FI) | 90MB0VZ0-M0EAY0

Základní informace

*LGA1151 socket pro procesory 8th-gen Intel® Core™
*Aura Sync RGB: Synchronize LED lighting
*5-způsobu optimalizace pro co nejlepší herní zážitek
*Herní konektivita: Intel® Gigabit Ethernet, LANGuard, GameFirst and 2x2 802.11ac Wi-Fi with MU-MIMO podpora.
*Herní audio: SupremeFX S1220A teams s Sonic Studio III

Technické specifikace:
Formát: mATX (24, 4 x 24x4 cm )
CPU: Intel® Socket 1151 for 8th Generation Core™ Processors (turbo boost 2.0)
Čipová sada: Intel® Z370
Operační paměť: 4 x DIMM, max. 64GB DDR4 až 4000 MHz (přetakt.), NON-ECC, XMP
Lan: Intel® I219V/ Anti-surge LANGuard/ ROG GameFirst Technology
Bezdrátová síť: Wi-Fi 802.11 a/ b/ g/ n/ ac, Bluetooth V4.2
Zvuk: ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
Grafická karta: V závislosti na CPU

Úložný prostor:
-1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
-1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280/ 22110 storage devices support (PCIE 3.0 x 4 mode)
-6 x SATA 6Gb/ s port(s)
-Support Raid 0, 1, 5, 10
-Intel® Optane™ Memory Read

Rozšiřující sloty:
-2 x PCIe 3.0/ 2.0 x16 (x16 or dual x8)
-2 x PCIe 3.0/ 2.0 x1

Externí porty:
-1 x PS/ 2 keyboard/ mouse combo port(s)
-1 x DisplayPort
-1 x HDMI
-1 x LAN (RJ45) port(s)
-2 x USB 3.1 Gen 2 Type-A
-2 x USB 2.0
-4 x USB 3.1 Gen 1
-1 x Optical S/ PDIF out
-5 x Audio jack(s)
-1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/ b/ g/ n/ ac and Bluetooth v4.2)

Interní porty:
-1 x AAFP connector
-1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
-2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
-1 x M.2 Socket 3 with M key, type 2242/ 2260/ 2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
-1 x M.2 Socket 3 with M key, type 2242/ 2260/ 2280/ 22110 storage devices support (PCIE 3.0 x 4 mode)
-6 x SATA 6Gb/ s connector(s)
-1 x CPU Fan connector(s) (1 x 4 -pin)
-1 x CPU OPT Fan connector(s) (1 x 4 -pin)
-2 x Chassis Fan connector(s) (2 x 4 -pin)
-1 x W_PUMP+ connector (1 x 4 -pin)
-1 x 24-pin EATX Power connector(s)
-1 x 8-pin ATX 12V Power connector(s)
-1 x Thermal sensor connector(s)
-1 x Clear CMOS jumper(s)
-1 x System panel connector
-1 x CPU_OV jumper

Příslušenství:
-User s manual
-1 x Vertical M.2 bracket set
-I/ O Shield
-4 x SATA 6Gb/ s cable(s)
-1 x M.2 Screw Package
-1 x CPU installation tool
-1 x Supporting DVD
-1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/ b/ g/ n/ ac compliant)
-1 x Strix door hanger
-1 x SLI HB BRIDGE(2-WAY-S)
-1 x Cable ties pack(s)
-1 x Thermistor cable(s)
-1 x STRIX series sticker
-1 x CPU Fan Holder

Bios: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.8, ACPI 6.0...

Více na stránkách https:/ / www.asus.com/ ROG-Republic-Of-Gamers/ ROG-STRIX-Z370-G-GAMING-WI-FI-AC/ specifications/
